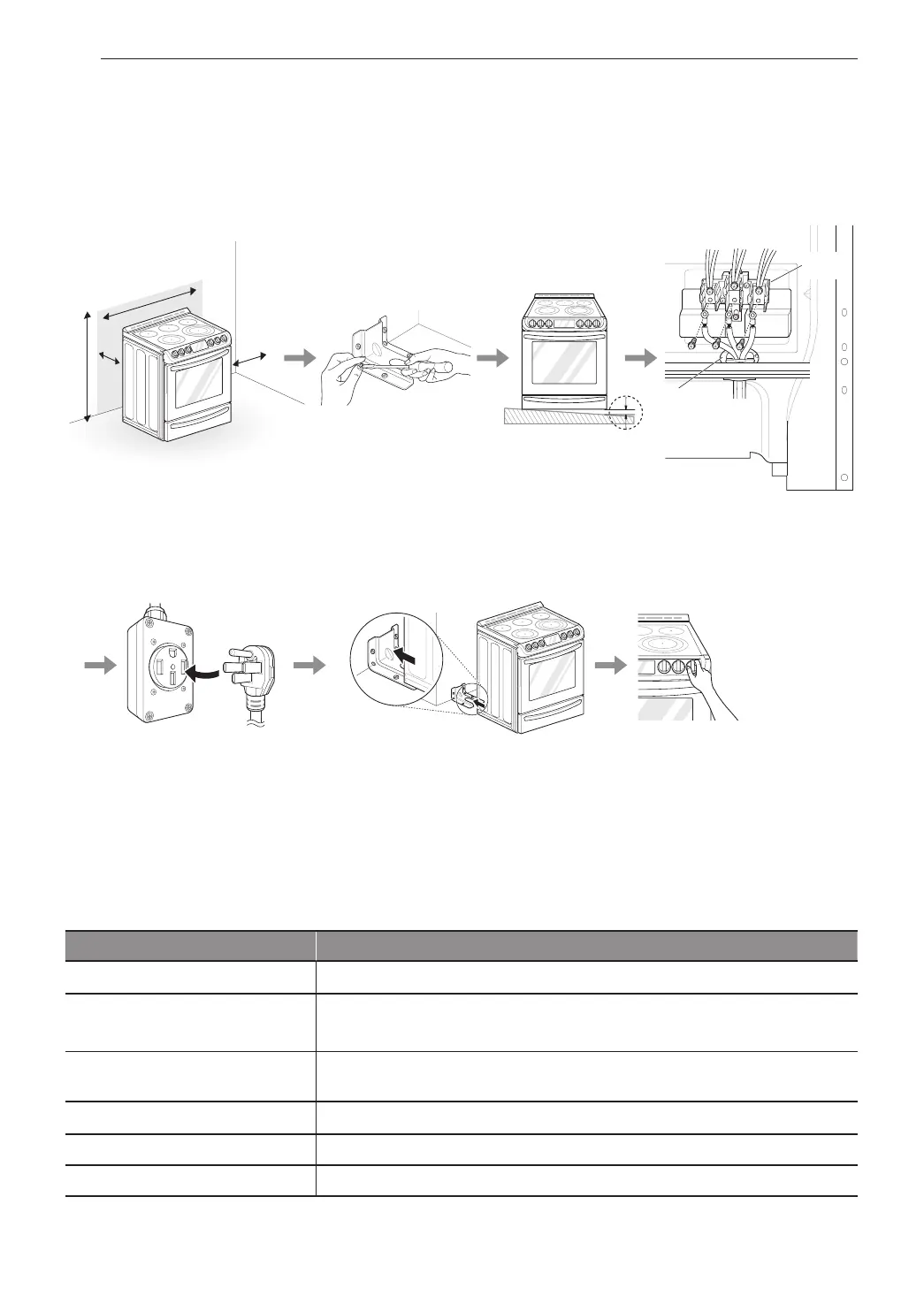

Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to another
location.
Check and choose the
proper location
Plug in the power cord Engage the anti-tip device Test run
Install anti-tip device Level the range Connect electric range
Conduit
connection
plate
Black White Red
Terminal
block
240 V or 208 V
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Oven Range Models LSE4613, LSE4611
Description Electric Slide In Oven Range
Electrical requirements
LSE4613 : 13.5 kW 120/240 VAC or 10.1 kW 120/208 VAC
LSE4611 : 12.6 kW 120/240 VAC or 9.5 kW 120/208 VAC
Exterior Dimensions
29
7
/
8
"
(W) x 37
7
/
8
"
(H) x 26
1
/
2
"
(D) (D with door closed)
75.7 cm (W) x 96 cm (H) x 67.3 cm (D) (D with door closed)
Height to cooking surface 36
"
(91.4 cm)
Net weight 176 lb (80.0 kg)
Total capacity Total cap.: 6.3 cu. ft.
