LG LSEL6335D User Manual

16 INSTALLATION
Specified Power Cord Kit Rating
Case 1
• Voltage: 120/240 volts (3-wire)
• Range rating: 8,750 W - 16,500 W
• Specified rating of power supply-cord kit,
amperes: 40 A or 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/8"
- Conduit: 1 1/8"
Case 2
• Voltage: 120/240 volts (3-wire)
• Range rating: 16,501 W - 22,500 W
• Specified rating of power supply-cord kit,
amperes: 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/4"
- Conduit: 1 3/8"
Case 3
• Voltage: 120/208 volts (3-wire)
• Range rating: 7,801 W- 12,500 W
• Specified rating of power supply-cord kit,
amperes: 40 A or 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/8"
- Conduit: 1 1/8"
Case 4
• Voltage: 120/208 volts (3-wire)
• Range rating: 12,501 W - 18,500 W
• Specified rating of power supply-cord kit,
amperes: 50 A
• Diameter (inches) of range connection opening
- Power cord: 1 3/4"
- Conduit: 1 3/8"
3, 4 - Wire Electrical Wall Receptacle
Connecting the Power Cord /
Conduit

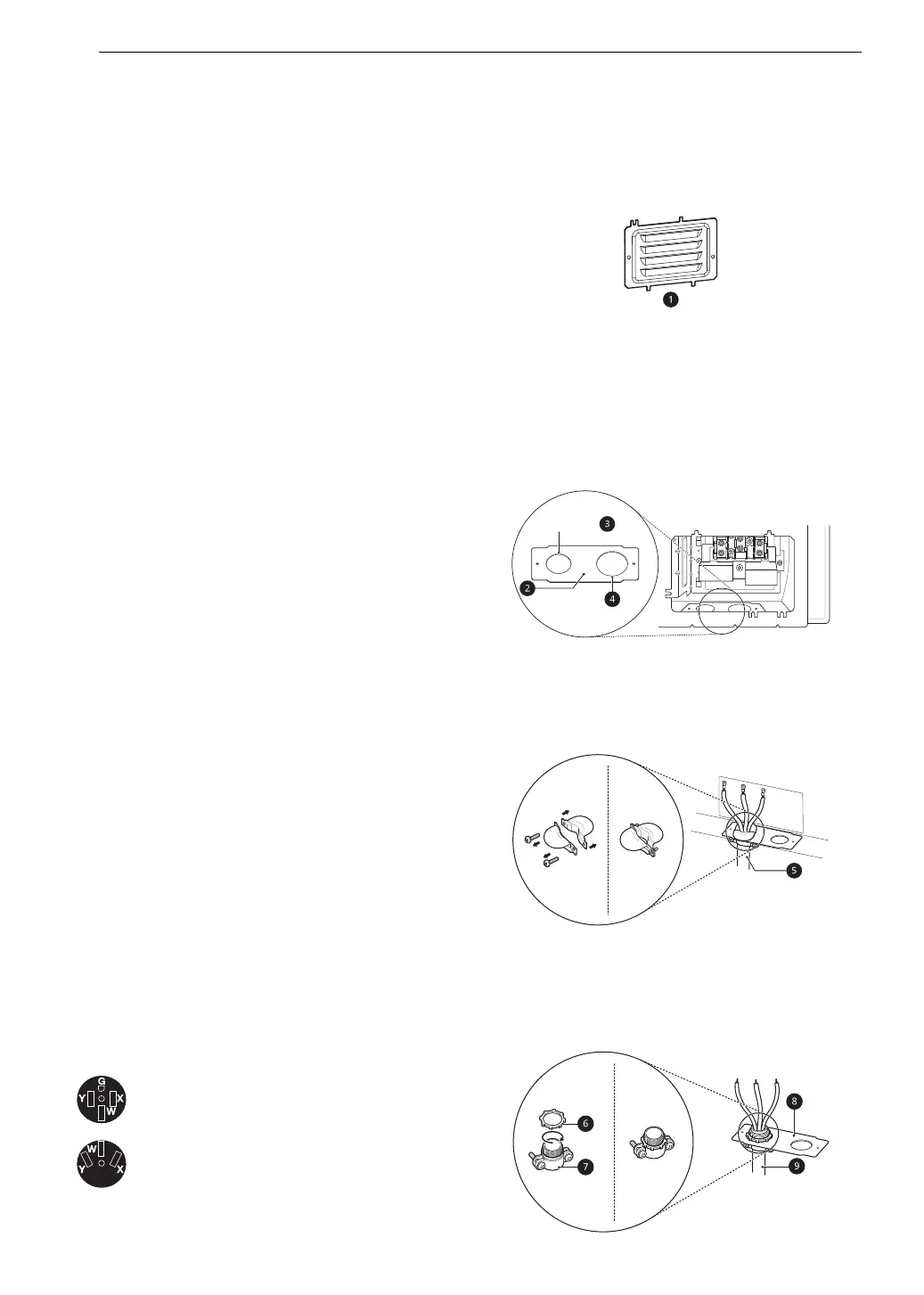

The rear access cover a must be removed. Loosen
the two screws with a screwdriver. The terminal
block will then be accessible.
Use the cord/conduit connection plate
b to install
the power cord or conduit. Leave the connection
plate as installed for power cord installations.
Remove the connection plate for conduit
installations and use the smaller 1 1/8 in. (2.8 cm)
conduit hole c instead of the 1 3/8 in. (3.5 cm)
power cord hole
d.
For power cord
e installations, hook the strain
relief over the 1 3/8 in. (3.5 cm) power cord hole
located below the rear of the oven. Insert the
power cord through the strain relief and tighten it.
For conduit installations, insert the conduit strain
relief in the 1 1/8 in. (2.8 cm) conduit hole. Then
install the conduit through the body of the strain
relief and fasten the strain relief with its ring.
4 Wire receptacle (14-50R)
3 Wire receptacle (10-50R)
1
1
/
8
" (2.8 cm)
1
3
/
8
" (3.5 cm)
us_main.book.book Page 16 Wednesday, February 3, 2021 9:14 AM

LG LSEL6335D Specifications

General

Style	storage (w/ handle)
Color	black stainless steel
Main Capacity	6.3 cu. ft.
Options	glass touch (smoothtouch™)
Cooking Programs	bake, conv. bake, conv. roast, broil high, broil low, warm, proof, frozen meal, air fry, slow cook, easyclean, selfclean
Temperature Probe	no
Convection	yes
Number of Burners	5
Number of Racks	3
Control Type	knobs; touch sensor; front tilt-control knobs; glass touch
Interior Light	yes
Remote Control	yes
Smart Home	smartthinq, google assistant, amazon alexa
Wi-Fi	yes
Power Consumption	4, 200
Fuel	electric
Voltage	240/208 volts
Current	40

Weight and Dimensions

Depth	29 3/32 inch
Height	36 1/2 inch
Width	30 inch
