LG LSW240B User Manual

4

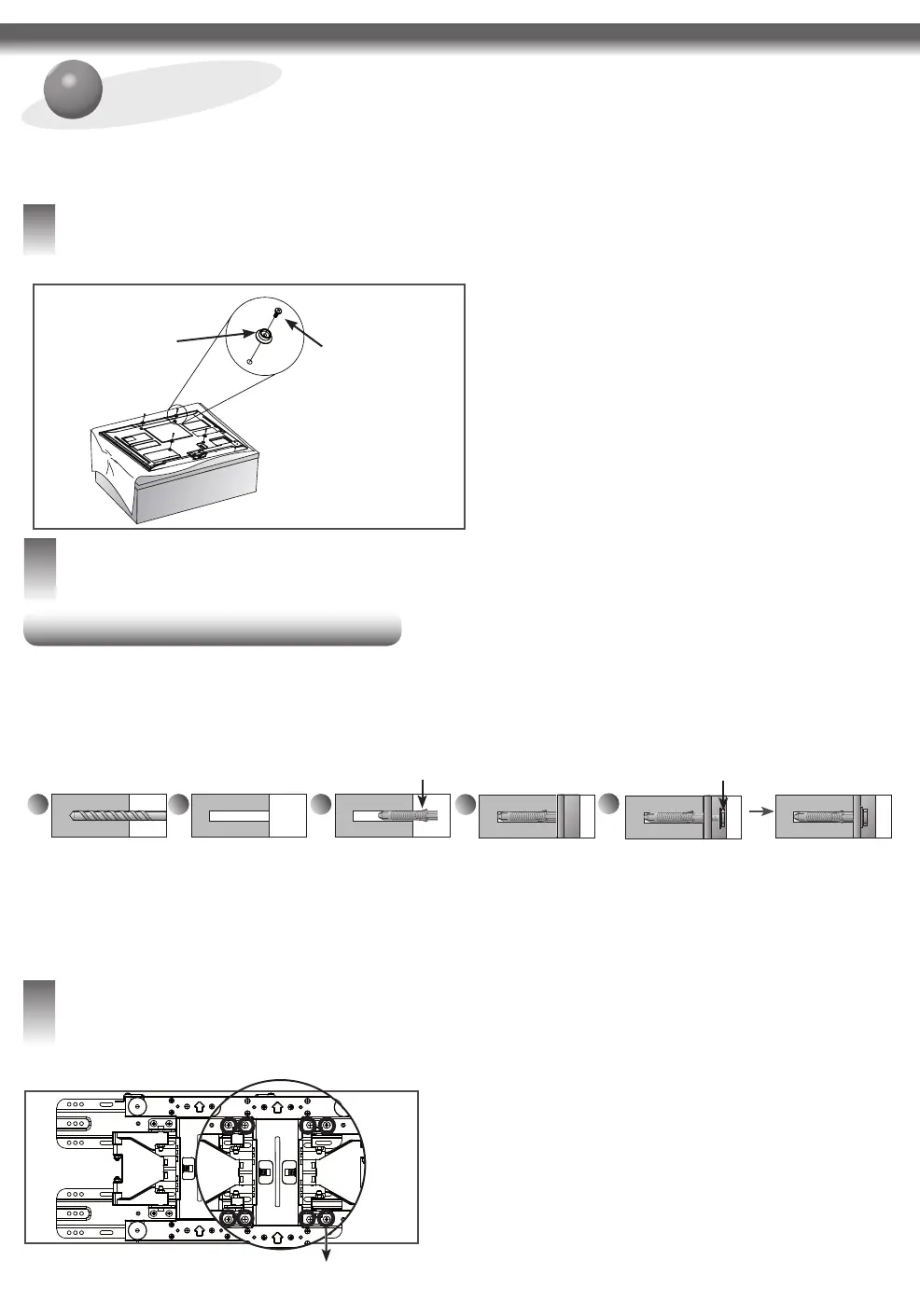

INSTALLATION METHOD
1
Attach the mounting bracket to the TV
- If the screw will not fully tighten when using a guide spacer, recheck the assembly depth of the screw and
refer to the technical service manual.
- The actual product may differ from the picture.
<Work procedure>
1. Check to see if the display has screws installed into the
mounting holes. If so, remove those.
2. Assemble the guide spacer and the guide spacer screw in
order as shown in the picture.
- Assemble the guide spacer to the set by tightening the
screws.
- Tighten the screw until the set, guide spacer and the screw
are fully pressing against one another.
- Use a Phillips Head driver (Manual or motorized) when
tightening the screws.
3
How to install the wall mount
<When installing on a masonry wall>
- When you separate the 8 screws on the wall mount connected to the wall bracket for use with a wooden wall, it is much
easier to install the product.
→ When installing the product on a masonry wall, turn the 8
screws on the A part counterclockwise to separate the
screw and bracket.
→ After aligning the wall bracket to the location to install,
mark the part to screw on the wall and then remove the
wall bracket.
→ Refer to page 4 to attach the wall bracket.
→ Use a level to check whether the wall mount is level.
Separate the wall mount screw.
2
How to attach to masonry walls
- Check the material and thickness of the wall.
- Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry brick and hallow
block that do not crack.
- When installing the product on a wooden wall, refer to page 5.
- When installing the product on wall material not designated, install the product so that each fixated location can withstand a pull
out load of 70 kgf (686 N) and shear load of 100 kgf (980 N) or above.
- Use the Ø 8 mm drill bit for concrete and hammer (Impact) drill.
Please follow the below direction.
a. Use a drill bit Ø 8 mm to drill a hole for the anchor location within a depth of 80 mm to 100 mm
b. Clean the drilled hole.
c. Insert the sealed anchor into the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
e. Align the wall mount bolts to the holes and tighten them by hand.
Then, fasten the bolts at a torque of 45 kgf/cm to 60 kgf/cm.
Wall mount screwAnchor
- Tools you will need - Phillips head + driver (manual or motorized) / 8 mm socket wrench / Level / Stud finder / Drill.
You may also need an Ø 4 mm drill bit for wood (or steel) or an Ø 8 mm drill bit for concrete.
a
b
d
e
c
Guide spacer
screw
Guide spacer
A

LG LSW240B Specifications

General

Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum screen size	43 \
Minimum screen size	32 \
Maximum weight capacity	- kg
Tilt angle range	-12 - 12 °
Product color	Silver

Weight and Dimensions

Depth	20 mm
Width	460 mm
Height	225 mm
Weight	3200 g
