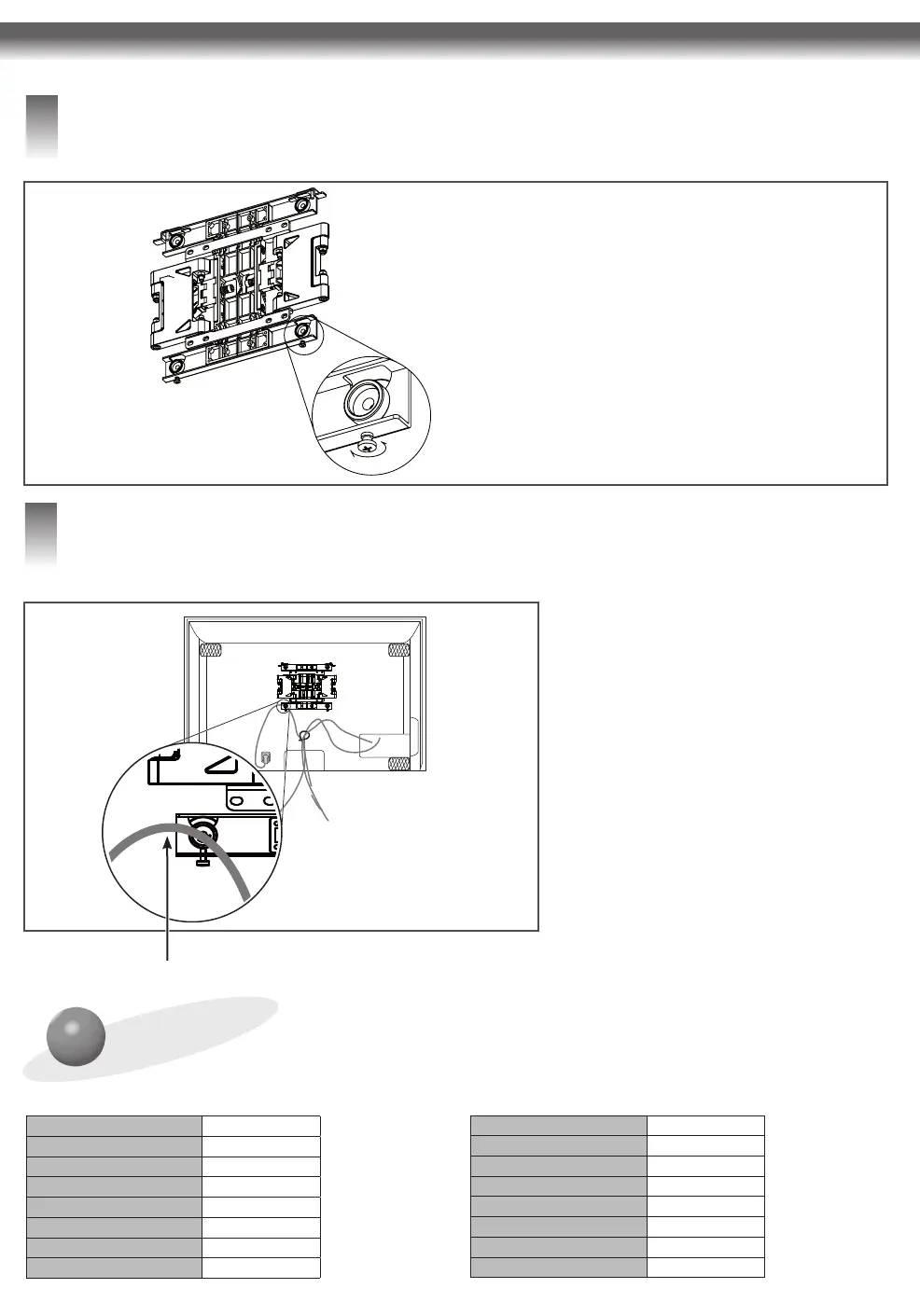

How to level the Display
- After installing the display, check to make sure it is level.
(The wall mount has two screws that make minor adjustments to the level.)
6
Cable arrangement and set protection cushion
- Arrange the cables as shown in the picture. Use some type of cable banding device to hold all the cables together.
- Attach the set protection cushion to mitigate the impact between the wall and the set when adjusting the angle. Attach the
set protection cushion as shown in the picture.
PRODUCT SPECIFICATION
<With the bracket removed.> <With the bracket attached.>
The display panel on Cinema Screen models (LM64**, LM66**, LM67**, LM76**, LM86**, LA66**, LA69**, LA74**, LA79**,
LA86**) can be easily damaged by pressure or shock. Please handle the product with care. For more information, please refer
to the owner's manual of the TV.
± 5 mm (Leveling)
Avoid crushing the power cord and the cables between the wall mount and the wall.
Model Name LSW240B
Width (mm) 460
Height (mm) 225
Depth (mm) 20
Weight (kg) 3.2
Weight with packing (kg) 3.9
Wall Mount VESA Specification 200 X 200
Max.UL Load Capacity (kg) 40
Model Name LSW240B
Width (mm) 281
Height (mm) 234
Depth (mm) 14
Weight (kg) 1.5
Weight with packing (kg) 2.2
Wall Mount VESA Specification 200 X 200
Max.UL Load Capacity (kg) 40

LG LSW240B Specifications

General

Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum screen size	43 \
Minimum screen size	32 \
Maximum weight capacity	- kg
Tilt angle range	-12 - 12 °
Product color	Silver

Weight and Dimensions

Depth	20 mm
Width	460 mm
Height	225 mm
Weight	3200 g
