5
ENGLISH
2
a
b
d e
c
How to attach to masonry walls
- Check the material of the wall and the thickness of the finishing.
- When installing the product on the wooden wall, refer to page 7.
- When installing the product on wall material not designated, install the product so that each fixated location
can withstand the pull out load of 70kgf (686N) and shear load of 10kgf (980N) or above.
- Use the Ø8mm drill bit for concrete and hammer (Impact) drill.

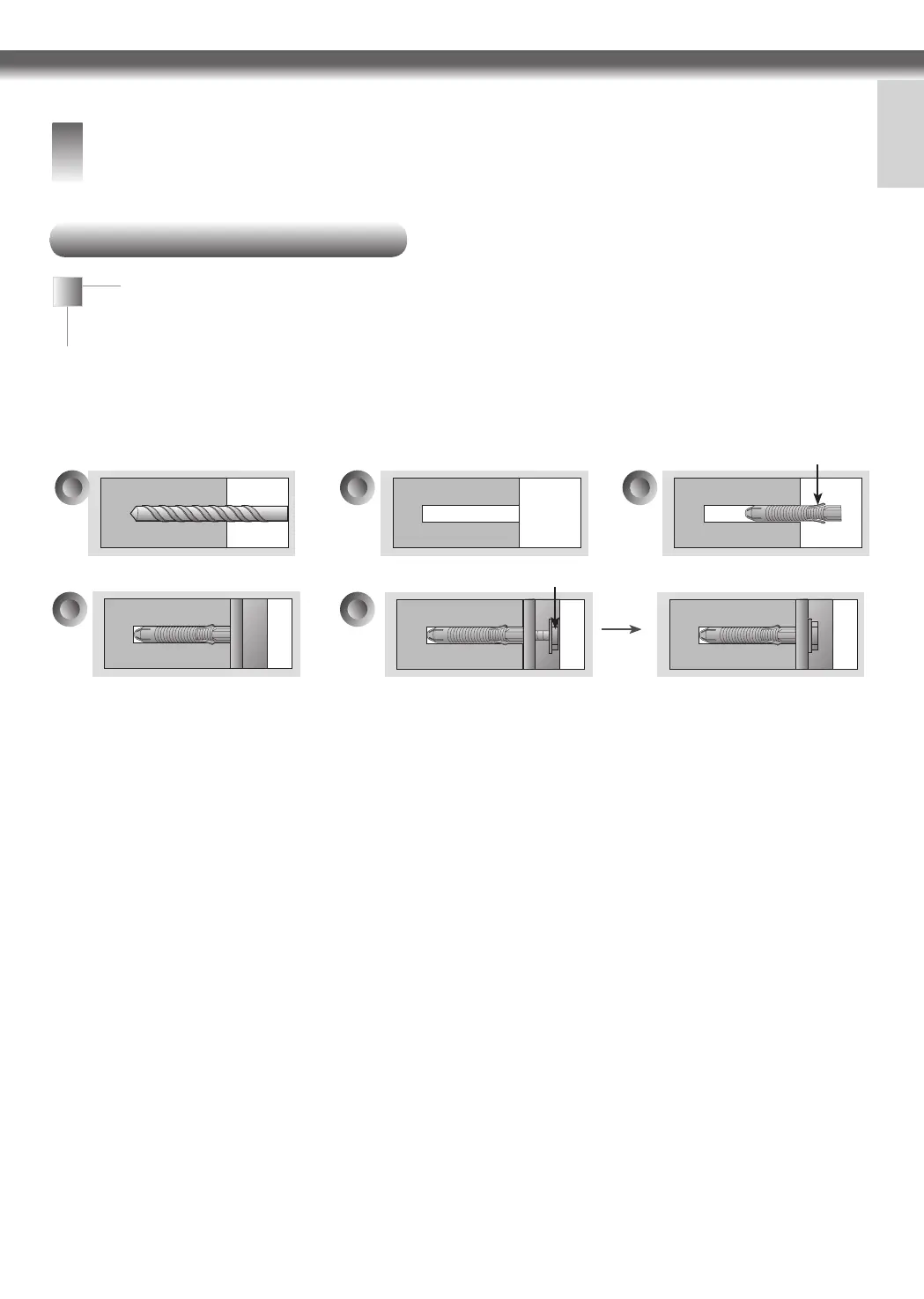

Please follow the below direction.
a. Use a drill bit Ø8mm to drill a hole for the anchor location within a depth of 80mm ~ 100mm
b. Clean the drilled hole.
c. Insert the sealed anchor to the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
e. Align the wall mount bolt to the hole and tighten it. At this time, the bolt must be tightened with torque of 45kgf/cm
or above.
Wall mount screw
Anchor
- Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry
brick and hallow block that do not crack.
To Next Page
