How to level the Display
After installing the display, check to make sure it is level.
The wall mount has two screws that make minor adjustments to the level.
± 10mm
(horizontal adjustment)
4

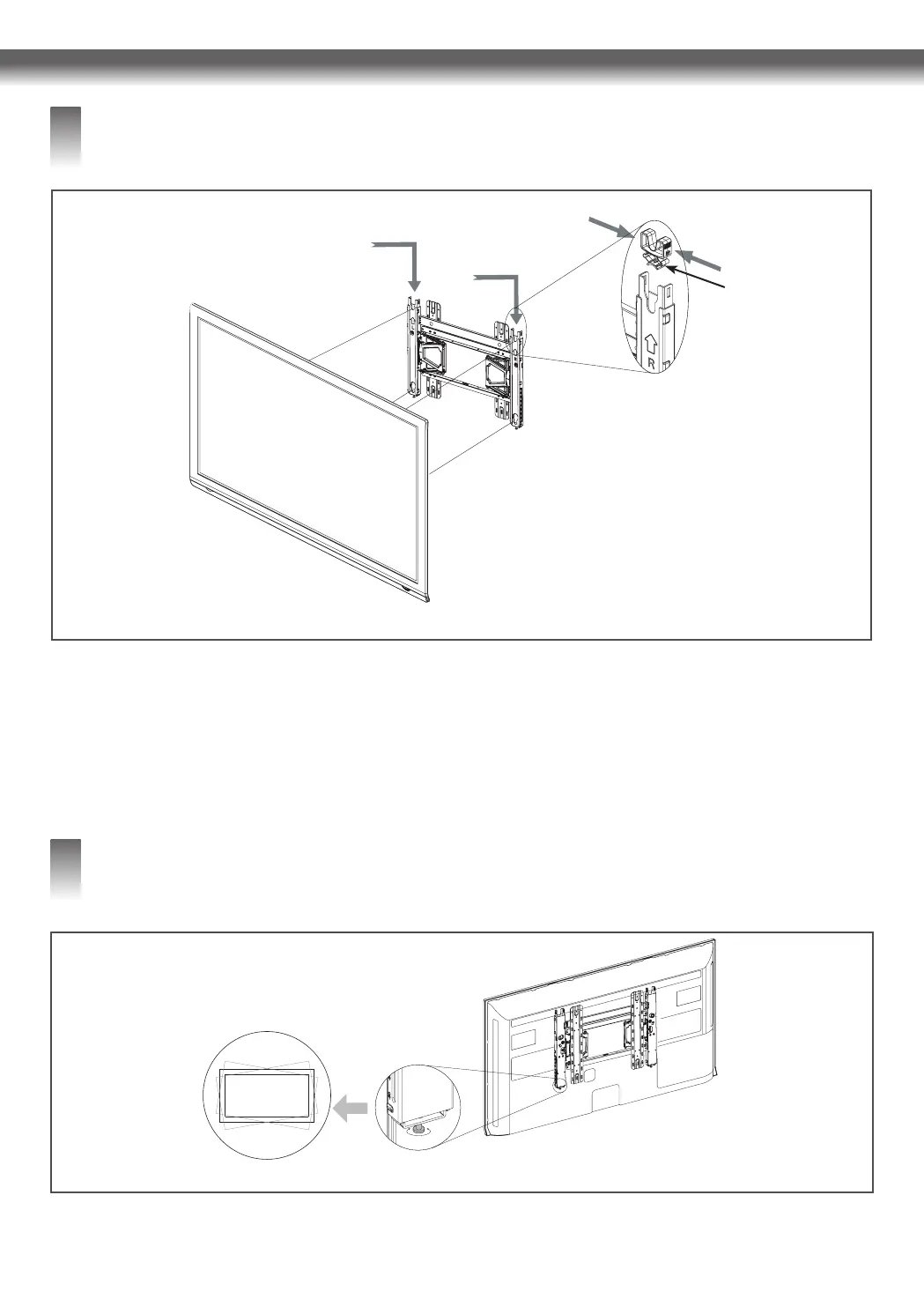

1. Set the display with the guide spacer assembled on the wall mount bracket on the wall in arrow direction.
At this time, align the bottom assembly part and lift the set up lightly to align the top part.
2. When adjusting the horizontal level, use the safety ring provided by pressing it slightly to in the direction as
illustrated. There is a risk of the product falling when the safety ring is not used as shown in the illustration.
Pull the bottom of the TV/Monitor to affirm that it is firmly fixed.
See A above,be sure to lift a product/speakers assembly by the product only, do not lift using only the speakers.)
When installing a display rotated, only rotate the display 90 degrees (portrait mode). (Only applies for VESA
200x200, 400x400)
How to assemble the wall mount support and display
- Always install the display with 2 or more people.
Safety clip
