LG LSXC22396S - Page 37

CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
( P/N EBR809775**)
Symptom Check Point
1. E FS 1. Check for a loose connection
2. Check Sensor Resistance
Resistance [Ω]
CON8
23
th
pin ~ 24
th
pin
Short 0
Open OFF
Other Normal
CON8
23
th
pin ~ 24
th
pin
Resistance [Ω]
-22ºF / -30ºC 40k
-13ºF / -25ºC 30k
-4ºF / -20ºC 23k
5ºF / -15ºC 17k
14ºF / -10ºC 13k
23ºF / -5ºC 10k
32ºF / 0ºC 8k

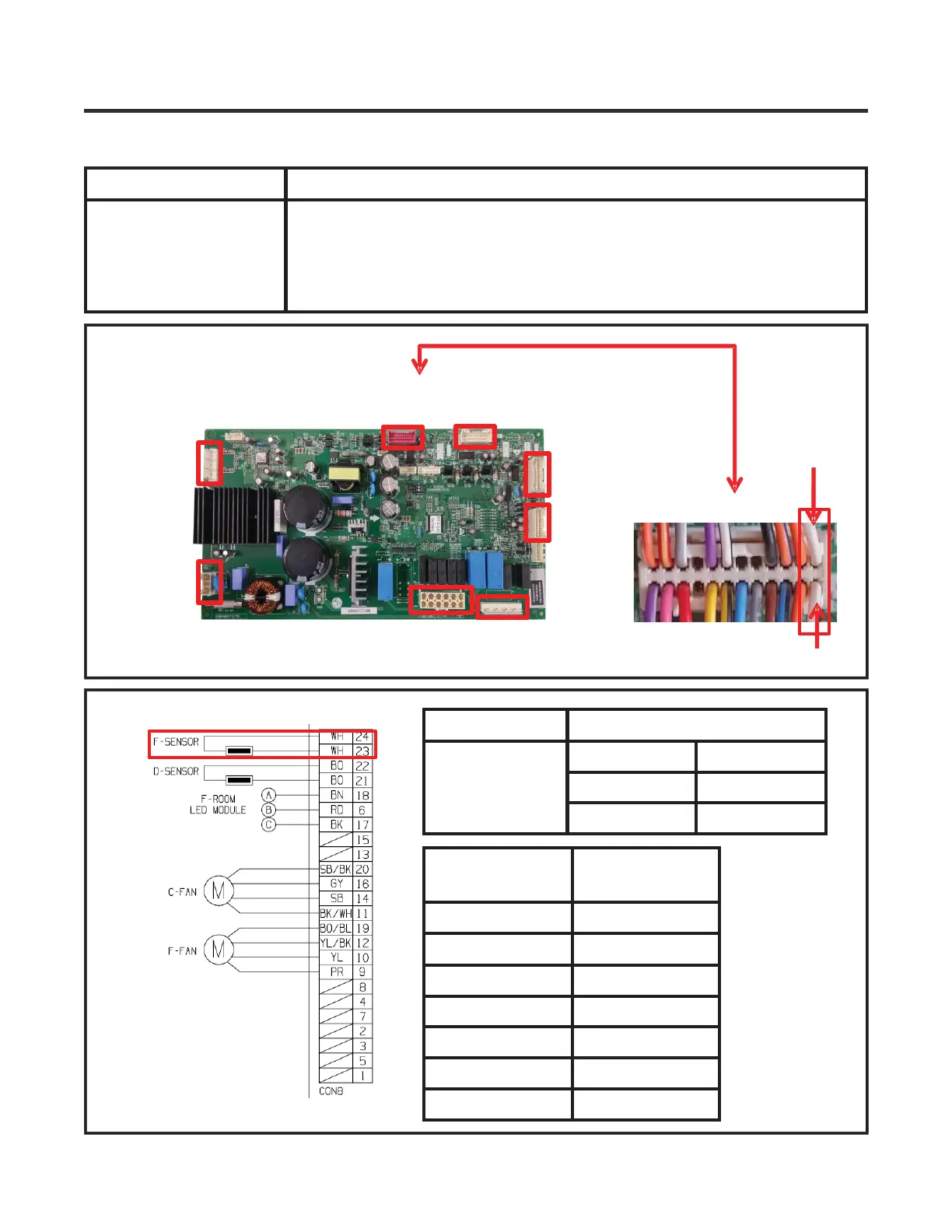

1. Freezer Sensor Error
Troubleshooting with Error Display
38
