LG LSXC22396S - Refrigerator Sensor Error

Troubleshooting

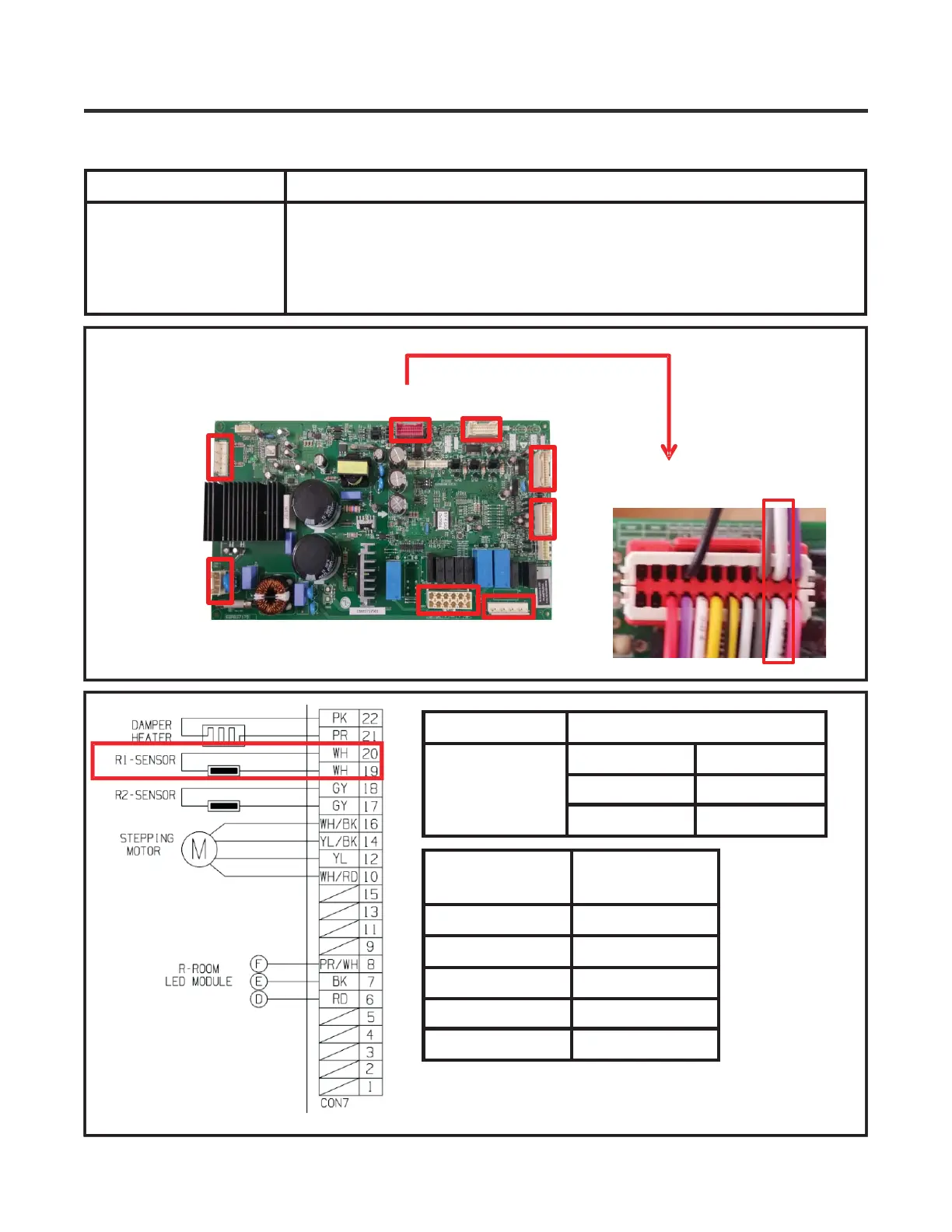

2. Refrigerator Sensor Error (E rS)
( P/N EBR809775**)
Symptom Check Point
1. E rS 1. Check for a loose connection
2. Check Sensor Resistance
Resistance [Ω]
CON7
19
th
pin ~ 20
th
pin
Short 0
Open OFF
Other Normal
CON7
19
th
pin ~ 20
th
pin
Resistance [Ω]
23ºF / -5ºC 38k
32ºF / 0ºC 30k
41ºF / 5ºC 24k
50ºF / 10ºC 19.5k
59ºF / 15ºC 16k
40
CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
