LG LSXC22396S - Defrost Sensor Error

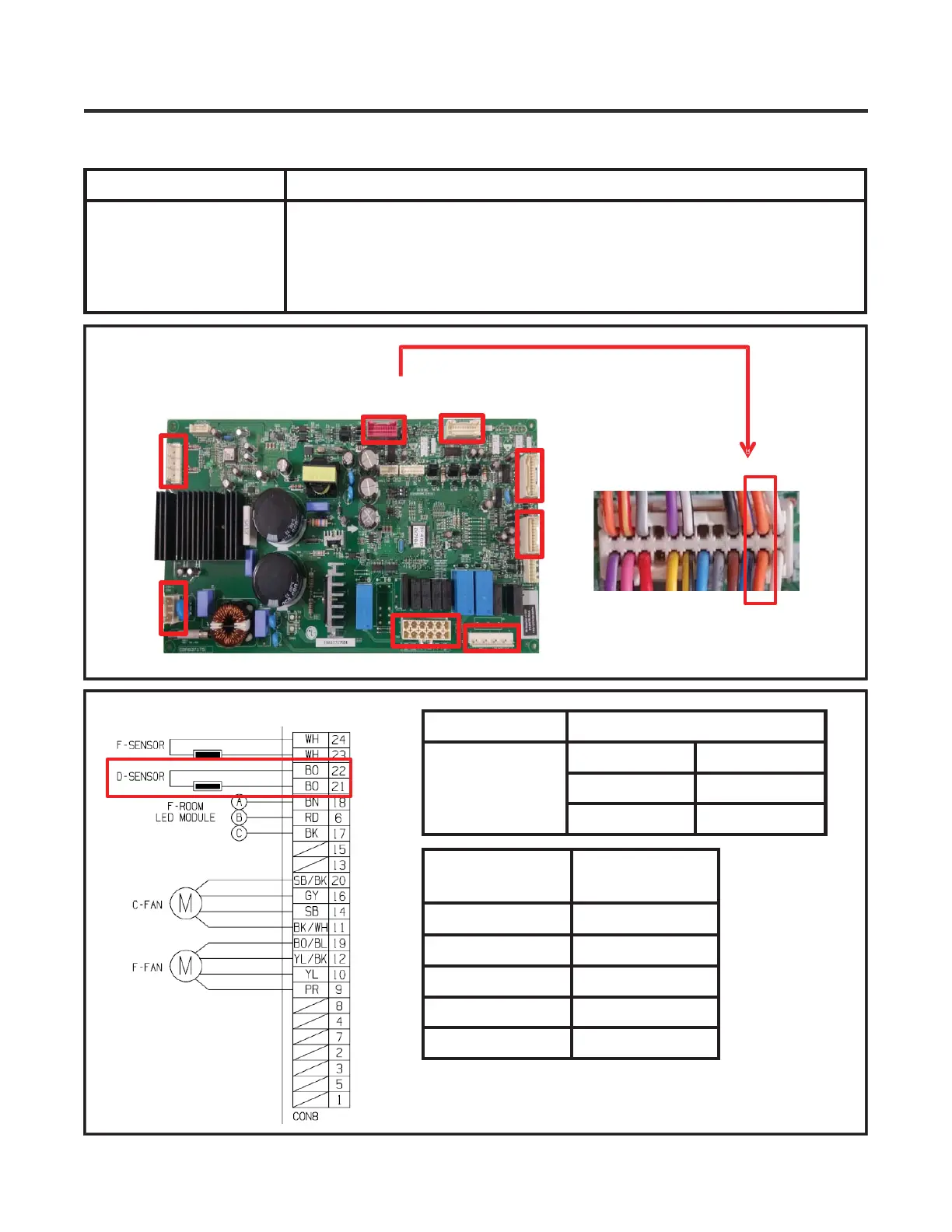

5. Defrost Sensor Error
Symptom Check Point
1. F dS 1. Check for a loose connection
2. Check Sensor Resistance
Resistance [Ω]
CON8
21
th
pin ~ 22
th
pin
Short 0
Open OFF
Other Normal
CON8
21
th
pin ~ 22
th
pin
Resistance [Ω]
23ºF / -5ºC 38k
32ºF / 0ºC 30k
41ºF / 5ºC 24k
50ºF / 10ºC 19.5k
59ºF / 15ºC 16k
( P/N EBR809775**)
48
CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
