LG LSXC22396S - Troubleshooting Without Error Display

1. Cube mode doesn’t work
Symptom Check Point
1. Cube mode
doesn’t work

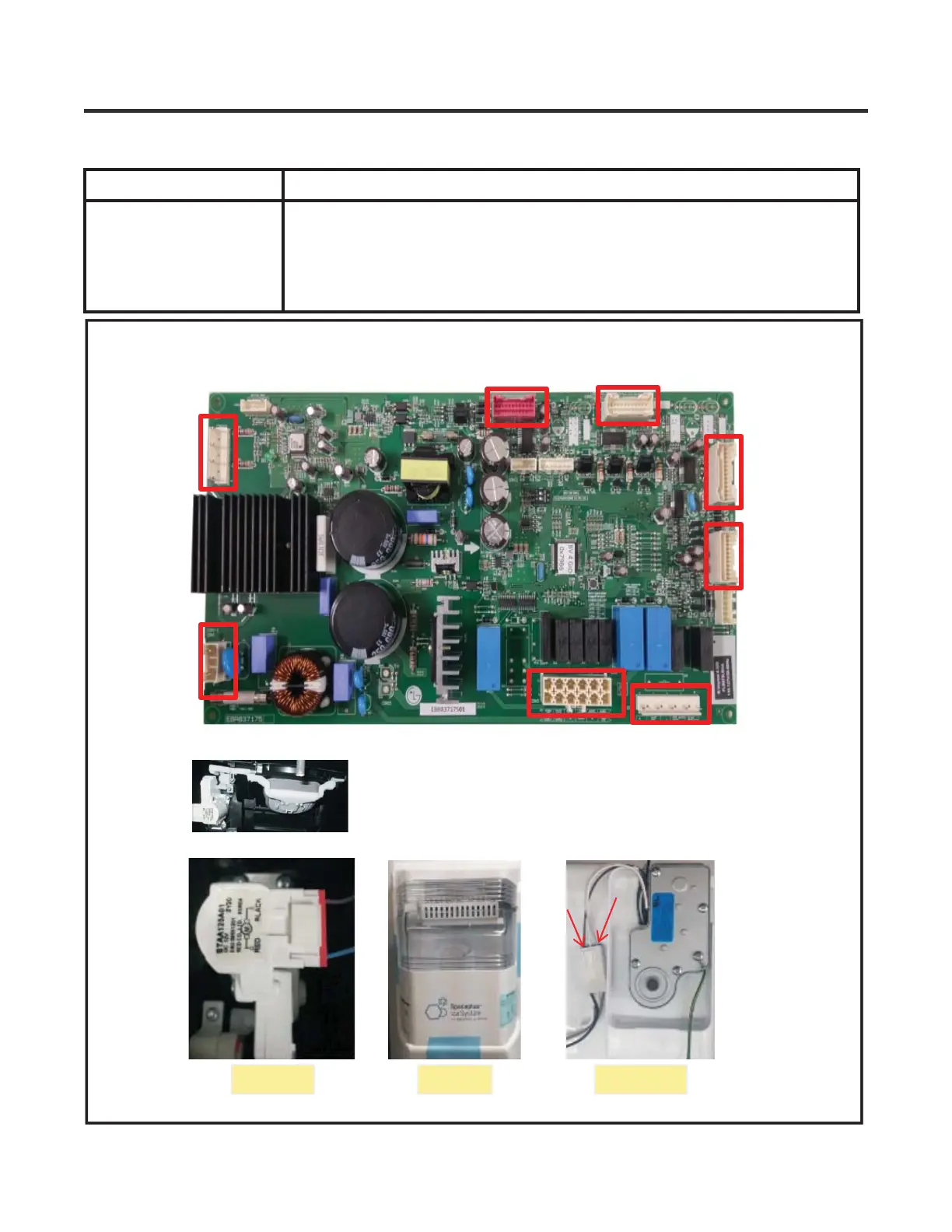

1. Check the loose connection
2. Check the resistance
( P/N EBR809775**)
Auger MotorIce MakerDuct Motor
Troubleshooting without Error Display
59
CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
