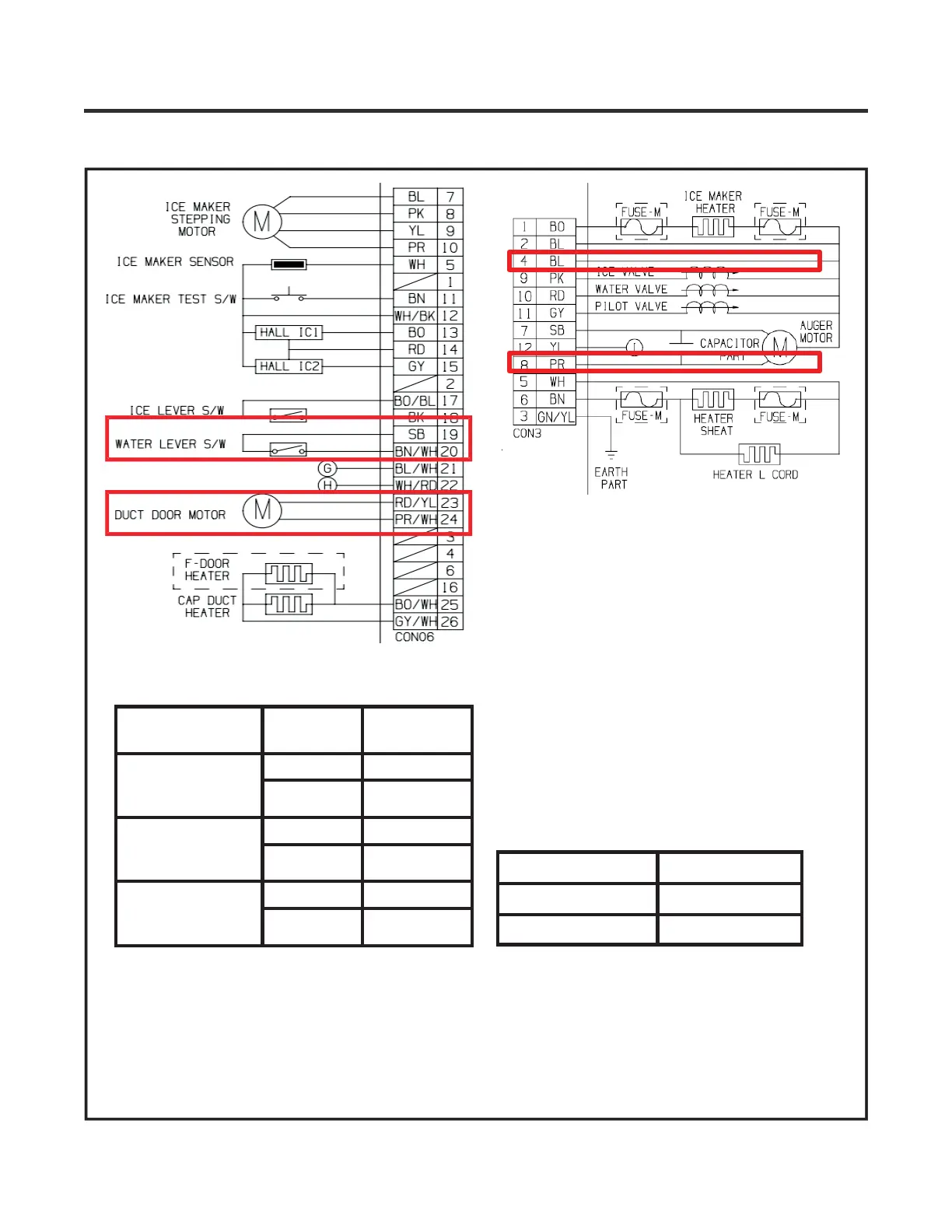

1. Cube mode doesn’t work
INSPECTION POINT
ICE / Water
LEVER S/W
5HVXOW
ICE/Water Lever SW
CON6
19
th
pin ~ 20
th
pin
Pushing 0~2V
Not Pushing 3.5~5V
Duct Motor
CON6
23
th
pin ~ 24
th
pin
Pushing 9~12V
Not Pushing 0~2V
Auger Motor
CON3
4
th
pin ~ 8
th
pin
Pushing 112~115V
Not Pushing 0~2V
Motor Type Resistance [Ω]
Auger Motor 33~ 37
Duct Motor 9.9 ~ 12.1
