LG LSXC22396S - Fan and Motor Disassembly Method

How to disassemble and assemble

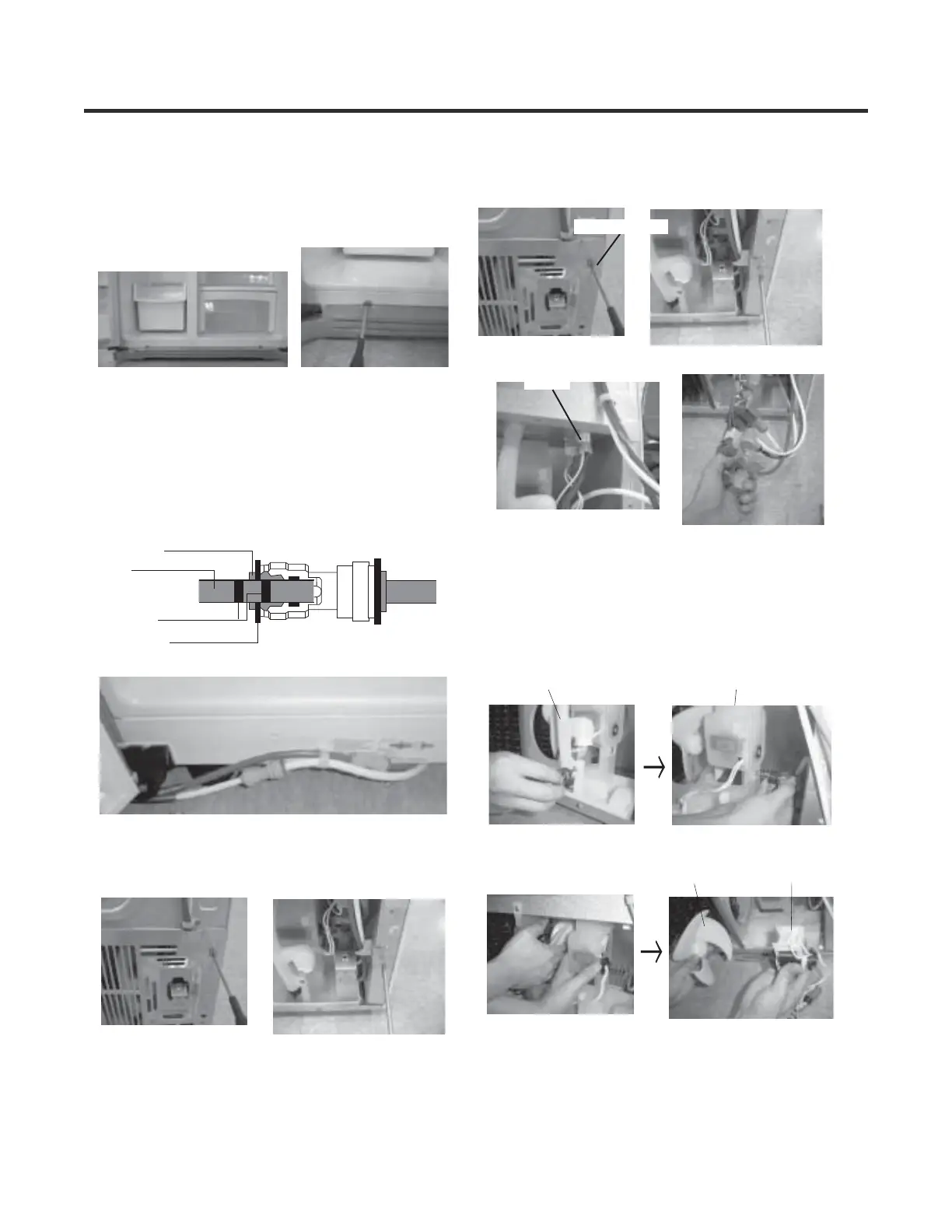

4.WATER VALVE DISASSEMBLY
METHOD
5.FAN AND FAN MOTOR DISASSEMBLY
METHOD
1)Turn off the power of the refrigerator (pull out the plug).
Open the FREEZER and REFRIGERATOR Door and
disassemble the Lower Cover.
2)Lay a dry towel on the floor and get ready to spill water
from the water tank.
Pull out the Clip. Then press the collet to separate the
tube from the connector and pour out the water until
emptied.
(Refer to the label attached on Front L on how to
separate the tube.)
4)Separate the Mechanical Cover and Valve Screw.
3)Turn off the water. Then separate the water line from the
valve.
Collet
5)Separate the housing and pull out the valve.
1)Using a short screwdriver, loosen one SCREW in
DRAIN PIPE ASSEMBLY and one connected to the
MOTOR COVER.
2)Pull and separate the FAN ASSEMBLY and MOTOR
turning counterclockwise based on the MOTOR SHAFT.
Mechanical Cover
Tube
Insert Line
Clip
Housing
DRAIN PIPEASSEBLY
MOTORCOVER
MOTORFAN ASSEMBLY
The assembly is in the reverse order of the disassembly
and take special care for the following details.
1.Be careful not to bend the tube during assembly.
2.Press the WATER DISPENSER button until water pours
out and check for leakage in the CONNECTOR TUBE (It
differs by the water pressure but usually takes about 2
minutes until water pours out.)
84
