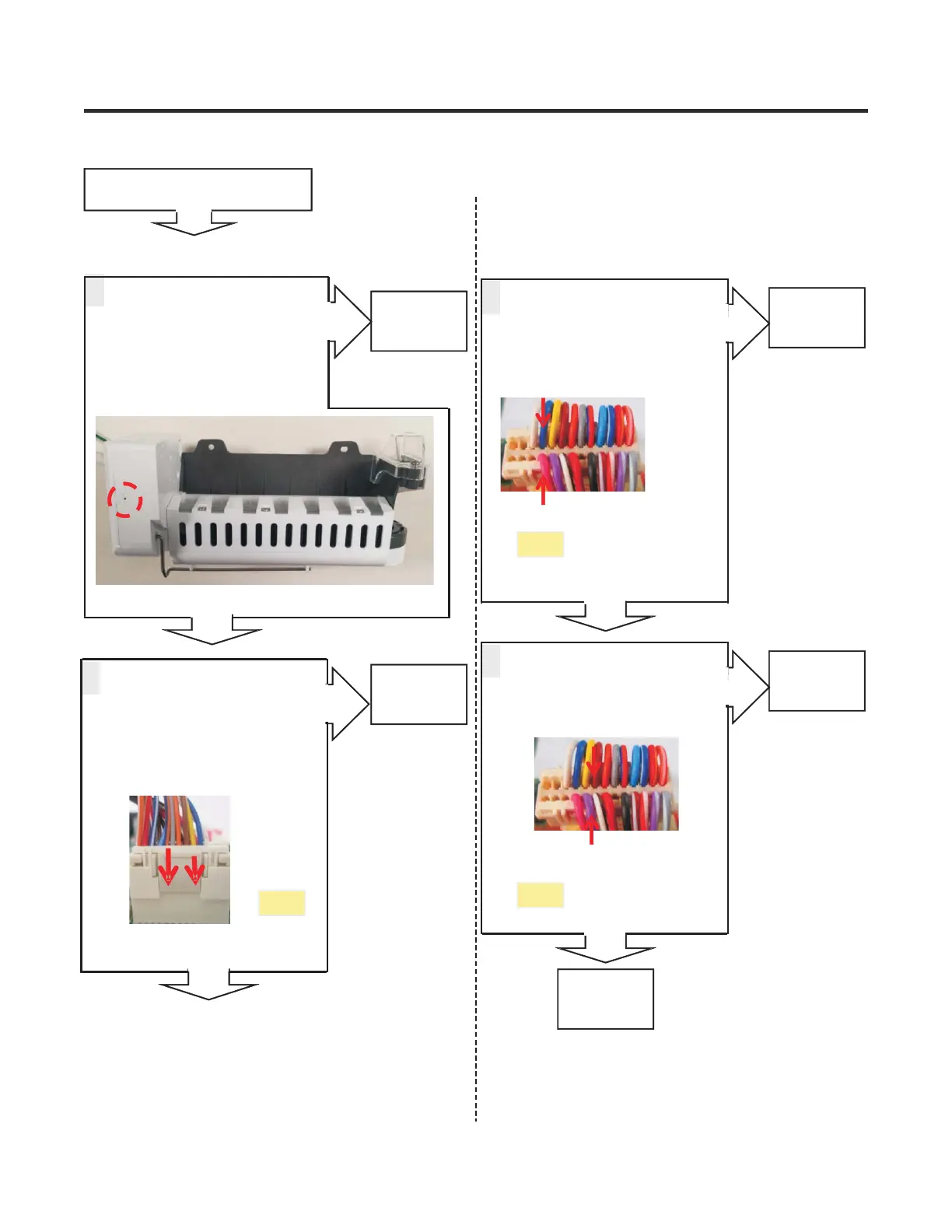

Ice Maker Motor Error ( E It)
1
Explain to
customer
Input Ice Maker test mode(Push
The ice maker test button),check
The Ice Tray,Ice maker motor
Rotate? Wait until 1 minute
Yes
No
2
Yes
3 Disconnect housing of Main PCB
And check resistance between
Pink and blue wires. Is Motor
resistance 374~456
No
Change the
ICE Maker
Unit
CON6
Is the Connector disconnected
or loose between Main PCB and
ICE Maker?
Reconnect or
repair the
connector
No
Yes
Disconnect housing of Main PCB
And check resistance between
Purple and yellow wires. Is Motor
resistance 374~456
No
Change the
ICE Maker
Unit
Yes
Change the
Main PCB
CON6
CON6
