Troubleshooting

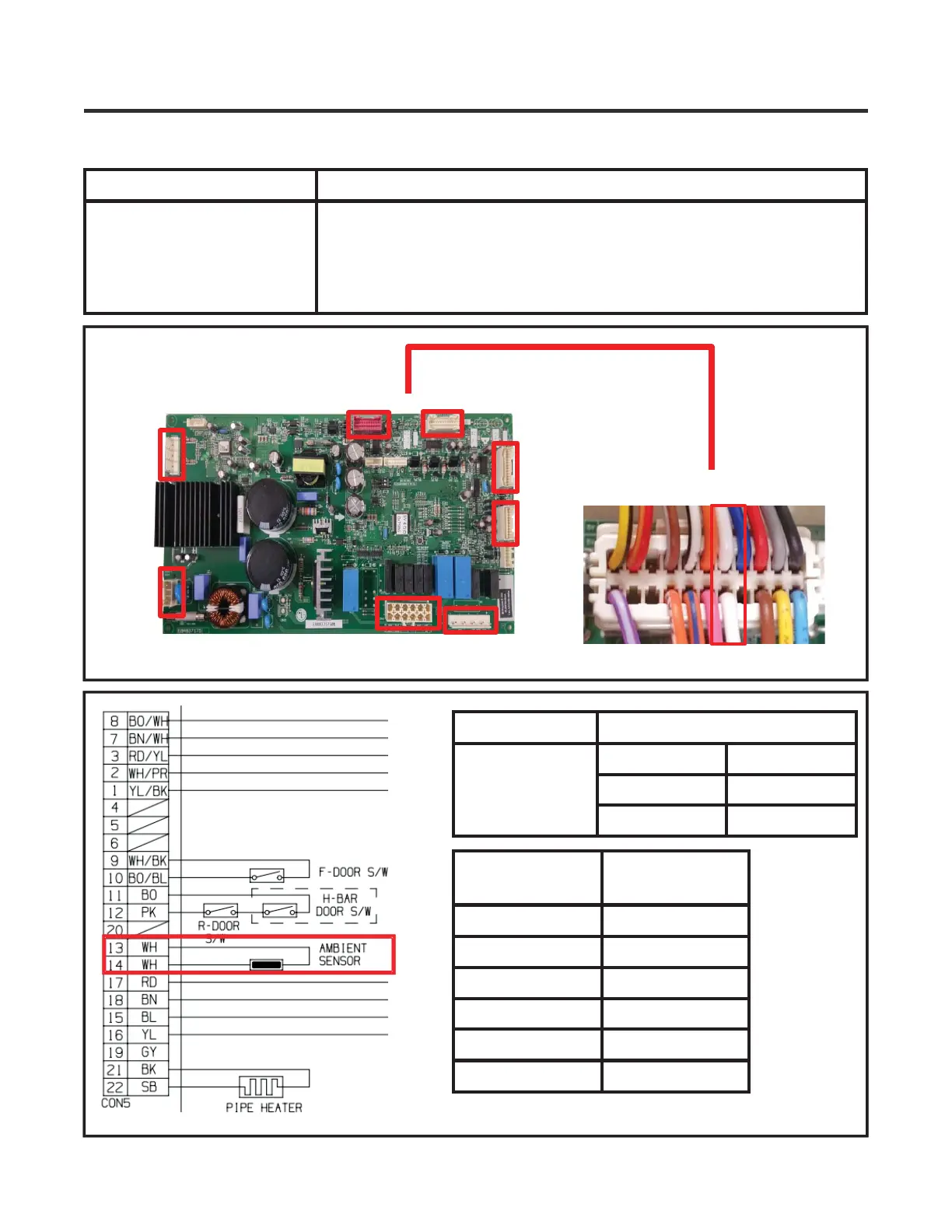

3. Room T emperature Sensor Error
Symptom Check Point
1. E rt 1. Check for a loose connection
2. Check Sensor Resistance
Resistance [Ω]
CON5
13
th
pin ~ 14
th
pin
Short 0
Open OFF
Other Normal
CON5
13
th
pin ~ 14
th
pin
Resistance [Ω]
32ºF / 0ºC 30k
50ºF / 10ºC 20k
60ºF /16ºC 15k
68ºF / 20ºC 13k
79ºF / 26ºC 10k
86ºF / 30ºC 9k
( P/N EBR809775**)
44
CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
