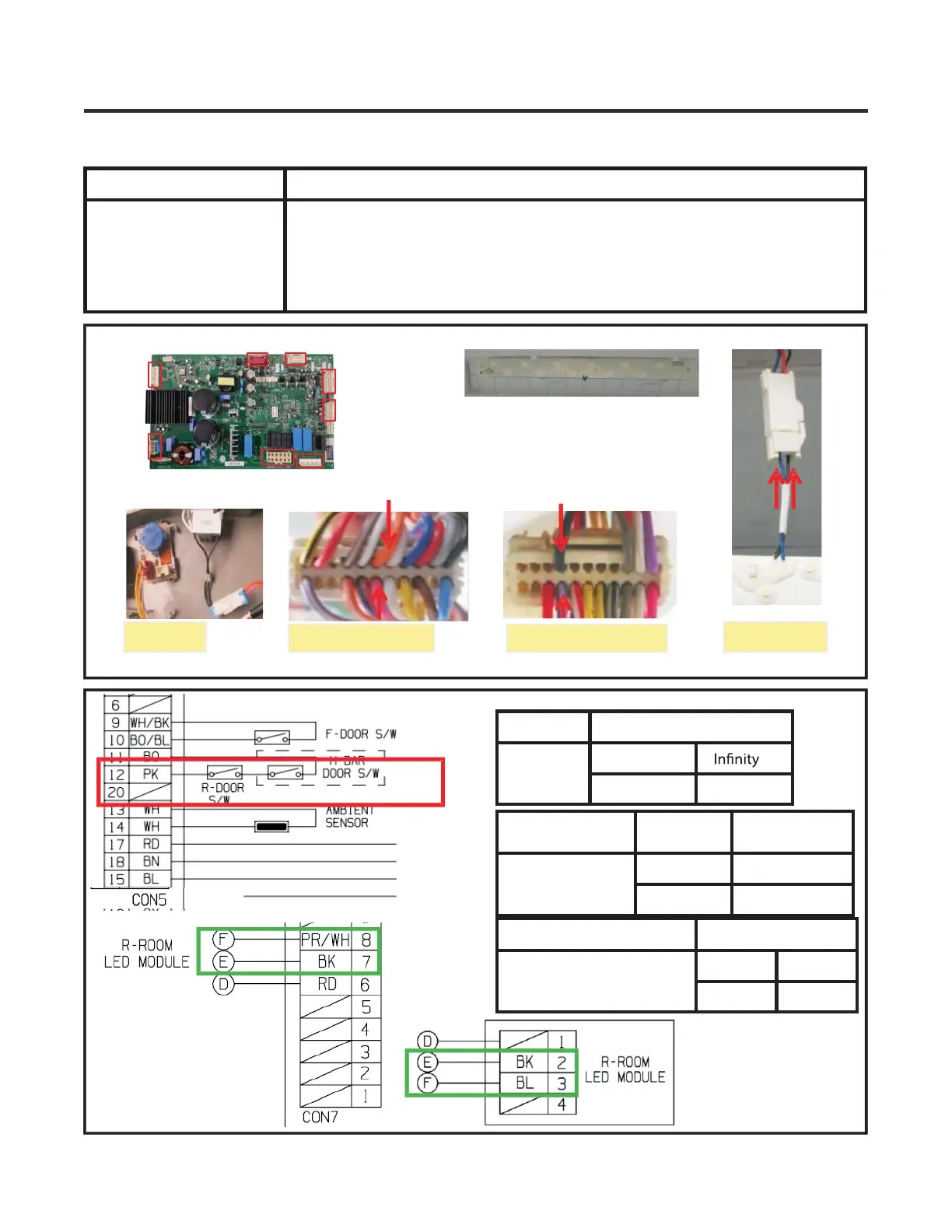

4. Refrigerator room led doesn’t work
Symptom Check Point
1. Refrigerator room led
doesn’t work
1. Check the refrigerator door switch sticky
2. Check the door S/W resistance
3. Check the LED Lamp
Resistance [Ω]
Door S/W
Open
Closed 0
Door S/W
LED Lamp Voltage [V]
Blue~ Black
Closed 0~2V
Open 12V
R Led Lamp
INSPECTION
POINT
DOOR Voltage [V]
CON7
7
th
pin ~ 8
th
pin
Close
0~2V
Open
12V
CON5 (R-Door S/W) CON7 (R-LED Supply)
67
CON 6
CON 5
CON 2CON 3
CON 8
CON 7
CON 201
CON 1
