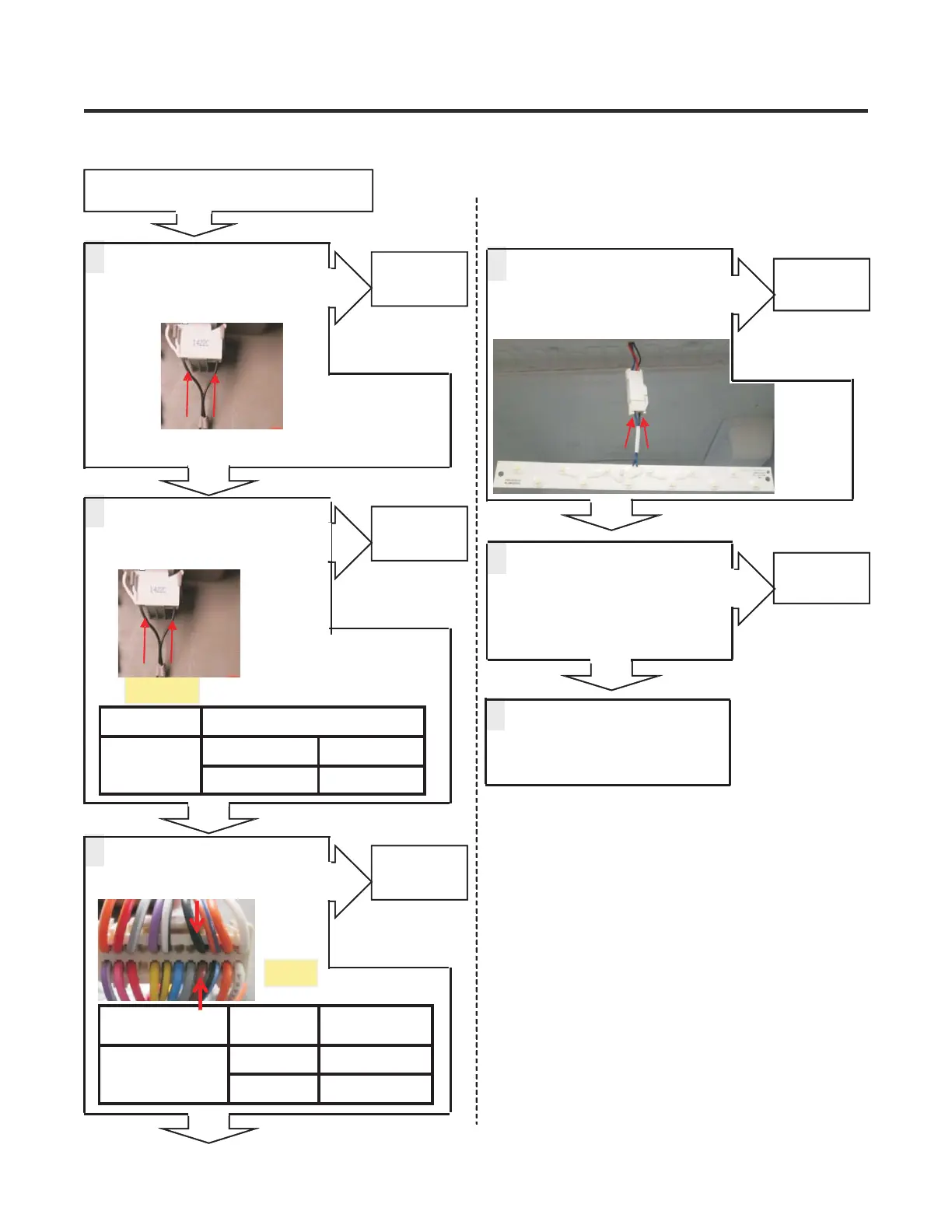

Freezer room lamp doesn’t work
1
Check the Refrigerator door switch.
Does it feel sticky?
Yes
No
Change the
Door S/W
2
Check the door S/W resistance.
Is it correct compared with table?
No
Yes
Change the
Door S/W
Door S/W
3
Check the PCB Voltage.
Is CON8 17
th
pin ~ 18
th
pin
voltage 12V?
No
Yes
Change the
PCB
CON8
6
Explain to customer
4
Check the LED Lamp voltage.
Is it 0~2V? (While door closed)
No
Yes
Change the
Door S/W
5
Check the LED Lamp voltage.
Is it 12V? (While door open)
No
Yes
Change the
LED Lamp
INSPECTION
POINT
DOOR Voltage [V]
CON8
17
th
pin ~ 18
th
pin
Close
0~2V
Open
12V
Resistance [Ω]
Door S/W
Normal Innity
Door Close 0
