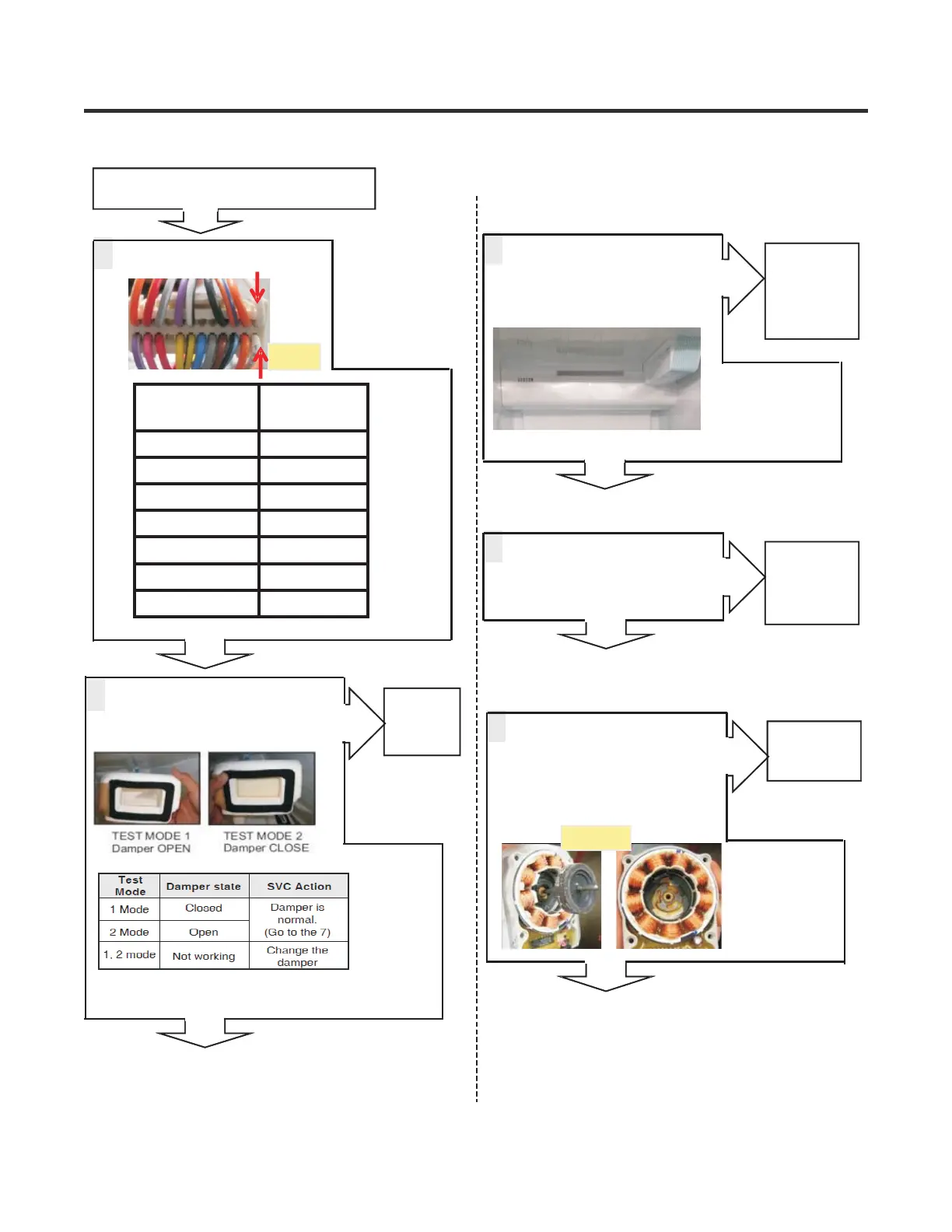

7) Poor cooling in Freezer compartment
Poor cooling in Freezer compartment
1
Check the sensor resistance.
3
Open the fresh food door and
Check the air flow. Windy?
No
Yes
Check the F
Fan Motor
Go to 5
4
Check the air temperature.
Is it cold?
No
Yes
Check the
Compressor
and sealed
system
5
Check the Fan motor.
Rotate fan using hand.
It feel sticky?
Yes
Change the
Fan motor
Fan Motor
No
CON8
CON8
23
th
pin ~ 24
th
pin
Resistance
[Ω]
-22ºF / -30ºC 40k
-13ºF / -25ºC 30k
-4ºF / -20ºC 23k
5ºF / -15ºC 17k
14ºF / -10ºC 13k
23ºF / -5ºC 10k
32ºF / 0ºC 8k
2
Open the fresh food door and
Check the air flow D amper?
No
Yes
Check the
dampe
r
Go to 4
