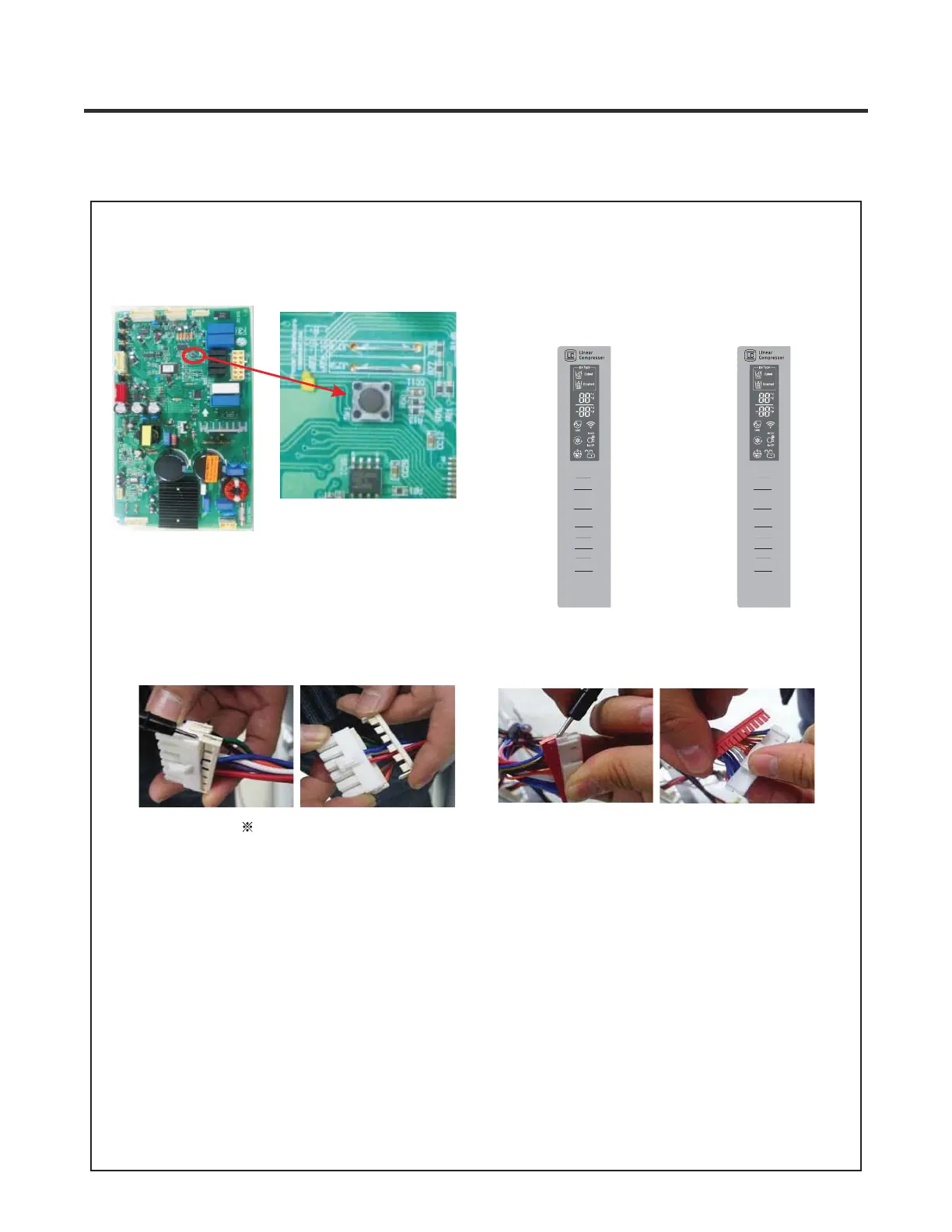

Troubleshooting
After measure the values, you should put in the TPA again.
1.How to make TEST MODE
If you push the test button on the Main PCB, the refrigerator will be enter the TEST MODE
2. How to remove T erminal Position Assurance (TPA)
* 1 time :Comp / Damper / All FAN on
(All things displayed)
* 2 times :Forced defrost mode
(22 22 displayed)
Main PWB
>APT C D<>APT C A<
3. Reference
1) TEST MODE and Removing TP A
3. W ire Color
BL : Blue
WH :White
BO : Bright Orange
BK : Black
BN : Brown
PR : Purple
RD : Red
GN : Green
SB : Sky Blue
GY : Gray
PK : Pink
78
Lock
Hold 3sec.
Smart Grid
Wi-Fi
Freezer
Refrigerator
Ice Plus
Ice On/Off
Hold 3sec.
Ice Type
Water Filter
Filter Reset Hold 3sec.
Lock
Hold 3sec.
Smart Grid
Wi-Fi
Freezer
Refrigerator
Ice Plus
Ice On/Off
Hold 3sec.
Ice Type
Water Filter
Filter Reset Hold 3sec.
