LG M2262D Service Manual

Copyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 26 -

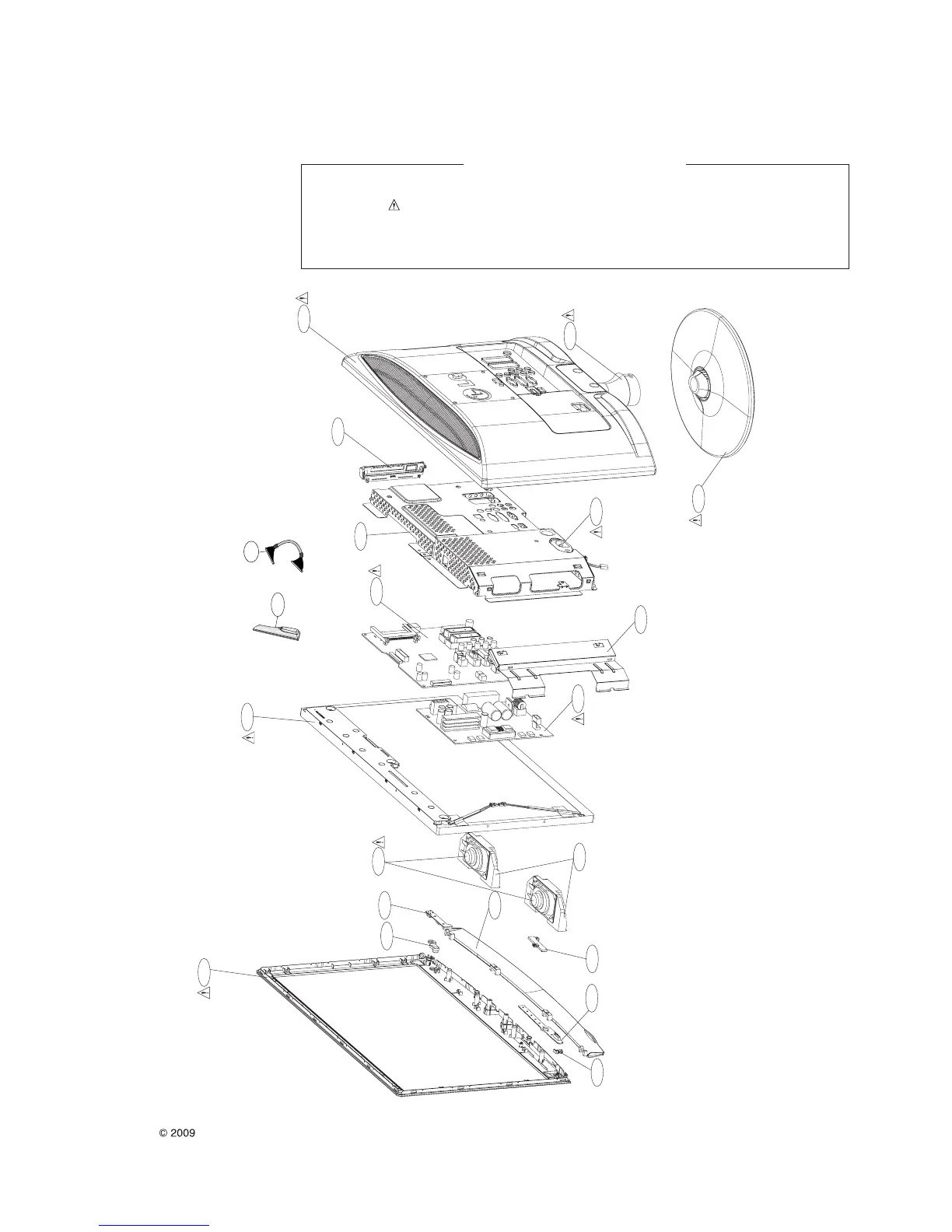

EXPLODED VIEW
300
510
200
301
122
120
540
900
530
400
910
550
520
800
810
500
302
511
501
LV1
A2
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts
are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as recommended
in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

LG M2262D Specifications

General

Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Viewable size diagonal	546.1 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Power requirements	90 – 264 V, 47/63 Hz
Display viewable area (HxV)	476.6 x 268.1 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	53 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	193.5 mm
Width (without stand)	519.8 mm
Height (without stand)	400.5 mm
Weight (without stand)	4700 g
