9

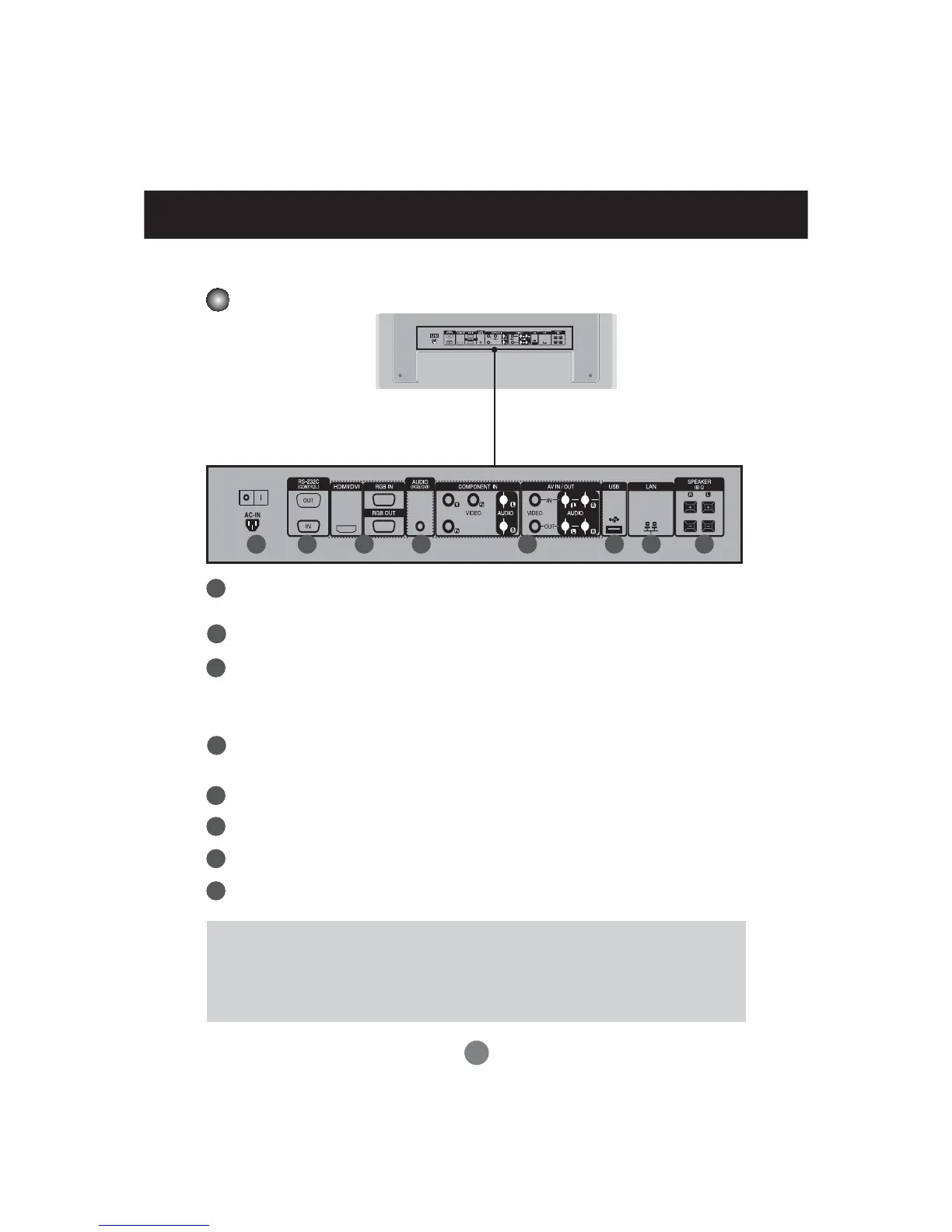

Name and Function of the Parts
Rear View
* LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of PC
sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound card
supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the program
(Refer to the Sound Card Manual).
* The product image in the user's guide could be different from the actual image.
Power Connector
Connect the power cord
RS-232C Serial Ports
RGB PC, HDMI/DVI Ports
HDMI Supports High Definition input and HDCP (High-bandwidth Digital
Content Protection). Some devices require HDCP in order to display HD
signals.
PC Sound Jack
Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Ports
USB Port
LAN Port
Speaker Ports
1
1
2
2
4
4
3
3
6
6
5
5
8
8
7
7
