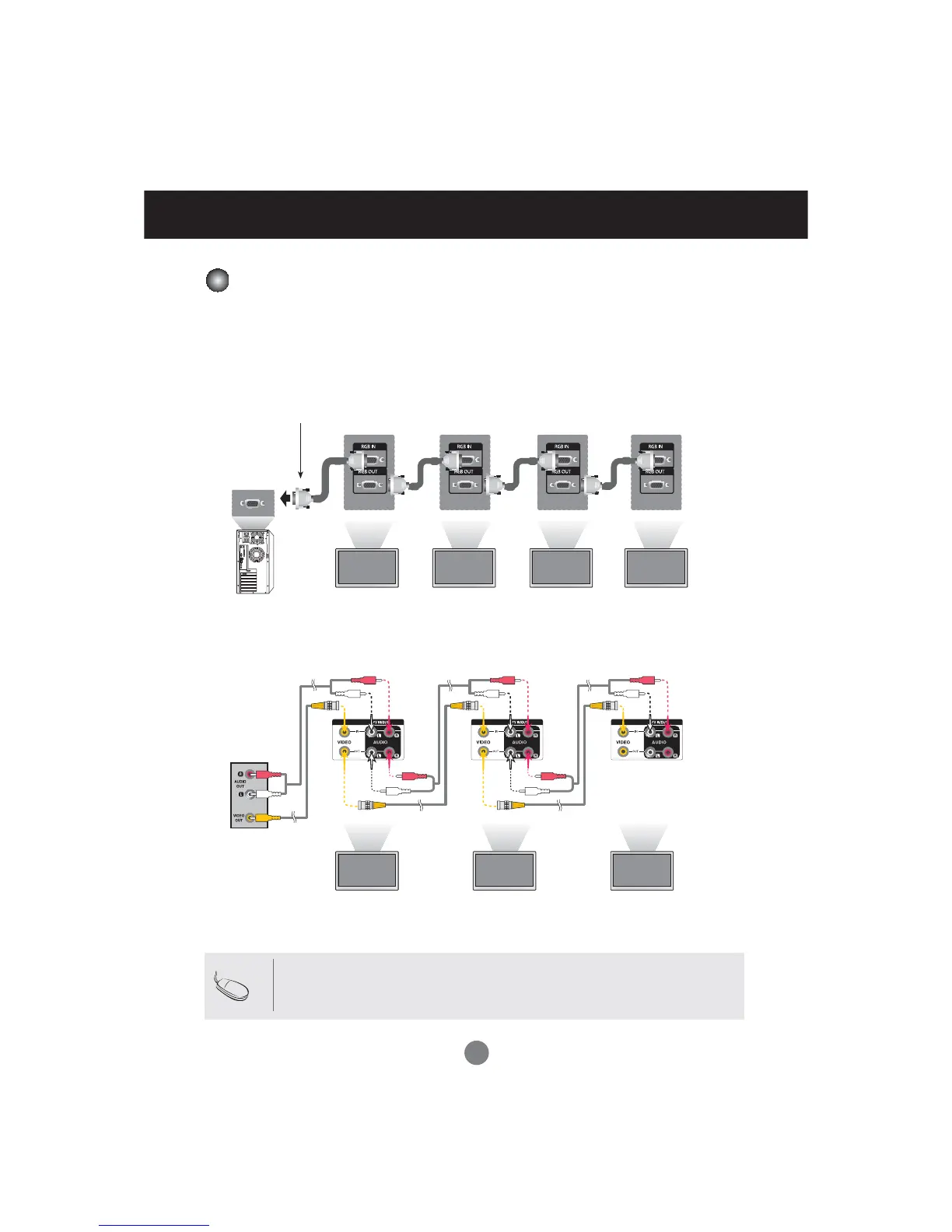

Connecting to External Devices
Daisy Chain Monitors
When using RGB input
When using AV input
To use different products connected to each other Connect one end of the signal input
cable (15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect
the other end to the RGB IN connector of other products.
Product 1
Product 2
Product 3
Product 4
15-pin D-Sub Signal Cable
PC
Video/TV
PC
BNC Cable
(not included)
Audio Cable
(not included)
Product 1 Product 2 Product 3
îî The number of monitors that can be connected to one output may vary depending on
signal status and cable loss. If the signal status is good, and there is no cable loss, it
is possible to connect up to 9 monitors. If you want to connect more than this number
of monitors, it is recommended to use a distributor.
Note
B.
A.
To Next Page
