LG MC12AHR User Manual

12 Multi Type Air Conditioner

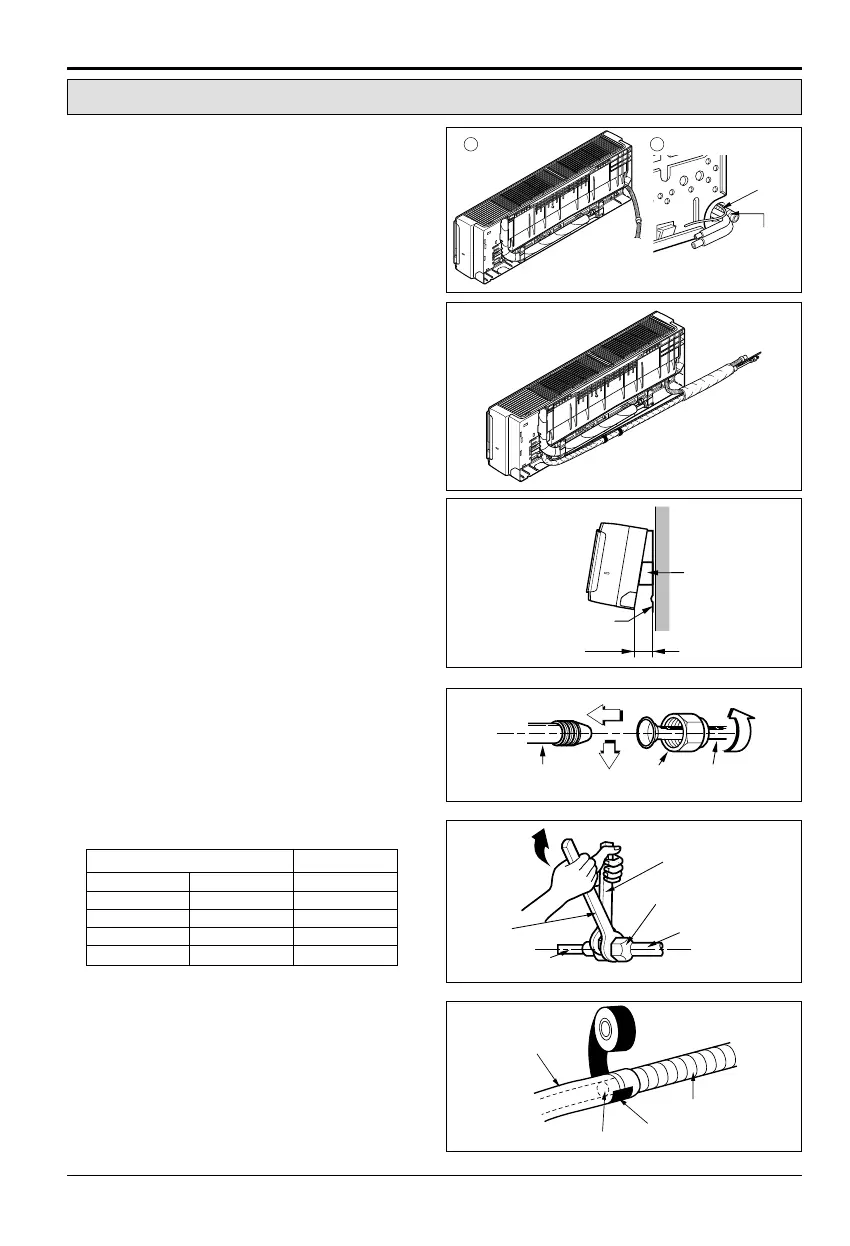

Installation of Indoor, Outdoor Unit
1. Route the indoor tubing and the drain hose to
the required piping hole position.
2. Insert the piping, drain hose, and the
connecting cable into the piping hole.
3.
Insert the connecting cable into the indoor unit.
• Don't connect the cable to the indoor unit.
• Make a small loop with the cable for easy
connection later.
4. Tape the drain hose and the connecting
cables.
5. Indoor unit installation
• Hang the indoor unit from the hooks at the
top of the installation plate.
• Insert the spacer etc. between the indoor
unit and the installation plate and separate
the bottom of the indoor unit from the wall.
Connecting the piping to the indoor unit and
the drain hose to drain pipe.
1. Align the center of the pipes and sufficiently
tighten the flare nut by hand.
2. Tighten the flare nut with a wrench.
3. When extending the drain hose at the indoor
unit, install the drain pipe.
For left rear piping
Drain pipe
Connecting
cable
1 2
Installation plate
Spacer
Indoor unit
8cm
Indoor unit tubing Flare nut Pipes
Wrench
Indoor unit tubing
Connection pipe
Flare nut
Open-end wrench (fixed)
Vinyl tape
Adhesive
Drain hose
Indoor unit drain hose
(narrow)
mm inch kg
.
m
Ø6.35 1/4 1.8
Ø9.52 3/8 4.2
Ø12.7 1/2 5.5
Ø15.88 5/8 6.6
Outside diameter Torque

LG MC12AHR Specifications

General

Type	Split system
Cooling capacity (max)	12000 BTU/h
Dehumidifying capacity	1.5 l/h
Heating capacity (max)	13200 BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3520 W
Heating capacity in watts (max)	3870 W
Indoor unit type	Wall-mountable
Airflow	600 m³/h
Noise level	35 dB

Weight and Dimensions

Weight	9500 g
Dimensions (WxDxH)	915 x 165 x 282 mm
