Installation Manual 13
ENGLISH

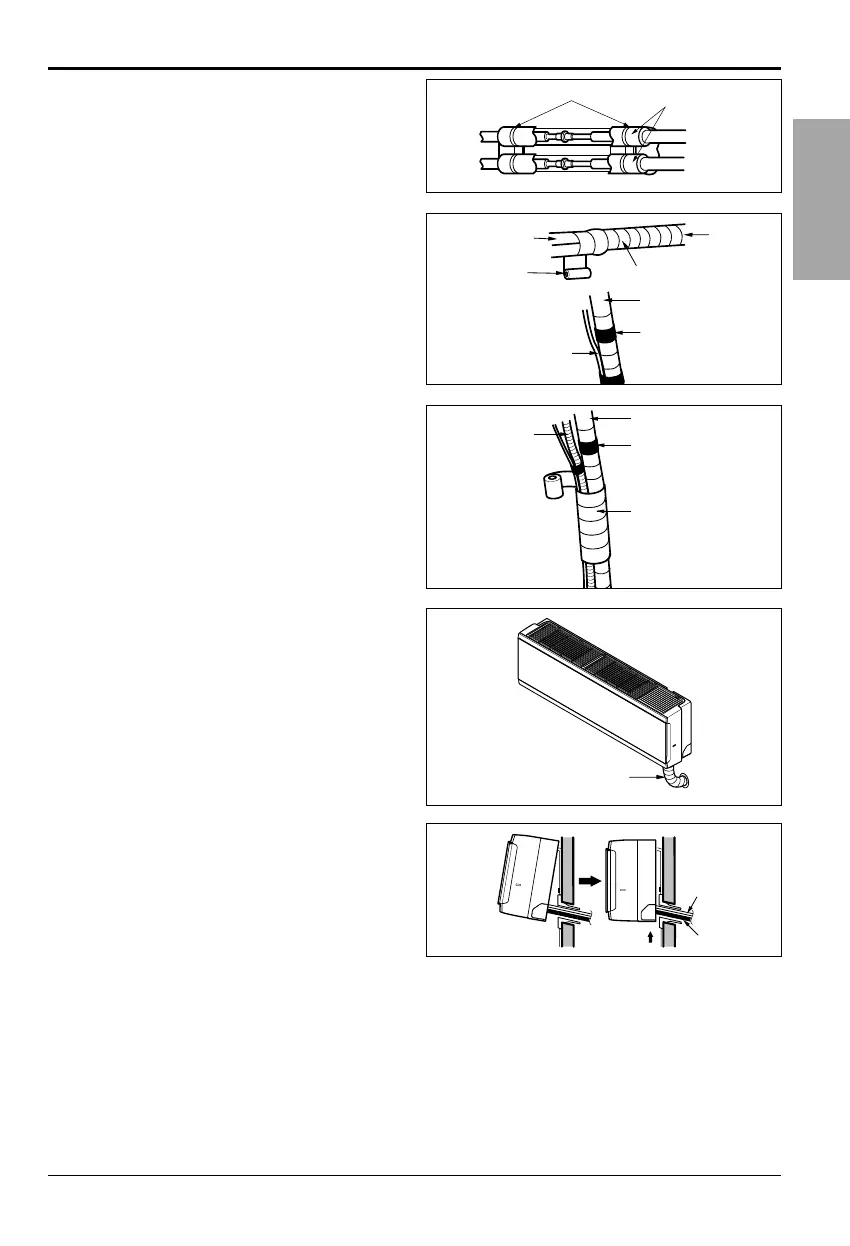

Installation of Indoor, Outdoor Unit
Wrap the insulation material around the
connecting portion.
1. Overlap the connection pipe heat insulation
and the indoor unit pipe heat insulation
material. Bind them together with vinyl tape
so that there may be no gap.
2. Wrap the area which accommodates the rear
piping housing section with vinyl tape.
3. Bundle the piping and drain hose together by
wrapping them with cloth tape over the range
within which they fit into the rear piping
housing section.
Reroute the pipings and the drain hose
across the back of the chassis.
Indoor unit installation
1. Remove the spacer.
2. Ensure that the hooks are properly seated on
the installation plate by moving it left and
right.
3. Press the lower left and right sides of the unit
against the installation plate until the hooks
engage into their slots(clicking sound).
Plastic bands
Insulation material
Vinyl tape(narrow)
Connection
pipe
Connecting cable
Indoor
unit piping
Pipe
Vinyl tape
(wide)
Wrap with vinyl tape
Drain hose
Vinyl tape(narrow)
Pipe
Wrap with
vinyl tape(wide)
Piping for
passage through
piping hole
Drain hose
Connecting
cable

LG MC12AHR Specifications

General

Type	Split system
Cooling capacity (max)	12000 BTU/h
Dehumidifying capacity	1.5 l/h
Heating capacity (max)	13200 BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3520 W
Heating capacity in watts (max)	3870 W
Indoor unit type	Wall-mountable
Airflow	600 m³/h
Noise level	35 dB

Weight and Dimensions

Weight	9500 g
Dimensions (WxDxH)	915 x 165 x 282 mm
