LG MC12AHR User Manual

h2
h1
h1
A
A
Branch Pipe
Main Pipe
Distributor
Distributor
B
B
h2

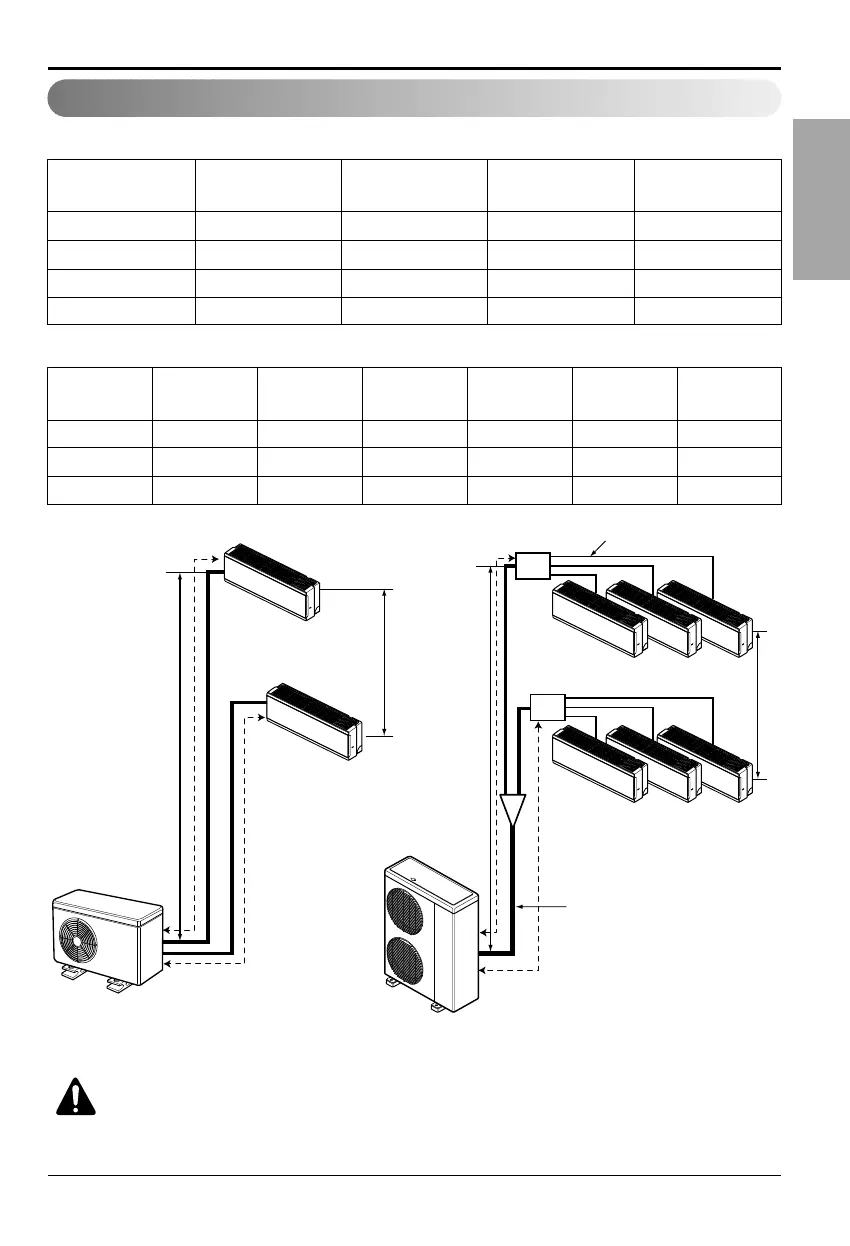

Multi Piping Type Distributor Type
Installation of Indoor, Outdoor Unit
Installation Manual 7
ENGLISH
Multi Piping Type (m)
Distributor Type (m)
Piping length and elevation
14k/16k 30 20 15 7.5
18k 40 25 15 7.5
24k 50 25 15 7.5
30k 70 25 15 7.5
Capacity(Btu/h) Total Length Max Length(A/B)
Max Elevation
(h1)
In - In Elevation
(h2)
40k 100 50 50 15 30 10
48k 110 50 60 15 30 10
56k 120 50 70 15 30 10
Capacity
(Btu/h)
Total Length
Max Main Pipe
Length (A/B)
Total Branch
Pipe Length
Max Branch
Pipe Length
Max Elevation
(h1)
In - In Elevation
(h2)
CAUTION: Capacity is based on standard length and maximum allowance
length is on the basis of reliability. Oil trap should be installed every 5~7
meters.

LG MC12AHR Specifications

General

Type	Split system
Cooling capacity (max)	12000 BTU/h
Dehumidifying capacity	1.5 l/h
Heating capacity (max)	13200 BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3520 W
Heating capacity in watts (max)	3870 W
Indoor unit type	Wall-mountable
Airflow	600 m³/h
Noise level	35 dB

Weight and Dimensions

Weight	9500 g
Dimensions (WxDxH)	915 x 165 x 282 mm
