ORDER OF DISASSEMBLY FOR MECHANISM DECK
2
1

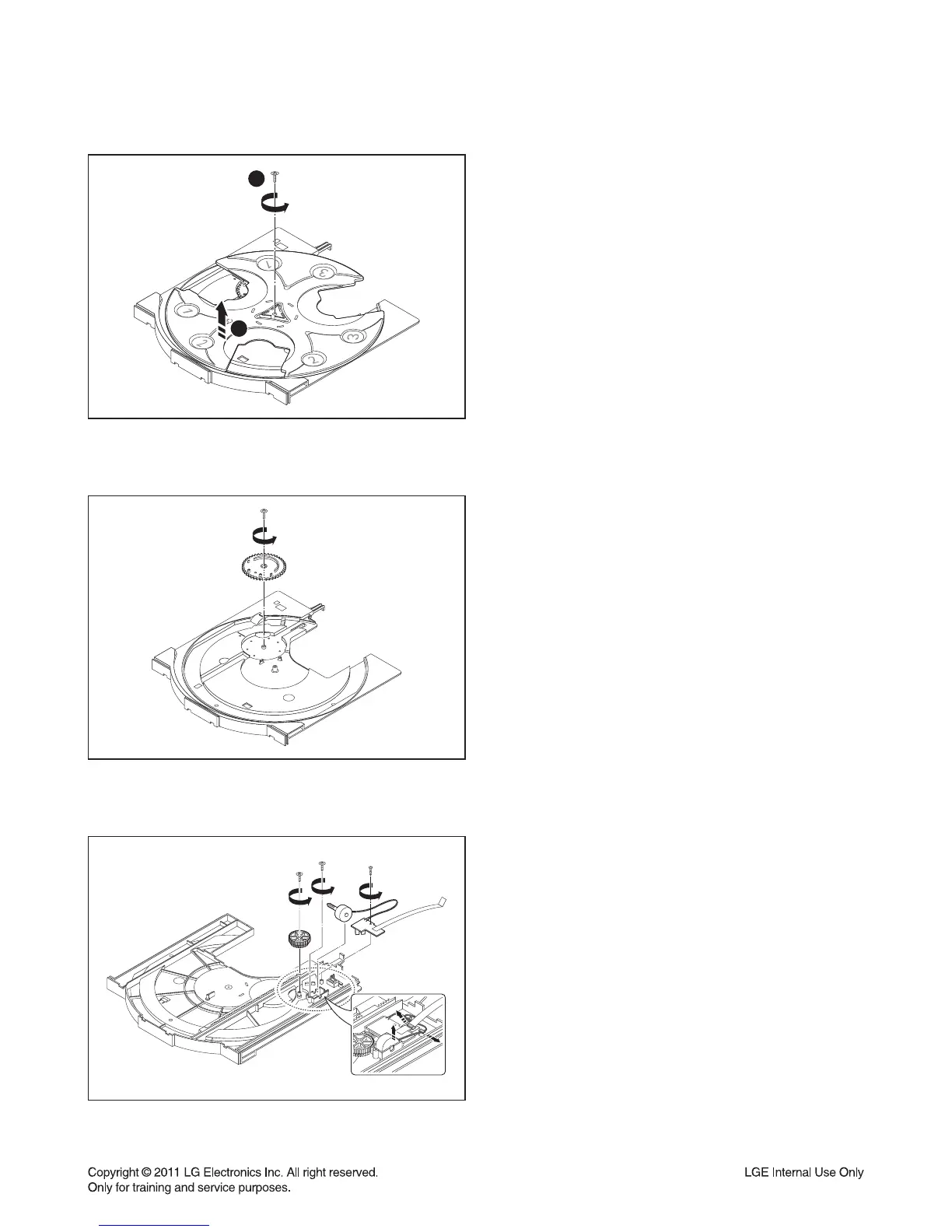

4) Loosen the screw to pull up and disassemble the
Tray Disc.
Figure 4
6) Disassemble the Gear Tray, Tray Motor Assy and
Loading PCB Assy from the Tray Loading.
Figure 6
5) Loosen the screw to pull up and disassemble the
Gear Tray CAM.
Figure 5
