2-7
3) Set the Gear Loading 1 and Gear Pulley 2 on the
Base Main.
Hang the belt between the Gear Pulley and Motor Pulley.
Assemble the Clamp Disc, Clamp Magnet and Cover
Plate to the Base Main.
4) After setting the Gear Main 2, Gear Pu Up 3 and Gear
Pu Down 4 on the Base Main, tighten the screws.
After assembling the Gear Main, align the location as
shown in Figure.

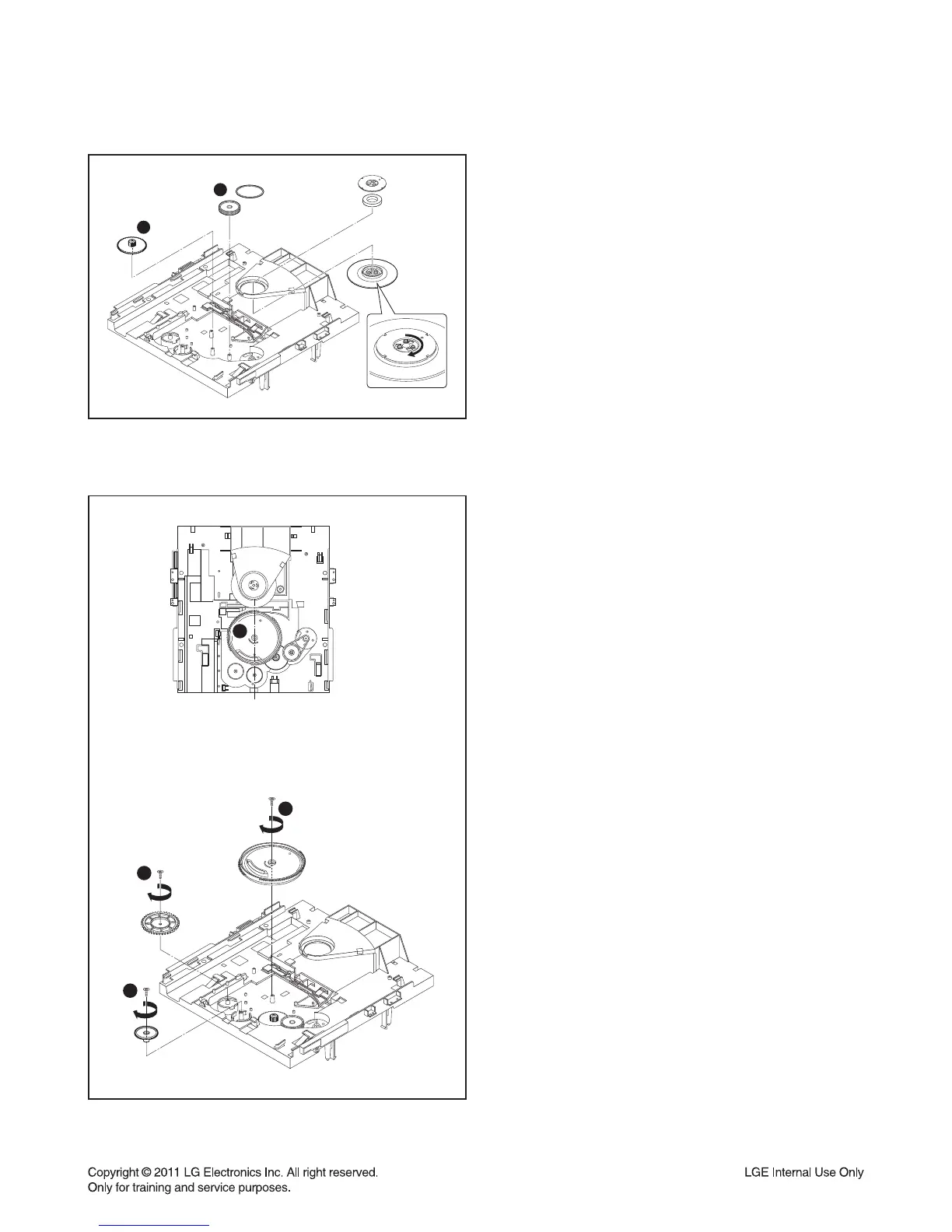

ORDER OF ASSEMBLY FOR MECHANISM DECK
1
2
Figure 3
Figure 4
2
3
4
1
To Next Page
