LG MCS1306F - Printed Circuit Board Diagrams; Main P.C.board

LG MCS1306F
95 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
3-81 3-82
PRINTED CIRCUIT BOARD DIAGRAMS

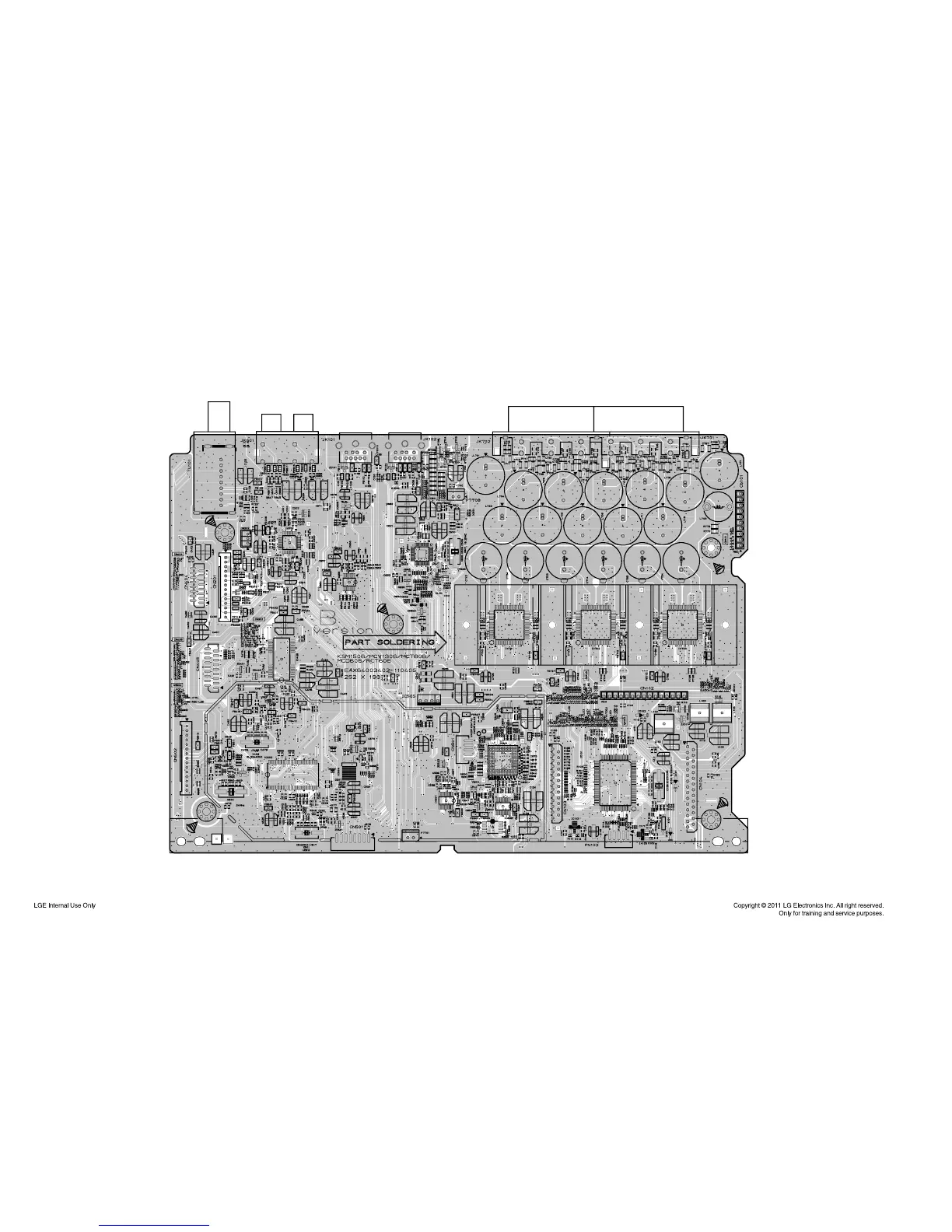

1. MAIN P.C.BOARD
(TOP VIEW)
