2-4

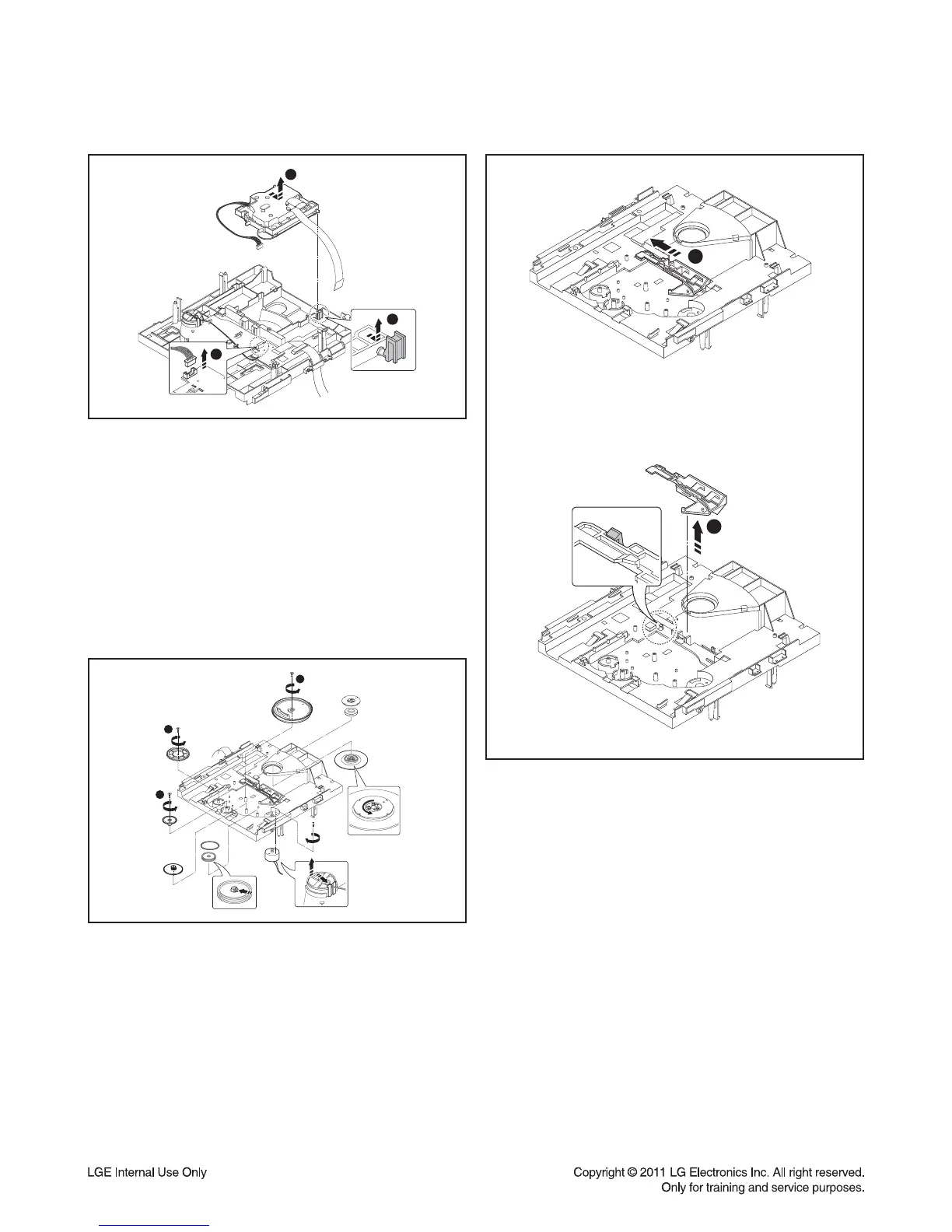

ORDER OF DISASSEMBLY FOR MECHANISM DECK
1
2
3
Figure 7
9) Push the Guide UD in direction 1 to disassemble it
from the Base Main.
8) Disassemble each gear part, Clamp Disc, Clamp
Magnet and Cover Plate from the Base Main.
Disassemble the Loading Motor Assy by being careful
of the hook on the surface of the Base Main.
7) Disassemble the Harness Cable from the Base Main.
Disassemble the Base Sled Assy from the Base Main
by referring to Figure.
3
2
1
Figure 8
2
1
Figure 9
