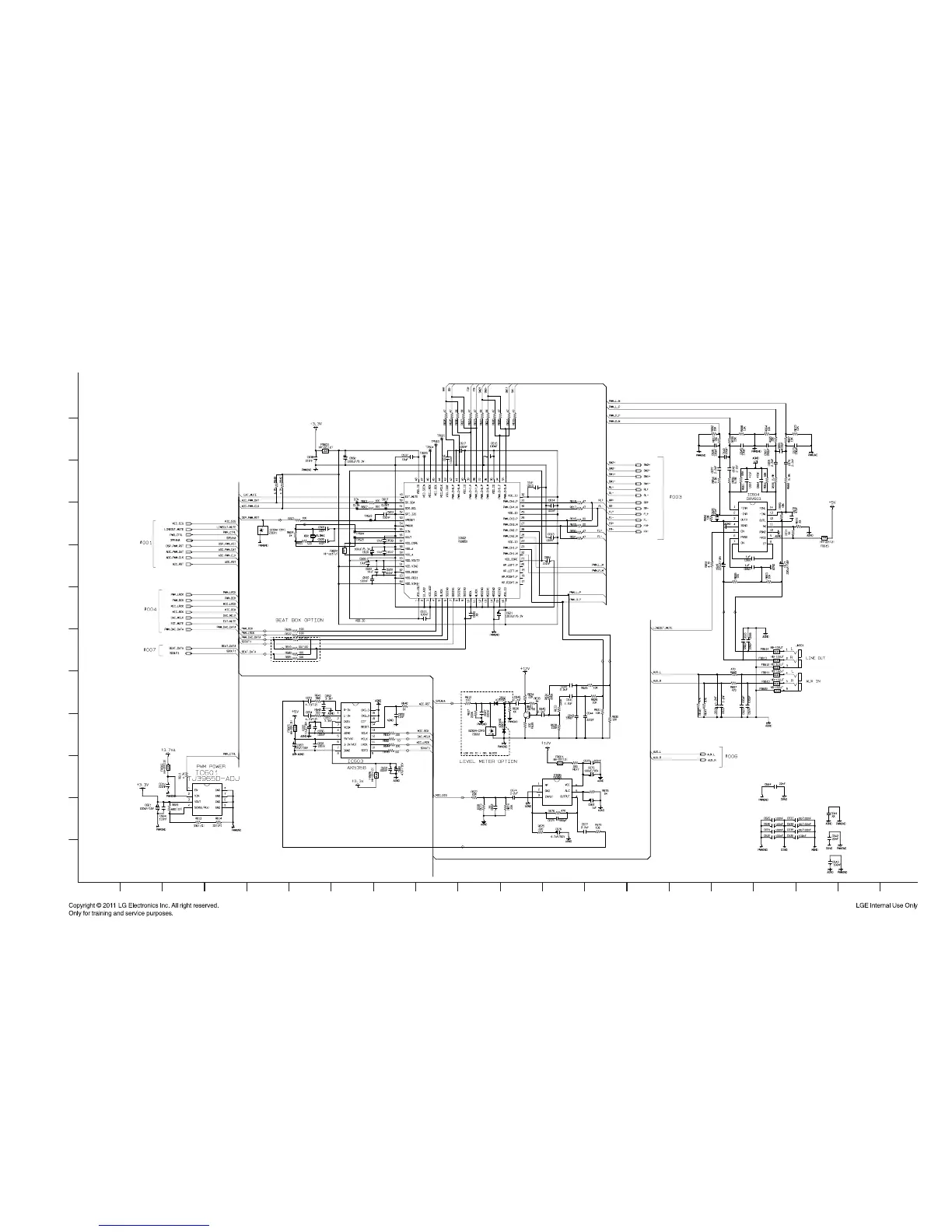

3. PWM CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
PWM
EBY60990001(#2) Rev 7.4
2011.05.12
