LG MCS1306W Service Manual

2-9
Figure 7
2
1
Figure 8

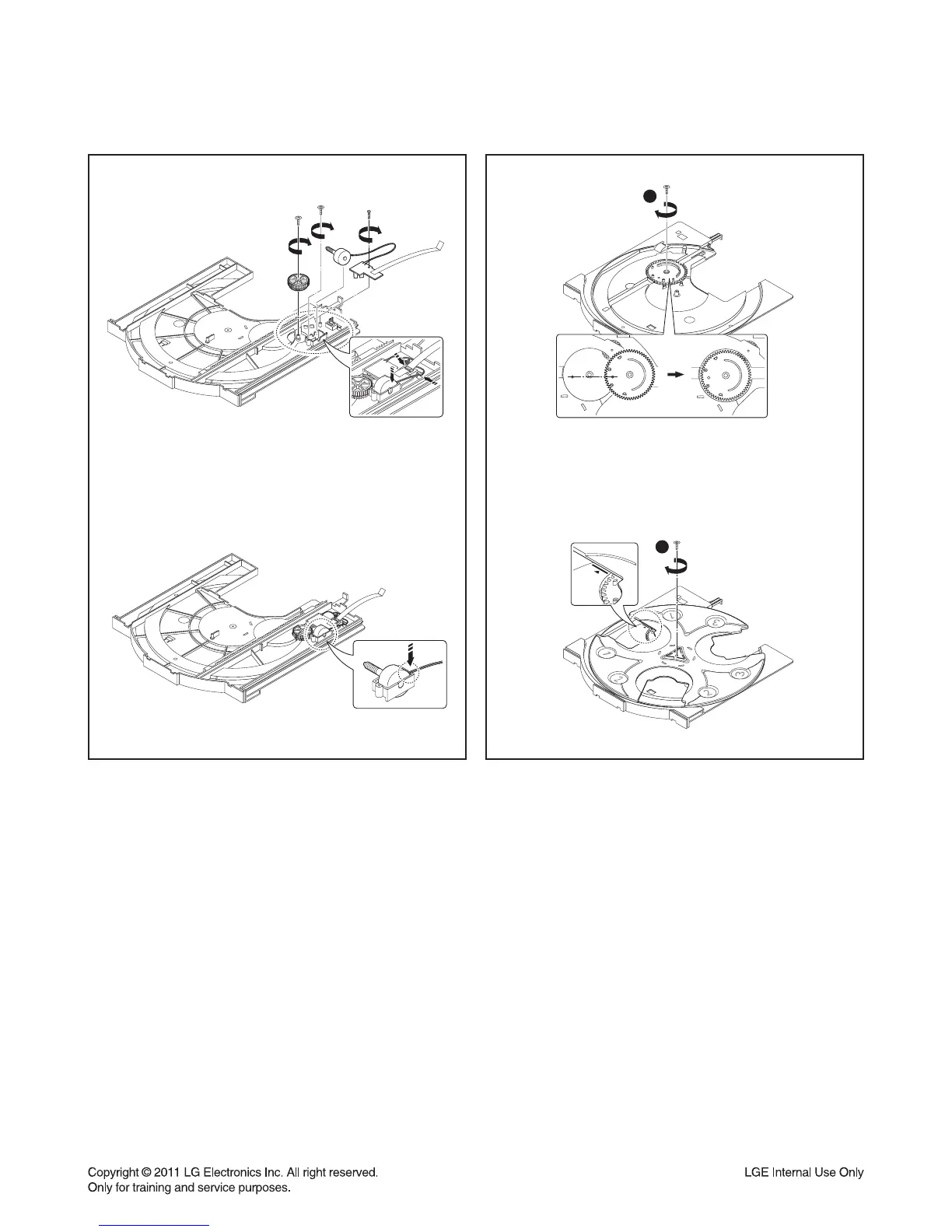

7) After setting the Gear Tray, Tray Motor Assy and Load-
ing PCB Assy on the Tray Loading, tighten the screw.
8) Assemble the Gear Tray CAM on the Tray Loading
and set the Tray Disc.
(When assembling, check the location of the Gear Tray
CAM and Tray Disc as shown in the Figure)
ORDER OF ASSEMBLY FOR MECHANISM DECK
