3
Installation
Attaching the
speakers to the unit

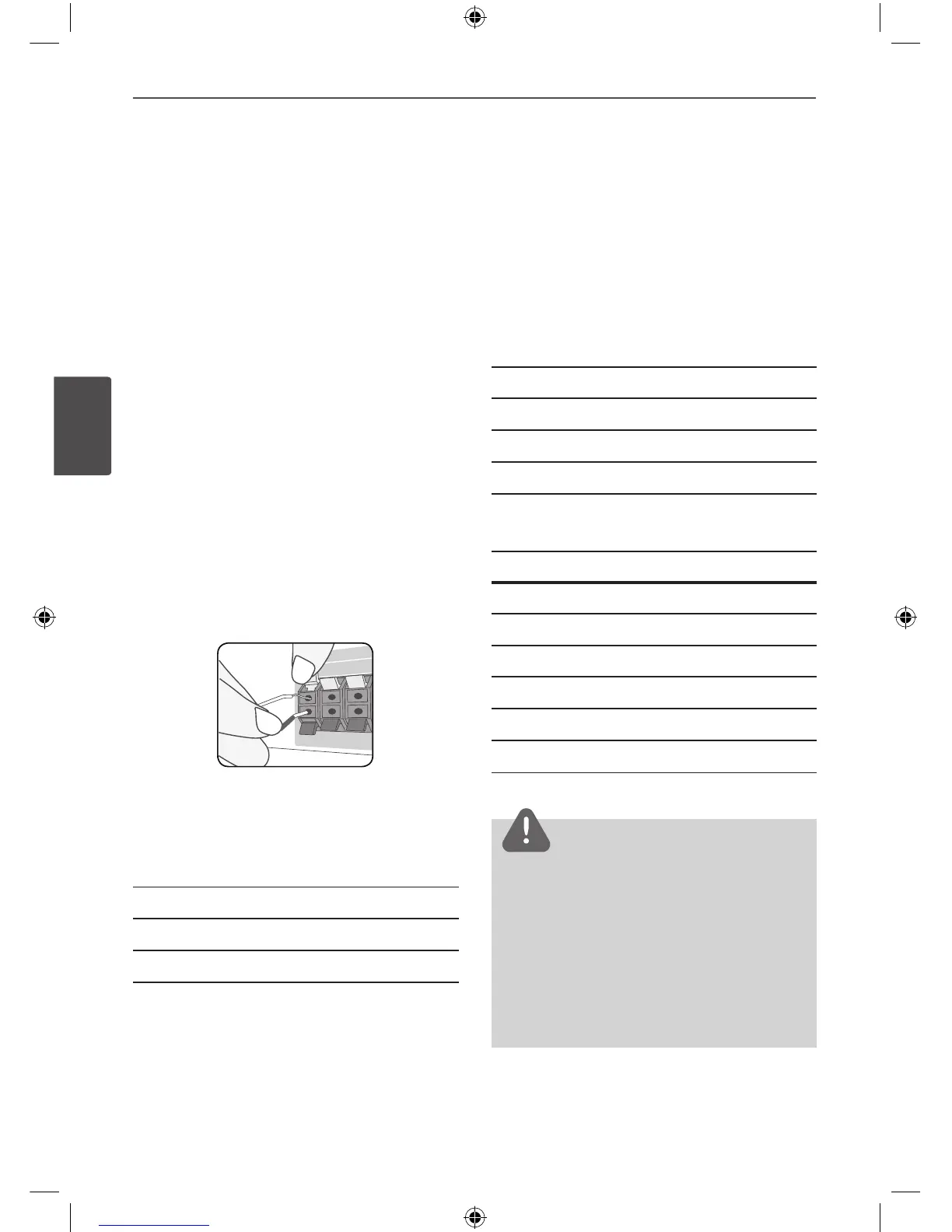

To connect the cable to the unit, press each
plastic nger pad to open the connection
terminals on the unit. Insert the wire and
release the nger pad.
Connect the black end of each wire to the
terminals marked - (minus) and the other end
to the terminals marked + (plus).
Connect the other end of each wire to the
correct speaker according to the color coding:
MDD305 (2Ch)
Color Speaker Position
Red Front Front right
White Front Front left
MDT505 (2.1Ch)
Color Speaker Position
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
MDS715 (5.1Ch)
Color Speaker Position
Grey Rear Rear right
Blue Rear Rear left
Green Center Center
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
CAUTION
• Be careful to make sure children not to put their
hands or any objects into the *speaker duct.
*Speaker duct: A hole for plentiful bass sound
on speaker cabinet (enclosure).
• The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far away
from either TV screen or PC monitor.
