LG MU-42PM20

14 Plasma TV
Installation

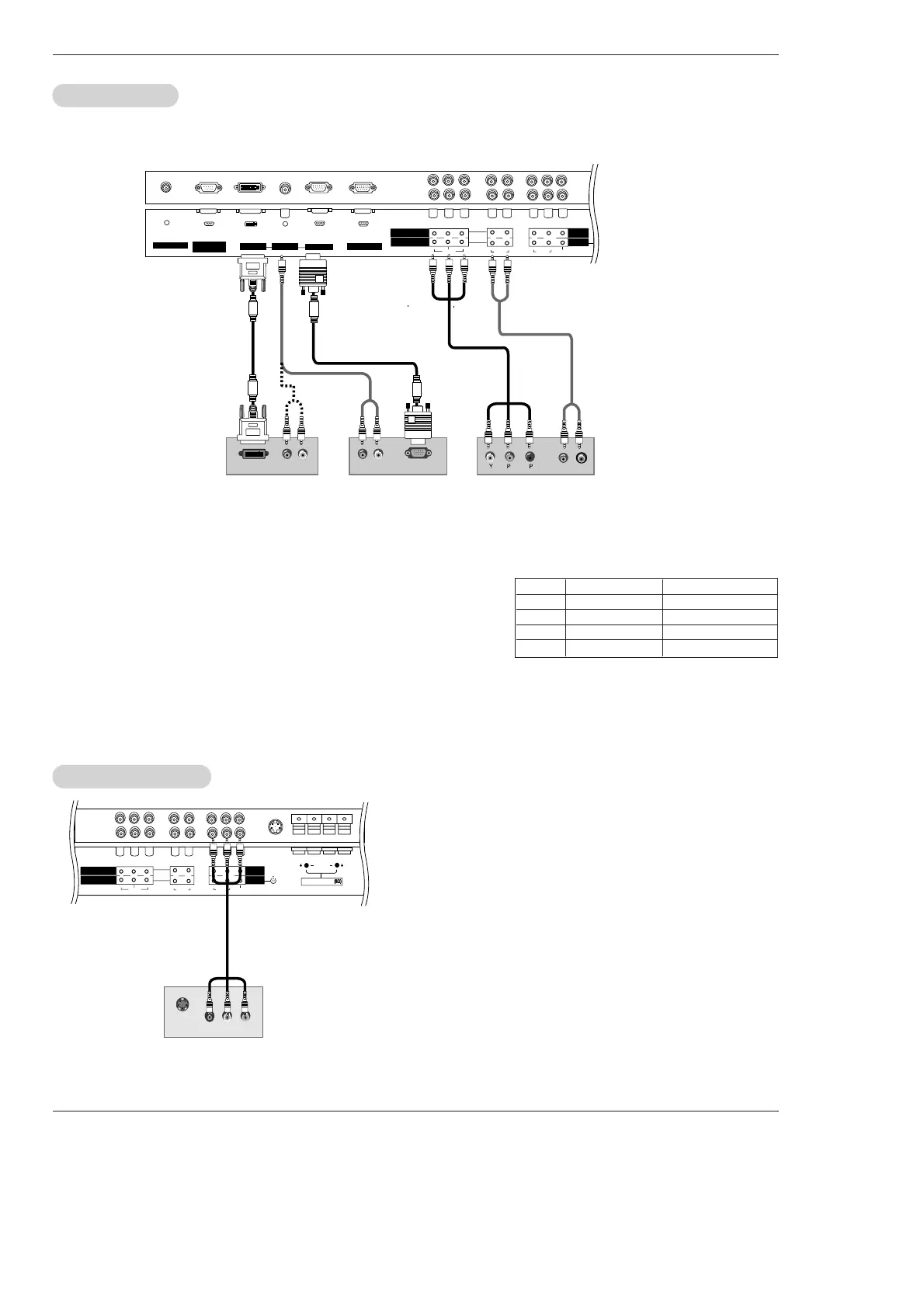

How to connect
Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB or DVI jack for video
connections, depending on your set-top box connector. Then, make the
corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital
set-top box.)
2. Use INPUT SELECT or MULTIMEDIA on the remote control to select
Component 1, Component 2, RGB, or DVI source.
- To watch digitally broadcast programs, purchase and connect a digital set-top box.
DTV Setup
DTV Setup
RS-232C INPUT
(CONTROL/SERVICE)
YP B P R
AUDIO INPUT
DVI INPUT
RGB INPUT
RGB OUTPUT
REMOTE CONTROL
AUDIO
VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
(R)(R)
(L)(L)
VIDEO
(R)(R)
(L/MONO)(L/MONO)
AUDIO
COMPONENT INPUT 2
COMPONENT INPUT 1
B
R
(R) AUDIO (L)
(R) AUDIO (L)
RGB-DTV OUTPUT
(R) AUDIO (L)
DVI-DTV OUTPUT
Digital Set-top Box
or
or
Signal
480i
480p
720p
1080i
Component 1/2
Yes
Yes
Yes
Yes
RGB,DVI
No
Yes
Yes
Yes
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.
Connect the second TV or monitor to the TV’s MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device’s input settings.
NOTE
• Component, RGB-PC/RGB-DTV, DVI-PC/DVI-DTV input sources
cannot be used for Monitor out.
YP B P R
( )
( )
( )
( )
EXTERNAL SPEAKER
S-VIDEO
AUDIO
VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
(R)(R)
(L)(L)
VIDEO
(R)(R)
(L/MONO)(L/MONO)
R
L
AUDIO
COMPONENT INPUT 2
COMPONENT INPUT 1
S-VIDEO
IN
(R) AUDIO (L) VIDEO
Monitor Out Setup
Monitor Out Setup
