LG MU-42PM20

8 Plasma TV
Introduction
Connection Options
Connection Options
RS-232C INPUT
(CONTROL/SERVICE)
YP B P R
AC INPUT AUDIO INPUT
( )
( )
( )
( )
EXTERNAL SPEAKER
DVI INPUT
RGB INPUT
RGB OUTPUT
REMOTE CONTROL
S-VIDEO
AUDIO
VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
(R)
(L)
VIDEO
(R)
(L/MONO)(L/MONO)
R
L
AUDIO
COMPONENT INPUT 2
COMPONENT INPUT 1
5
1. REMOTE CONTROL
Connect your wired remote control to the remote control
port on the Monitor.
2. RS-232C INPUT (CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
3. DVI (Digital Visual Interface) INPUT/
AUDIO INPUT/ RGB INPUT JACKS
Connect the monitor output connector from a PC to the
appropriate input port.
4. RGB OUTPUT PORT
You can watch the RGB signal on another monitor, connect
RGB OUTPUT to another monitor’s PC input port.
5. DVD/DTV Input (Component 1-2)
Connect a component video/audio device to these jacks.
6. Monitor Output
Connect a second TV or Monitor.
Audio/Video Input 1
Connect audio/video output from an external device to
these jacks.
7. S-Video Input
Connect S-Video out from an S-VIDEO device to the S-
VIDEO input.
8. EXTERNAL SPEAKER (8 ohm output)
Connect to optional external speaker(s).
* For further information, refer to ‘Speaker & Speaker
Stand’ manual.
9. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to operate
the Monitor on DC power.

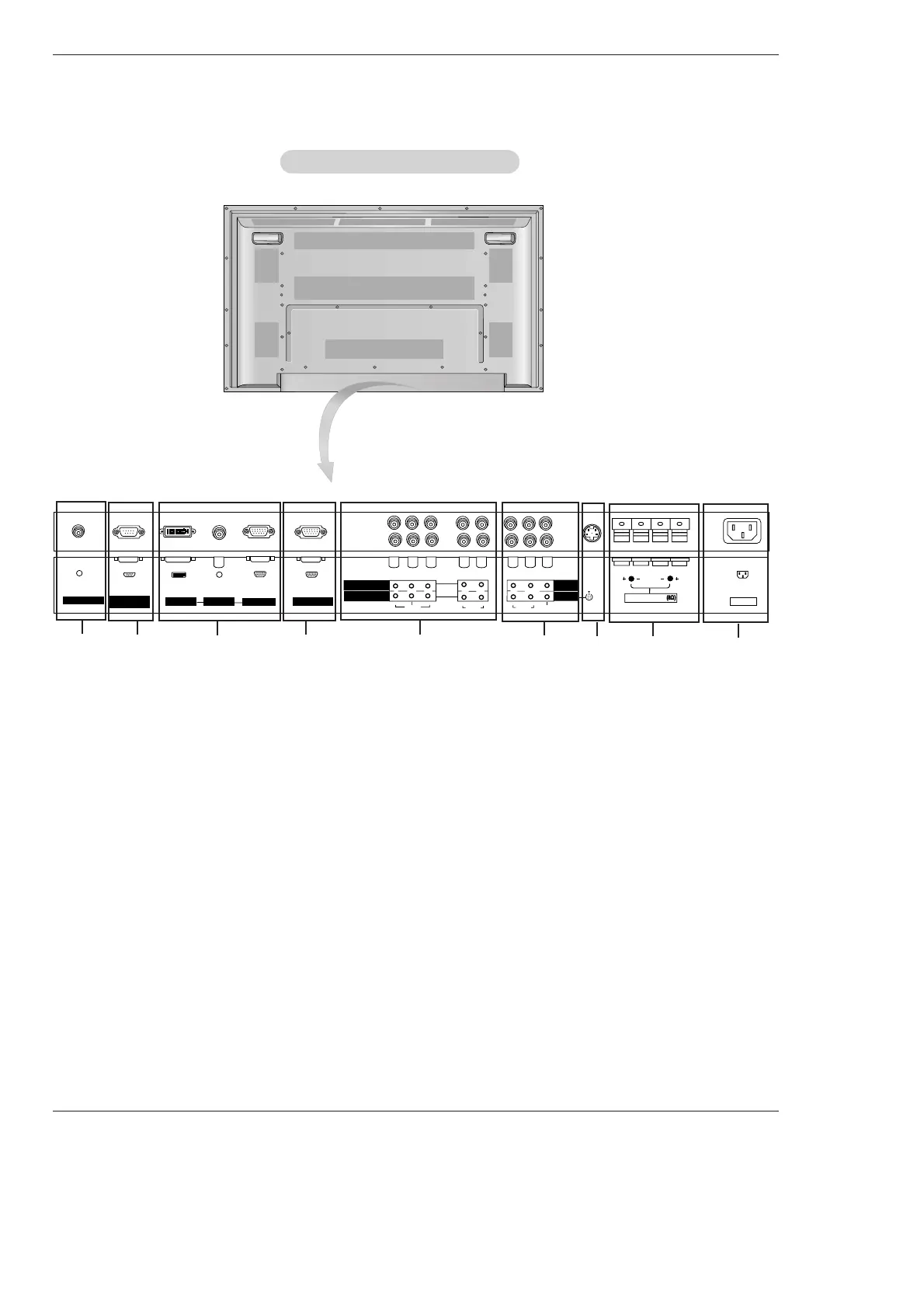

Back Connection Panel
Back Connection Panel
1
3
4
2
7 8
6
9
