830(32-11/16)
A
B
47.9(1-7/8)
275(10-13/16)
550(21-11/16)
69.5(2-3/4)
889.2(35)
1050(41-5/16)
640(25-3/16)
28.5(1-1/8)
4
2
1
3
TL
A
B
225(8-7/8)
126.5(5)
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
www.lgeaircon.com
CHASSIS CODE: TL

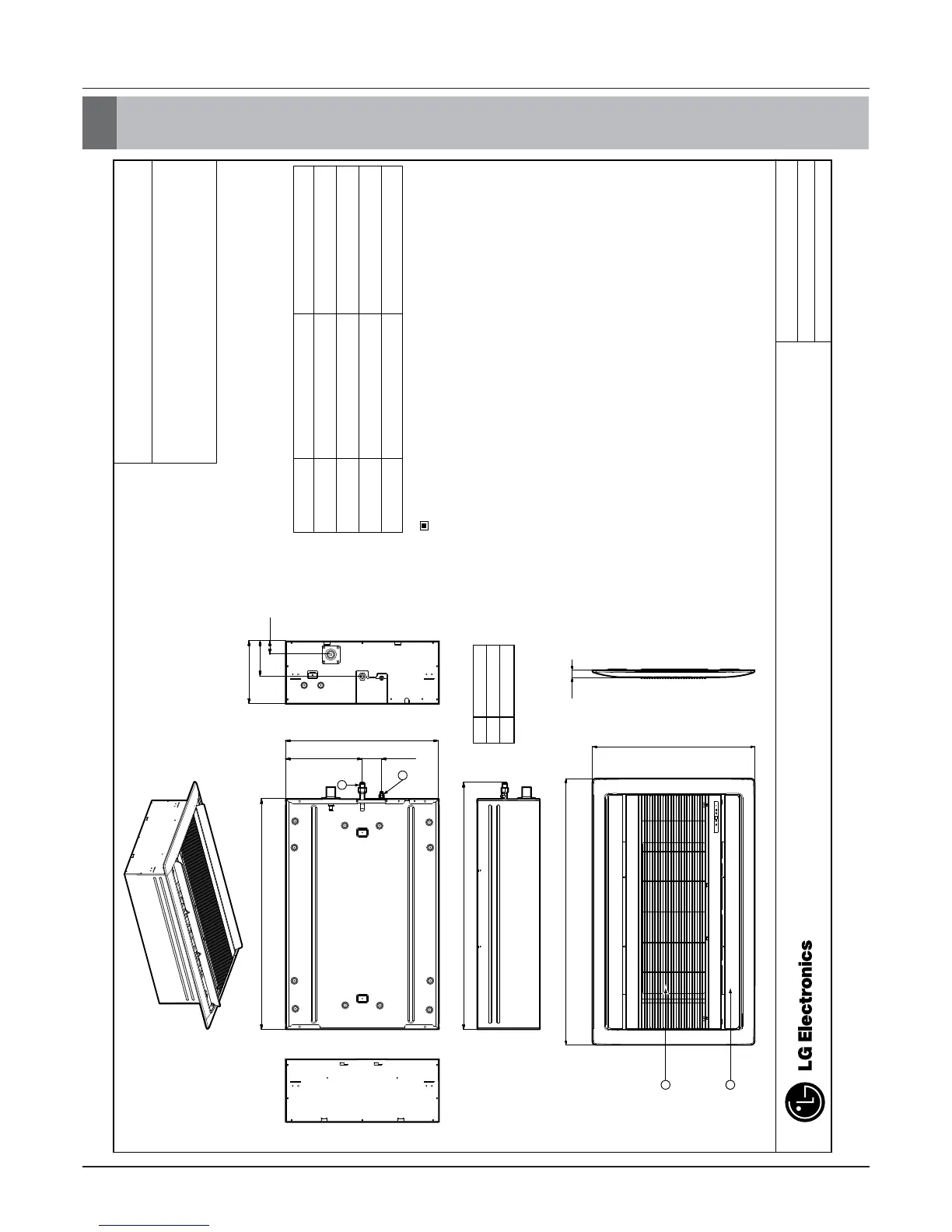

Ceiling Cassette 2-way
ARNU183TL*2
ARNU243TL*2
Name
1
Liquid pipe connection
(18k) ø6.35(1/4), (24k)ø9.52(3/8)
2
Gas pipe connection
(18k) ø12.7(1/2), (24k)ø15.88(5/8)
3
Air suction grill
4
Air discharge grill
Number Descripition
Note
1. Unit should be installed in compliance with the installation manual
in the product box.
2. Unit shall be grounded in accordance with the local regulations or
applicable national codes.
[Unit : mm(inch)]
LG Electronics USA, HVAC Division
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
www.lgusa.com / www.lghvac.com
To Next Page
