76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea

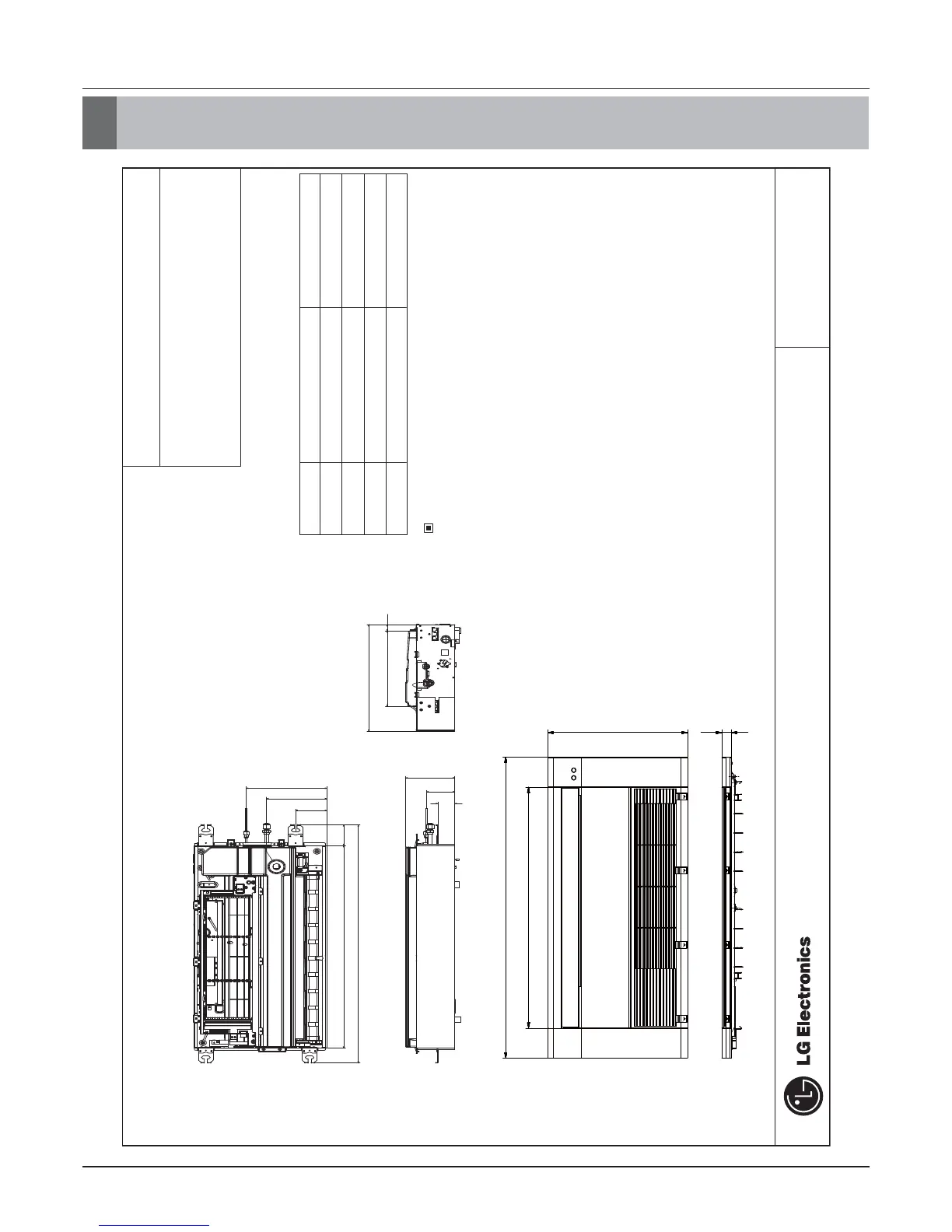

CHASSIS CODE: TU
Ceiling Cassette 1-way
ARNU07GTU*2
ARNU09GTU*2
ARNU12GTU*2
Name
1 Liquid pipe connection
Unit size(7k, 9k, 12k):ø6.35
2 Gas pipe connection
Unit size(7k, 9k, 12k):ø12.7
3 Air suction grill
4 Air discharge grill
Number Descripition
Note
1. Unit should be installed in compliance with the installation manual
in the product box.
2. Unit shall be grounded in accordance with the local regulations or
applicable national codes.
(unit : mm)
1,100
50034
881(Air outlet Hole)
168.3
106.8
206.6
275.8
96.5
57.4
453
27
320.5
1012
88
861
(Panel Name: PT-UUC)
