LG multi V ARUM Series User Manual

58 Outdoor Unit
Electrical Wiring
- Remove all of the screws at front panel and remove the panel by pulling it forward.
- Connect communication line between main and sub outdoor unit through
the terminal block.
- Connect communication lines between outdoor unit and indoor units
through the terminal block.
- When connecting communication line between outdoor unit and indoor
units with shielded wire, connect the shield ground to the earth screw.
Front Panel
UX3
UX2
Fan PCB
Noise filter
Bridge diode
Magnet switch
Inverter PCB
Take care of the phase
sequence of 3-phase 3-wire
power system
Take care of the phase
sequence of 3-phase 3-wire
power system
Reactor
Fan PCB
Noise filter
Bridge diode
Magnet switch
Inverter PCB
Transformer(460V only)
Reactor
Transformer(460V only)
Main PCB
SUB PCB
Main PCB
SUB PCB

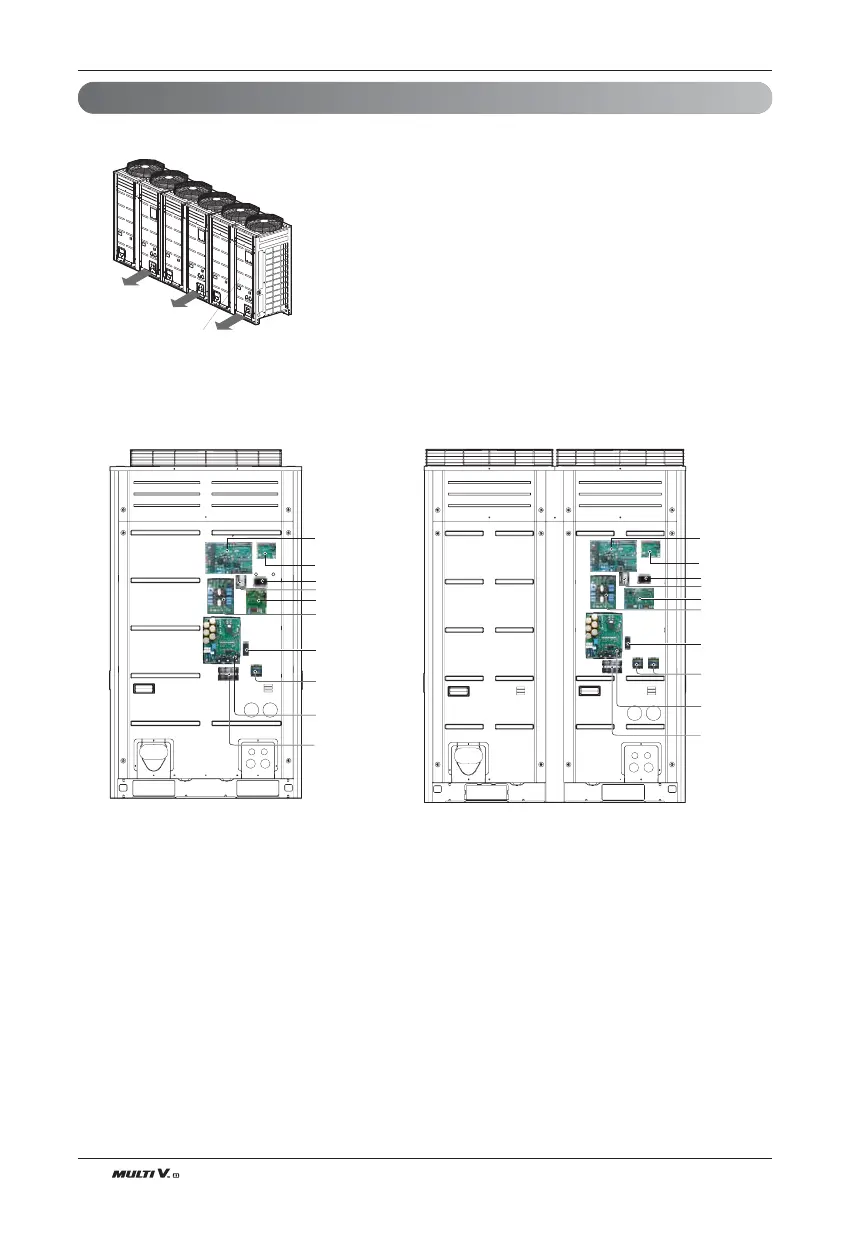

Control box and connecting position of wiring
