INSTALLATION SPACE
ENGLISH
Collective / Continuous Installation for roof top use

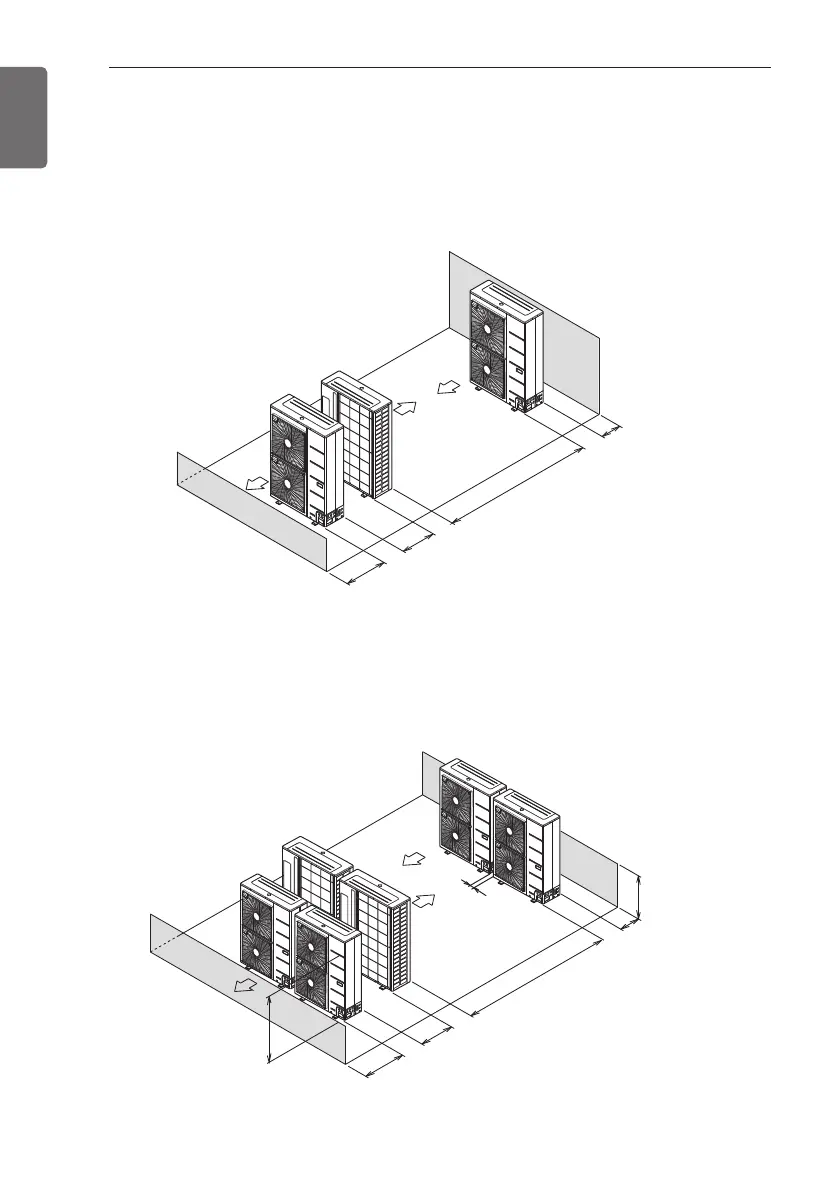

Space required for collective installation and continuous installation: When installing several units,
leave space between each block as shown below considering passage for air and people.
1. One row of stand alone installation
350 or
more
2,000 or
more
600 or
more
1,000 or
more
2. Rows of collective installation (2 or more)
• L should be smaller than H
L
350 or
more
3,000 or
more
H
600 or
more
1,500 or
more
100 or
more
L ≤ H
[Unit:mm]
