INSTALLATION
19
ENGLISH

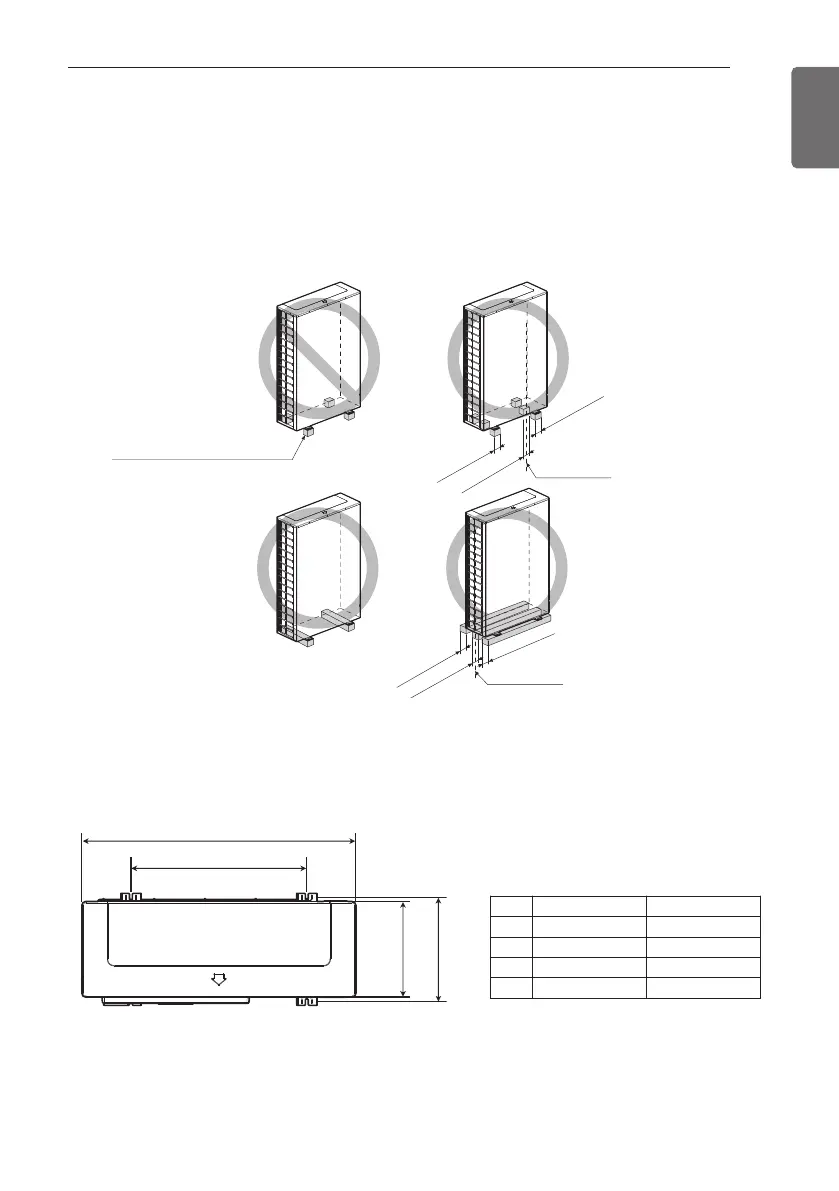

The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
• The outdoor unit supports at the bottom shall have width of at least 100mm under the Unit’s
legs before being fixed.
• The outdoor unit supports should have minimum height of 200mm.
• Anchor bolts must be inserted at least 75mm.
At least 100mm
At least 100m
m
At least 100m
m
At least 100mm
At least 100mm
At least 100mm
Center of the Unit
For outdoor units should not
be supported only by the
corner supports.
Center of the Unit
a
b
cd
8HP 10Hp/12HP
a 920 1,090
b 618 700
c 330 380
d 360 401
INSTALLATION
[Unit : mm]
