Installation Space
ENGLISH
Installation Manual 13

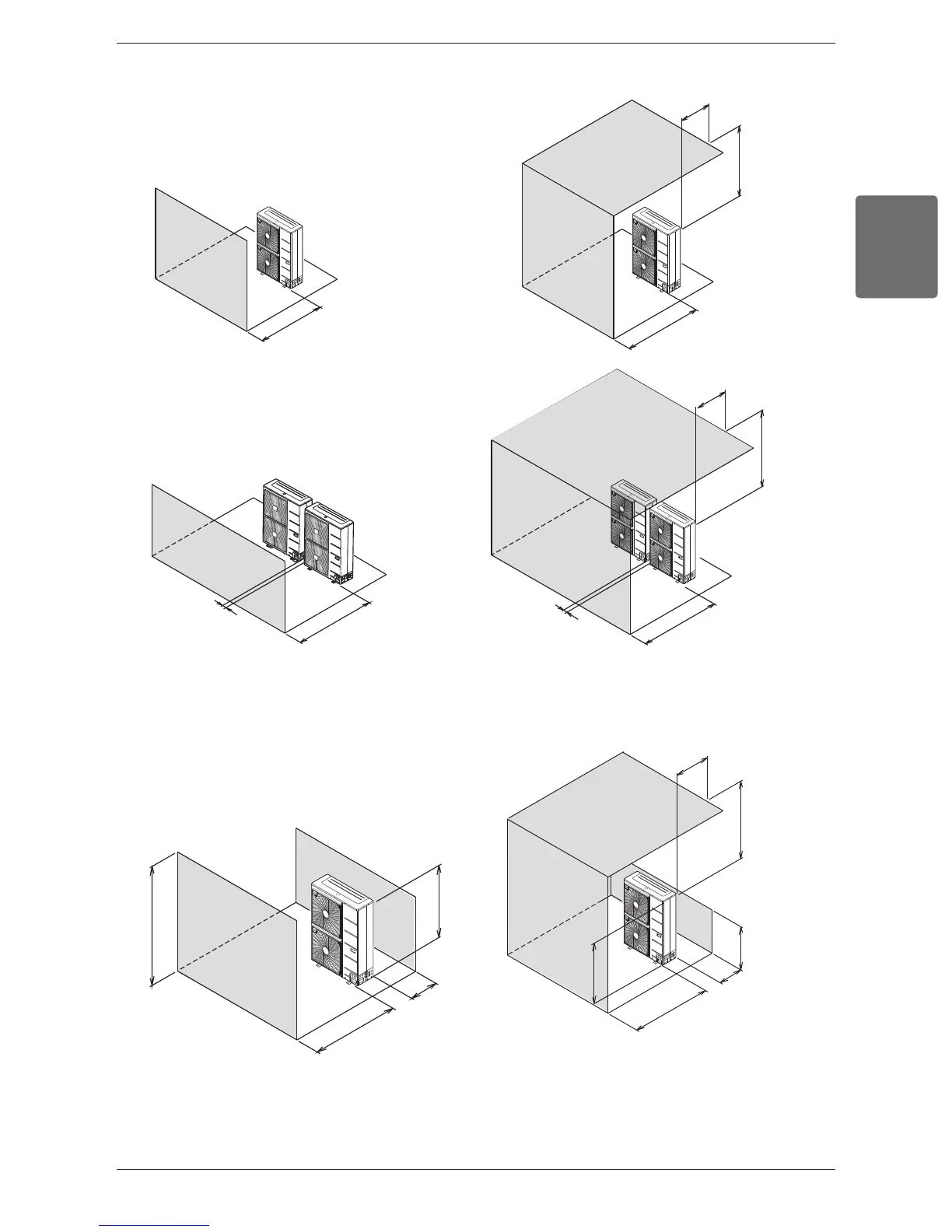

n In case of obstacles on the discharge side
1. Stand alone installation
2. Collective installation
500(19-5/8) or more
500(19-5/8)
or less
1000 (39-1/4)
or more
1000 (39-1/4)
or more
1000 (39-1/4)
or more
500(19-5/8) or more
1000 (39-1/4)
or more
1000 (39-1/4)
or more
H
L
L > HL > H
100(3-15/16)
or more
500(19-5/8)
or more
500(19-5/8) or less
L
H
250 (9-7/8)
or more
1000 (39-1/4)
or more
100(3-15/16)
or more
100(3-15/16)
or more
Unit:mm(inch)
Unit:mm(inch)
500(19-5/8) or less
n In case of obstacles on the suction and the discharge side
Ú Obstacle height of discharge side is higher than the unit
1. Stand alone installation
