46 Outside Unit

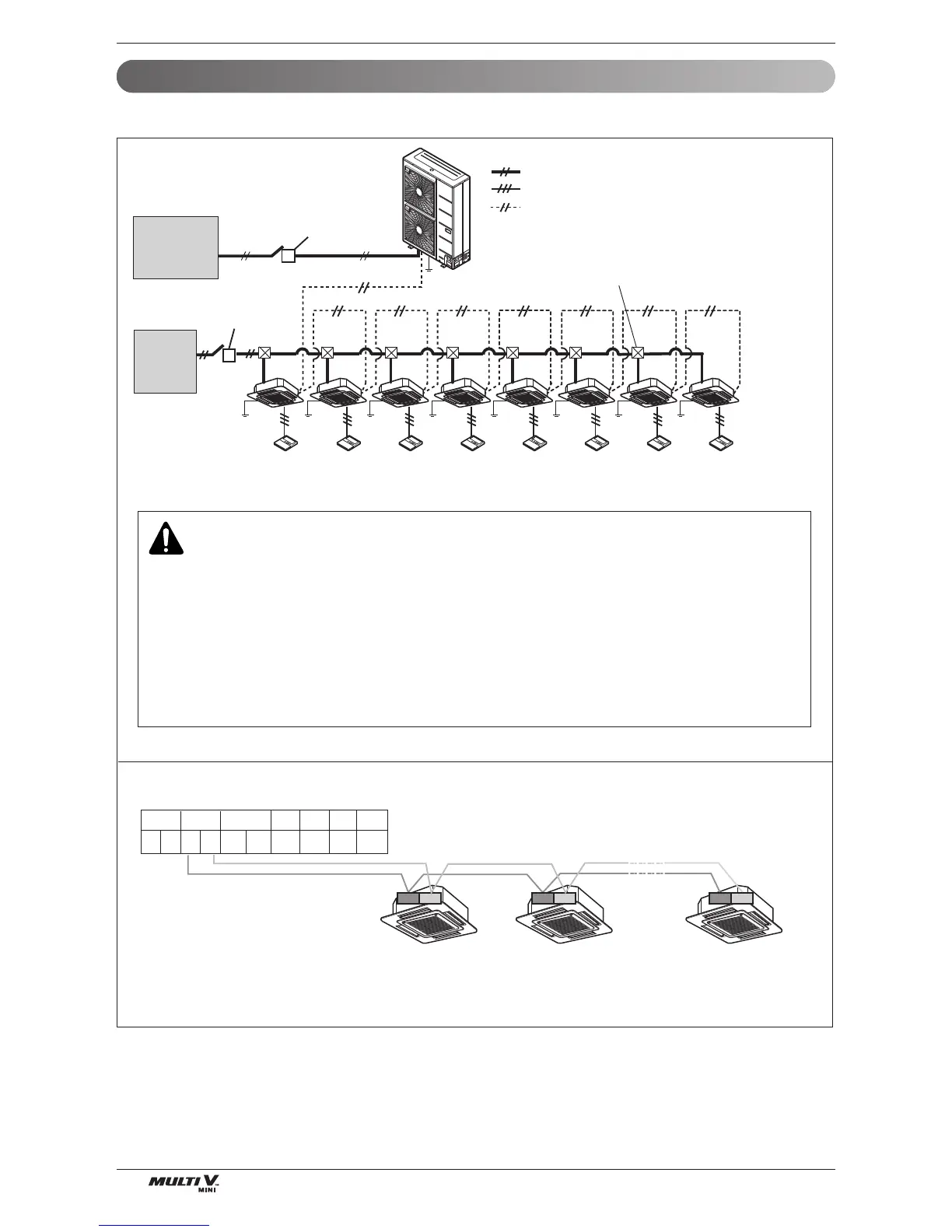

Electrical Wiring
The GND terminal is a '–' terminal for the central controller, not Ground Line
Power supply switch
(Switch fuse : ELCB)
Power supply switch
(Switch fuse)
(Main Switch)
Pull Box(Installer Option)
: Single phase of power supply line(L, N)
: Communication line (3 line): Wired remote control
: Communication line (2 shield line):
Between Indoor Unit and Outdoor Unit
Single Phase 3wires
(L1,L2,GND)
Power supply
208/230V, 60Hz
Power supply
1 Phase
208/230V, 60Hz
3 4 34
Between Indoor and Outdoor unit (U3 Chassis, 2 Fan Model)
IDUSODU DRY1 DRY2 GND
INTERNET
BA
12V
BABA
34
1. 60Hz
WARNING
• Indoor Unit ground Lines are required for preventing electrical shock accident during current leakage,
Communication disorder by noise effect and motor current leakage (without connection to pipe).
• Don't install an individual switch or electrical outlet to disconnect each of indoor unit separately from the
power supply.
• Install the main switch that can interrupt all the power sources in an integrated manner because this system
consists of the equipment utilizing the multiple power sources.
• If there exists the possibility of reversed phase, lose phase, momentary blackout or the power goes on and off
while the product is operating, attach a reversed phase protection circuit locally.
Running the product in reversed phase may break the compressor and other parts.
Example Connection of Communication Cable
To Next Page
