PRODUCT DATA
|
17
HEAT PUMP CONDENSING UNIT ENGINEERING MANUAL
Due to our policy of continuous product innovation, some specifications may change without notification.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL DATA
Indoor Units

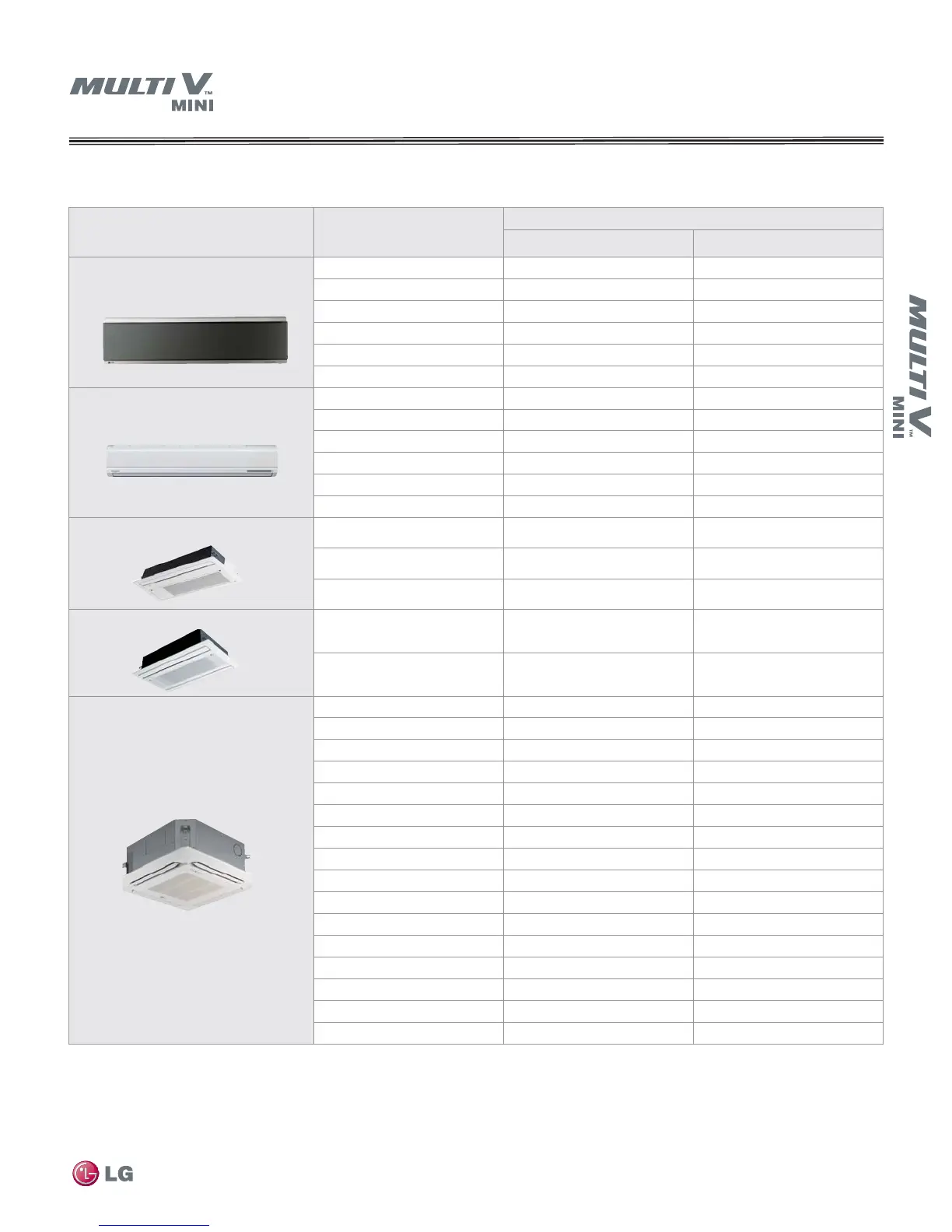

Table 4a: Summary Data—Wall and Ceiling Flush Mounted Indoor Units
Unit
Capacity &
Chassis Code
Nominal Capacity Btu/h
Total Cooling Heating
Wall Mount – ART COOL
TM
Mirror
07 SE 7,500 8,500
09 SE 9,600 10,900
12 SE 12,300 13,600
15 SE 15,400 17,100
18 S8 19,100 21,500
24 S8 24,200 27,300
Wall Mounted – Standard Finish
07 SE 7,500 8,500
09 SE 9,600 10,900
12 SE 12,300 13,600
15 SE 15,400 17,100
18 S5 19,100 21,500
24 S5 24,200 27,300
Ceiling Cassette – 1 Way
07 TJ 7,500 8,500
09 TJ 9,600 10,900
12 TJ 12,300 13,600
Ceiling Cassette – 2 Way
18 TL 19,100 21,500
24 TL 24,200 27,300
Ceiling Cassette – 4 Way
05 TR 5,500 6,100
07 TR 7,500 8,500
09 TN 9,600 10,900
09 TR 9,600 10,900
12 TN 12,300 13,600
12 TR 12,300 13,600
15 TN 15,400 17,100
15 TQ 15,400 17,100
18 TM 19,100 21,500
18 TQ 19,100 21,500
24 TM 24,200 27,300
24 TP 24,200 27,300
28 TP 28,000 31,500
36 TN 36,200 40,600
42 TM 42,000 43,800
48 TM 48,100 51,200
Airfl ow data is presented with fan speed set at the factory setting.
All indoor units are 208–230V/60Hz/1Ph.
Reference LG’s Multi V Indoor Unit Engineering Manual for more detailed engineering data.
Model # shows nominal capacity (MBh) and frame size designator.
TQ and TR = small frame chassis’
TN, TM, and TP = large frame
chassis’
