GENERAL DATA
Indoor Units

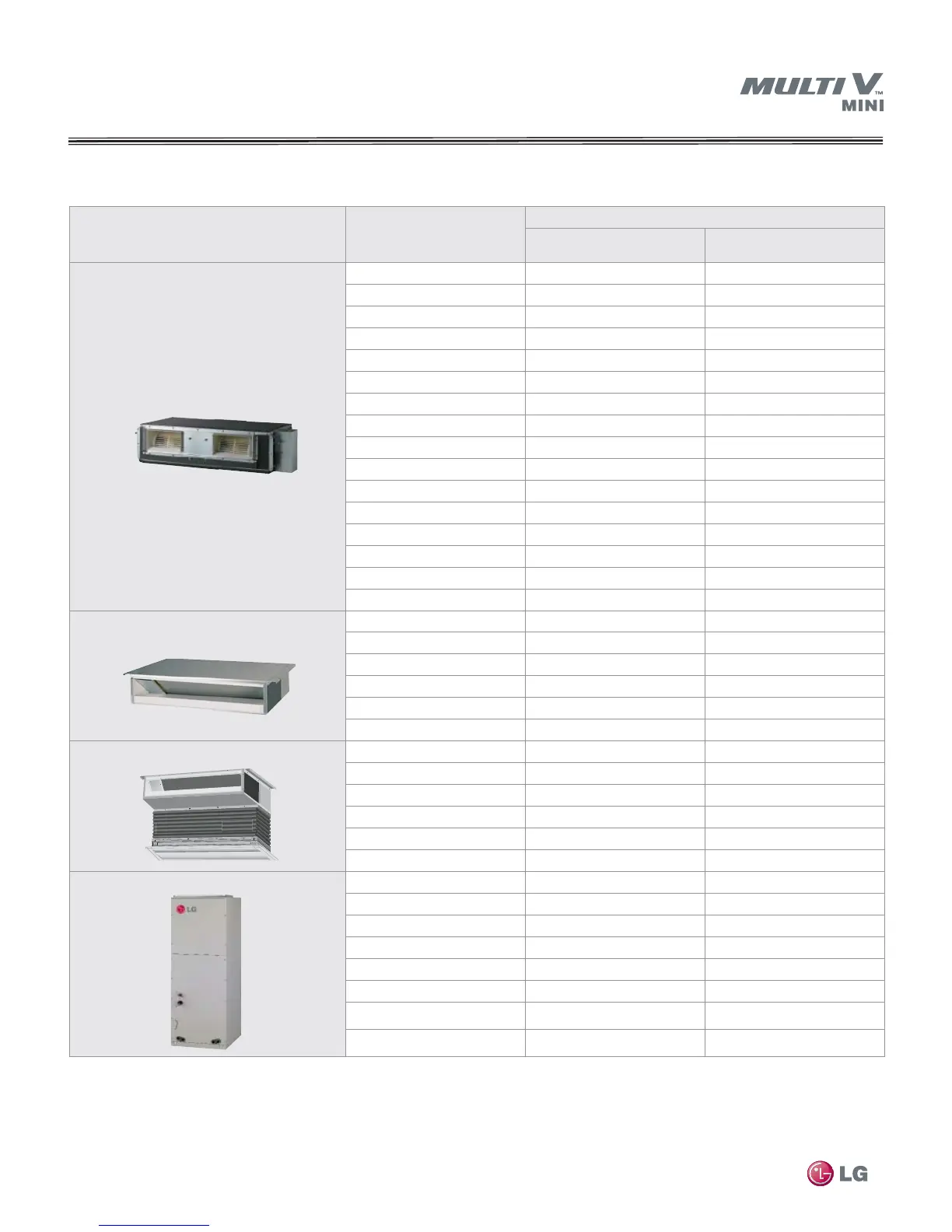

Table 4b: Summary Data—Ducted Indoor Units
Unit
Capacity &
Chassis Code
Nominal Capacity Btu/h
Total Cooling Heating
Ducted High Static
07 BH 7,500 8,500
09 BH 9,600 10,900
12 BH 12,300 13,600
15 BG 15,400 17,100
15 BH 15,400 17,100
18 BG 19,100 21,500
18 BH 19,100 21,500
24 BG 24,200 27,300
24 BH 24,200 27,300
28 BG 28,000 31,500
36 BG 36,200 40,600
42 BG 42,000 43,800
48 BR 48,100 51,200
54 BR 54,000 61,400
76 B8 76,400 86,000
96 B8 95,500 107,500
Ducted Low Static – Slim Convertible
07 B1 7,500 8,500
09 B1 9,600 10,900
12 B1 12,300 13,600
15 B1 15,400 17,100
18 B2 19,100 21,500
24 B2 24,200 27,300
Ducted Low Static – Slim Bottom Return
07 B3 7,500 8,500
09 B3 9,600 10,900
12 B3 12,300 13,600
15 B3 15,400 17,100
18 B4 19,100 21,500
24 B4 24,200 27,300
Vertical Air Handler
12 NJ 12,000 13,500
18 NJ 18,000 20,000
24 NJ 24,000 27,000
30 NJ 30,000 34,000
36 NJ 36,000 40,000
42 NK 42,000 46,000
48 NK 48,000 54,000
54 NK 54,000 60,000
1. External static pressure may be increased to 1.0 in. However,
there is a 3% reduction in airflow for every 0.1 in. additional air
pressure drop.
2. Maximum static pressure settings may result in sound levels
different from rated conditions published in the Indoor Unit
Engineering Manual.
All indoor units are 208–230V/60Hz/1Ph.
Airfl ow data is presented with fan speedset at factory setting.
Reference LG’s Multi V Indoor Unit Engineering Manual for
more detailed engineering data.
Model # shows nominal capacity (MBh) and chassis size
designator.
