Items
pH(25°C)
Conductivity[25°C](mS/m)
Chlorine ion(mg CI
-
/l)
Sulfuric acid ion(mg SO
2
-
/l)
Acid demand[pH 4.8] (mg SiO
2/l)
Total hardness(mg SiO
2/l)
Ca hardness(mg CaCO
3/l)
Ion silica(mg SiO
2/l)
Fe(mg Fe/l)
Copper(mg Cu/l)
Sulfuric acid ion(mg S
2
/l)
Ammonium ion(mg NH
4/l)
Residual chlorine(mg Cl/l)
Free carbon dioxide(mg CO
2/l)
Stability index
7.0~8.0
Below 30
Below 50
Below 50
Below 50
Below 70
Below 50
Below 30
Below 1.0
Below 1.0
Must not be detected
Below 0.3
Below 0.25
Below 0.4
-
Below 0.3
Below 0.1
Must not be detected
Below 0.1
Below 0.3
Below 4.0
-
7.0 ~8 .0
Below 30
Below 50
Below 50
Below 50
Below 70
Below 50
Below 30
O
O
O
O
-
-
-
-
O
O
O
O
O
O
O
O
-
-
-
-
-
O
O
O
-
O
O
O
O
O
Closed type
Basic Item
Reference Item
Effect
Circulating water Supplemented water Corrosion Scale
4
+
Reference
• The "O" mark for corrosion and scale means that there is
possibility of occurrence.
• When the water temperature is 40 °C (104 °F) or above or when
uncoated iron is exposed to the water, it can result in corrosion.
Therefore adding anti-corrosion agent or removing the air can be
very effective.
• In case of using the closed type cooling tower, the cooling water
and supplementing water must satisfy the water quality criteria
of closed type system in the table.
• Supplementing water and supplied water must be supplied with
tap water, industrial water and underground water excluding
filtered water, neutral water, soft water etc.
• 15 items in the table are general causes of corrosion and scale.
Sub line
40° or less
Rope supporter
A
A
B
B
The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise
of the outdoor unit .
• The outdoor unit supports at the bottom shall have width of at least
100 mm (3-15/16 inch) under the Unit’s legs before being fixed.
• The outdoor unit supports should have minimum height of 200 mm
(7-7/8 inch).
• Anchor bolts must be inserted at least 75 mm(2-15/16 inch).
At least 100 mm
(3-15/16 inch)
At least 100 mm
(3-15/16 inch)
At least 100 mm
(3-15/16 inch)
At least 100 mm
(3-15/16 inch)

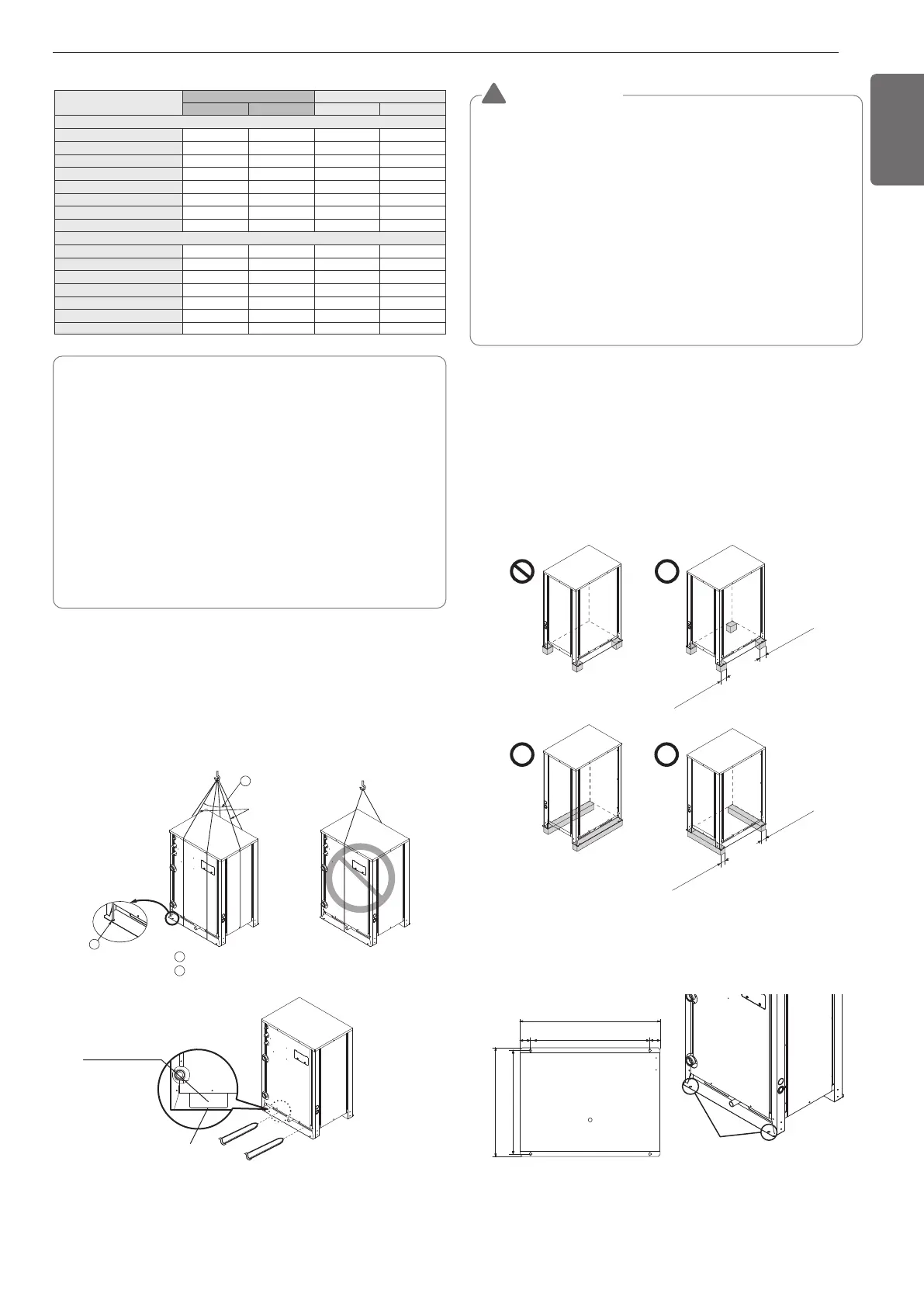

INSTALLATION
LIFTING METHOD
- When carrying the unit suspended, pass the ropes under the unit and
use the two suspension points each at the front and rear.
- Always lift the unit with ropes attached at fours points so that impact
is not applied to the unit.
- Attach the ropes to the unit at an angle of 40° or less
CAUTION
!
Be very careful while carrying the product.
• Do not have only one person carry product if it is more than 20
kg (44 lbs).
• PP bands are used to pack some products. Do not use them as a
mean for transportation because they are dangerous.
• Tear plastic packaging bag and scrap it so that children cannot
play with it. Otherwise plastic packaging bag may suffocate
children to death.
• When carrying in Outdoor Unit, be sure to support it at four
points. Carrying in and lifting with 3-point support may make
Outdoor Unit unstable, resulting in a fall.
• Use 2 belts of at least 8 m (26.2 ft) long.
• Place extra cloth or boards in the locations where the casing
comes in contact with the sling to prevent damage.
• Hoist the unit making sure it is being lifted at its center of gravity.
Forklift Carrying Hole
Forklift Carrying Guide
The location of
anchor bolt
56(2-7/32)
56(2-7/32)
663(26-3/32)
775(30-1/2)
[Unit: mm(inch)]
600(23-5/8)
577(22-23/32)
To Next Page
