LG Multi V PRHR041 - Dimensions

Dimensions
- 5 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

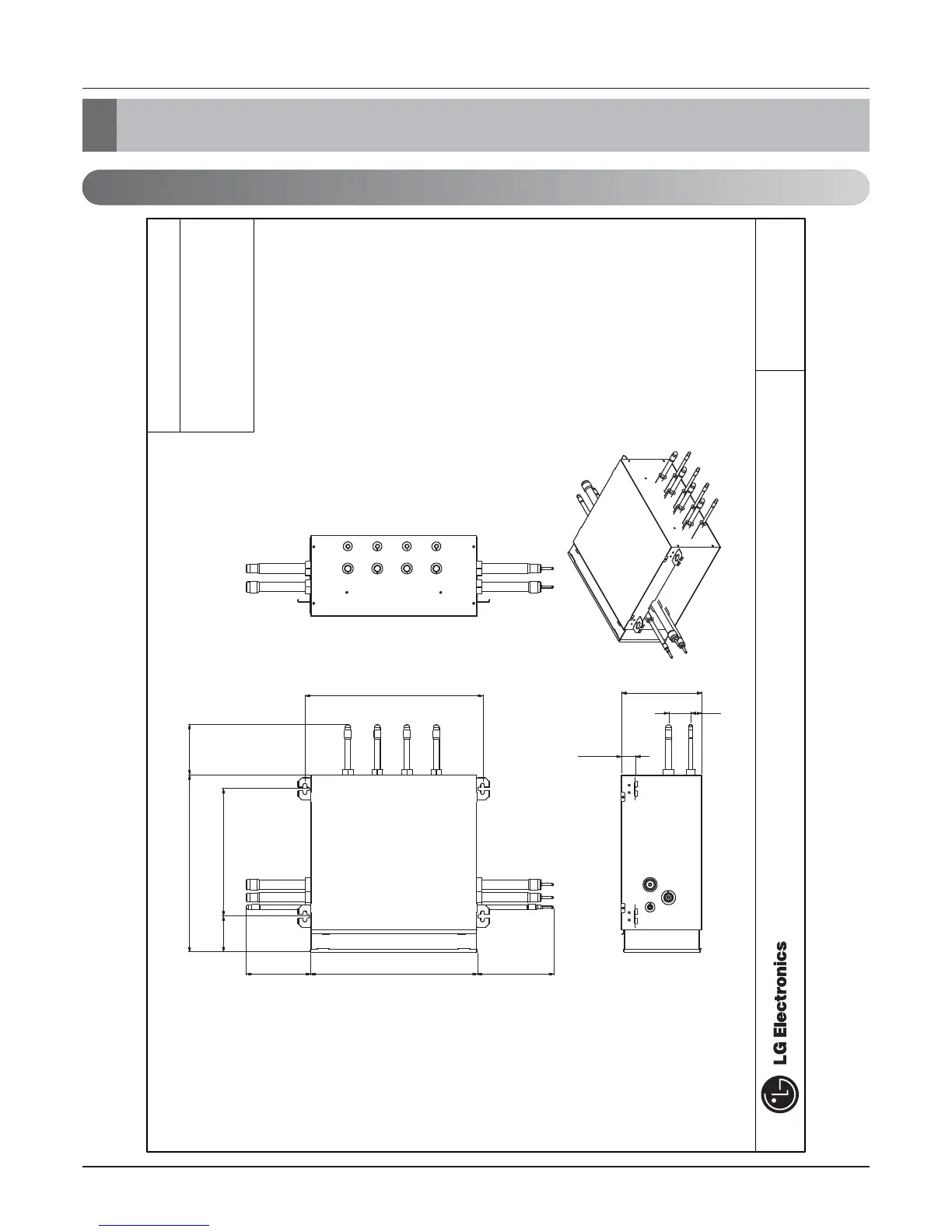

3.1 HR Units
480(18-29/32)
137(5-13/32)
345(13-19/32)
481(18-15/16)
218(8-19/32)
38(1-1/2)
60(2-3/8)30(1-3/16)
174(6-27/32)
453(17-27/32)204(8-1/32)
98(3-27/32)
CHASSIS CODE:
Outdoor Unit
PRHR041/PRHR041A PRHR031/PRHR031A PRHR021/PRHR021A
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
3. Dimensions
