Installation Manual 71

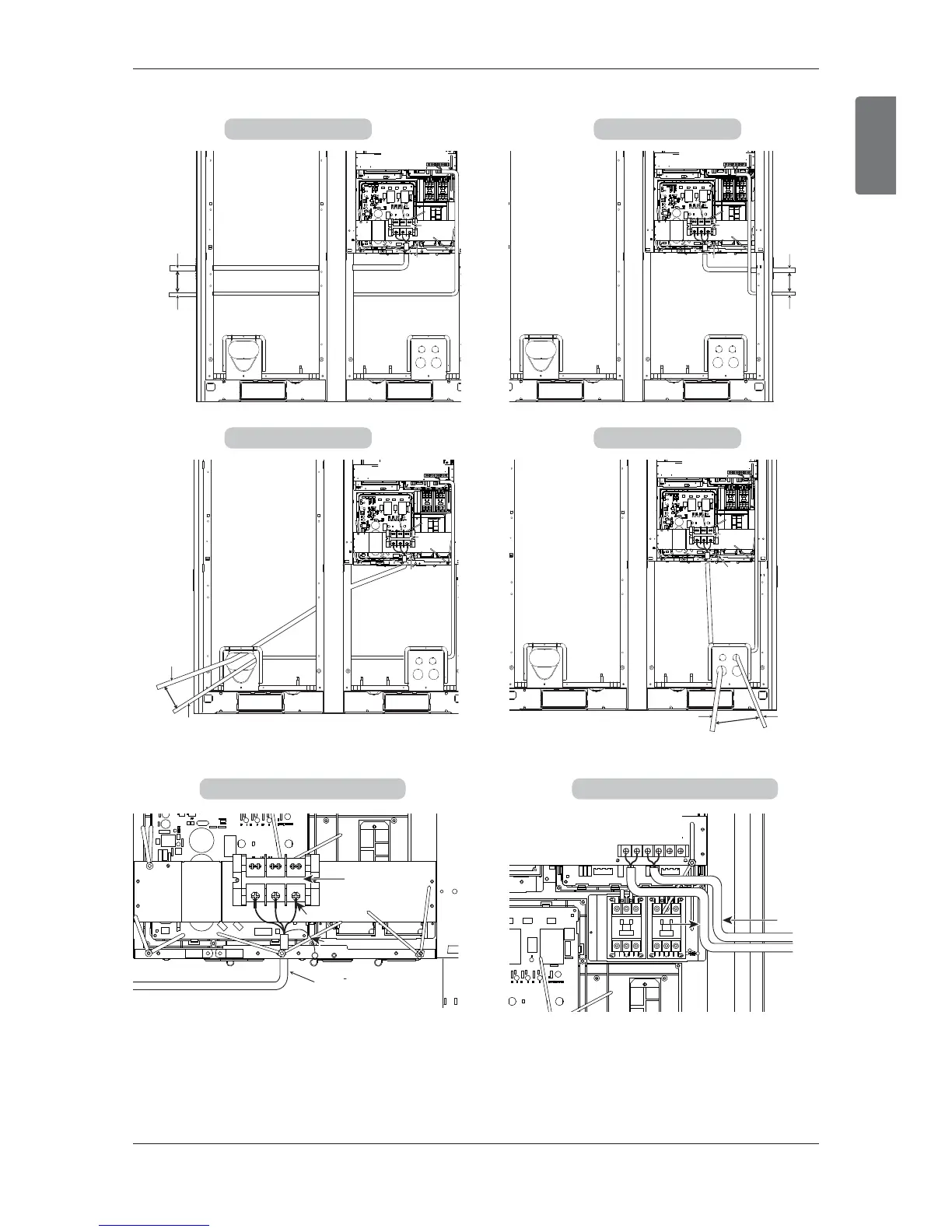

Electrical Wiring
Main Power Main Power
Terminal BlockTerminal Block
Main Power
Terminal Block
Ground Cable
Power/Ground lines
Over 50mm Gap
Communication line
Main Power
Terminal Block
Left Side
Main Power
Terminal Block
Main Power Main Power
Terminal BlockTerminal Block
Main Power
Terminal Block
Ground Cable
Power/Ground lines
Over 50mm Gap
Communication line
Right Side
Main Power Main Power
Terminal BlockTerminal Block
Main Power
Terminal Block
Ground Cable
Power/Ground lines
Over
50mm Gap
Communication line
Main Power
Terminal Block
Front Side 1
Insulation sleeves attachmentsInsulation sleeves attachmentsInsulation sleeves attachments
Ground Cable
Ground CableGround Cable
Fix firmly not
to be displaced
Main Power Terminal Block
Main Power Terminal BlockMain Power Terminal Block
ODU-ODU
Communication line
Insulation sleeves attachments
Ground Cable
Main Power Terminal Block
ODU-ODUODU-ODU
Communication lineCommunication line
ODU-ODU
Communication line
ODU-IDU
Communication
line
Main Power
Terminal Block
Main Power Main Power
Terminal BlockTerminal Block
Main Power
Terminal Block
Ground Cable
Power/Ground lines
Over 50mm Gap
Communication line
Front Side 2
Main PCB ConnectionMain Power Connection
u UX3 Chassis Wire Connection (3Ø, 208/230V)
