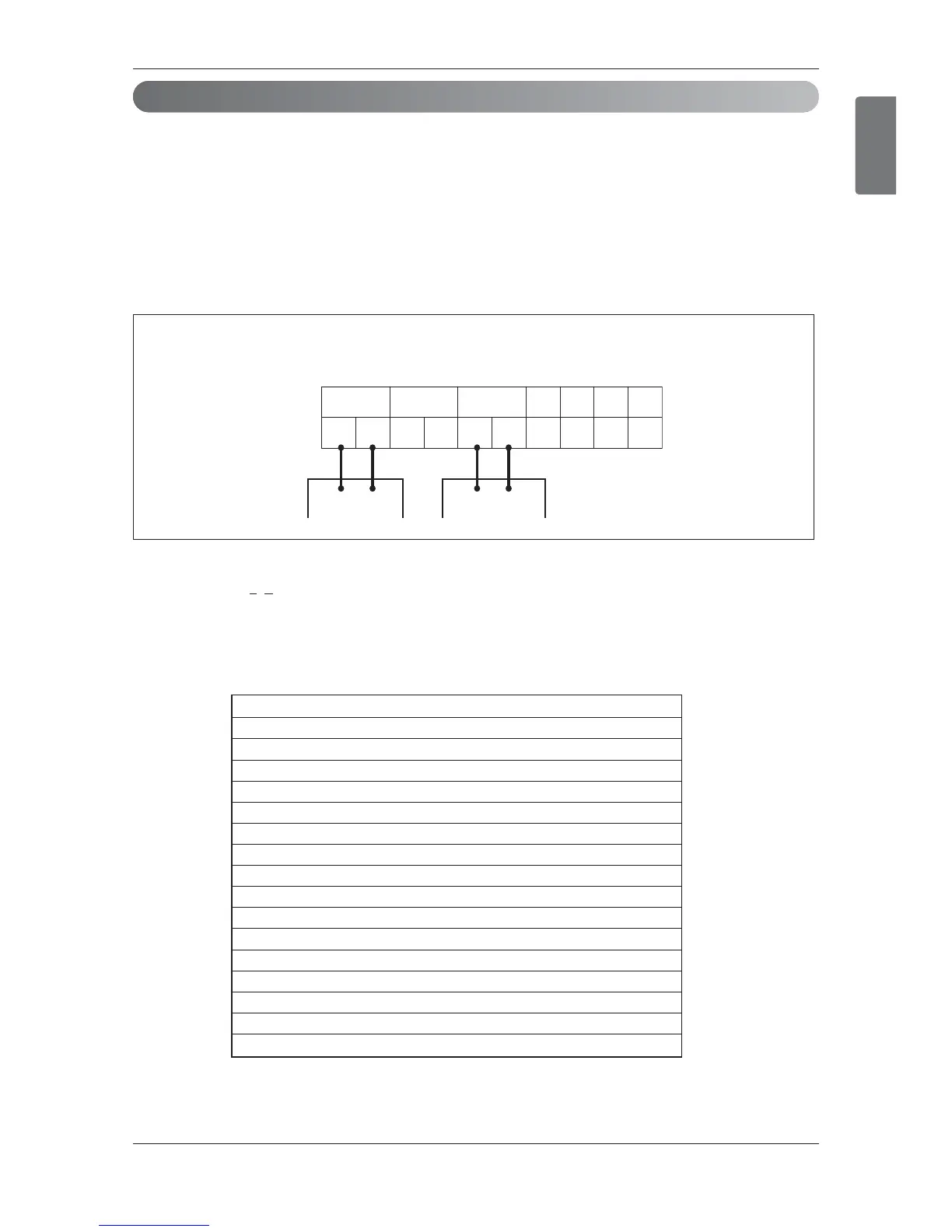

Electrical Wiring
Group Number setting
Group Number setting for Indoor Units
① Confirm the power of whole system(Indoor Unit, Outdoor Unit) is OFF, otherwise turn off.
② The transmission lines connected to INTERNET terminal should be connected to central control of Outdoor
Unti with care for their polarity( A ’ A, B ’ B )
③ Turn the whole system on.
④ Set the group and Indoor Unit number with a wired remote control.
⑤ To control several sets of Indoor Units into a group, set the group ID from 0 to F for this purpose.
Example) Group number setting
1
st
number indicate the group number
2
nd
number point out indoor unit number
[Heat Pump]
B(D) A(C) BA
B
SODU IDU INTERNET DRY1 DRY2 GND 12V
AB
A
BA
Group recognizing the simple central controller
No.0 group (00~0F)
No.1 group (10~1F)
No.2 group (20~2F)
No.3 group (30~3F)
No.4 group (40~4F)
No.5 group (50~5F)
No.6 group (60~6F)
No.7 group (70~7F)
No.8 group (80~8F)
No.9 group (90~9F)
No. A group (A0~AF)
No. B group (B0~BF)
No. C group (C0~CF)
No. D group (D0~DF)
No. E group (E0~EF)
No. F group (F0~FF)
Outdoor Units
1 F
Indoor unitGroup

LG Multi V Specifications

General

Type	VRF (Variable Refrigerant Flow)
Compressor Type	Scroll
Refrigerant	R410A
Energy Efficiency	High
Control System	Centralized and individual control options
Indoor Units	Multiple types available (e.g., ceiling cassette, wall-mounted, ducted)
