SELECT THE INSTALLATION LOCATIONS
Location for Installing Indoor
Unit
• Where there is no obstacle near the air outlet
andair can be easily blown to every corner.
• Where piping and wall hole can be easily
arranged.
• Keep the required space from the unit to the
ceiling and wall according to the installation
diagram on previous page.
• Where the air filter can be easily removed.
• Keep the unit and remote controller 1m or more
apart from television, radio etc.
• Keep as far as possible from fluorescent lamps.
• Do not put anything near the air inlet to obstruct it
from air absorption.
• Install on a wall that is strong enough to bear the
weight of the unit.
• Install in a place that will not increase operation
noise and vibration.
• Keep away from direct sunlight and heating
sources.
• Do not place flammable materials or combustion
apparatuses on top of the unit.

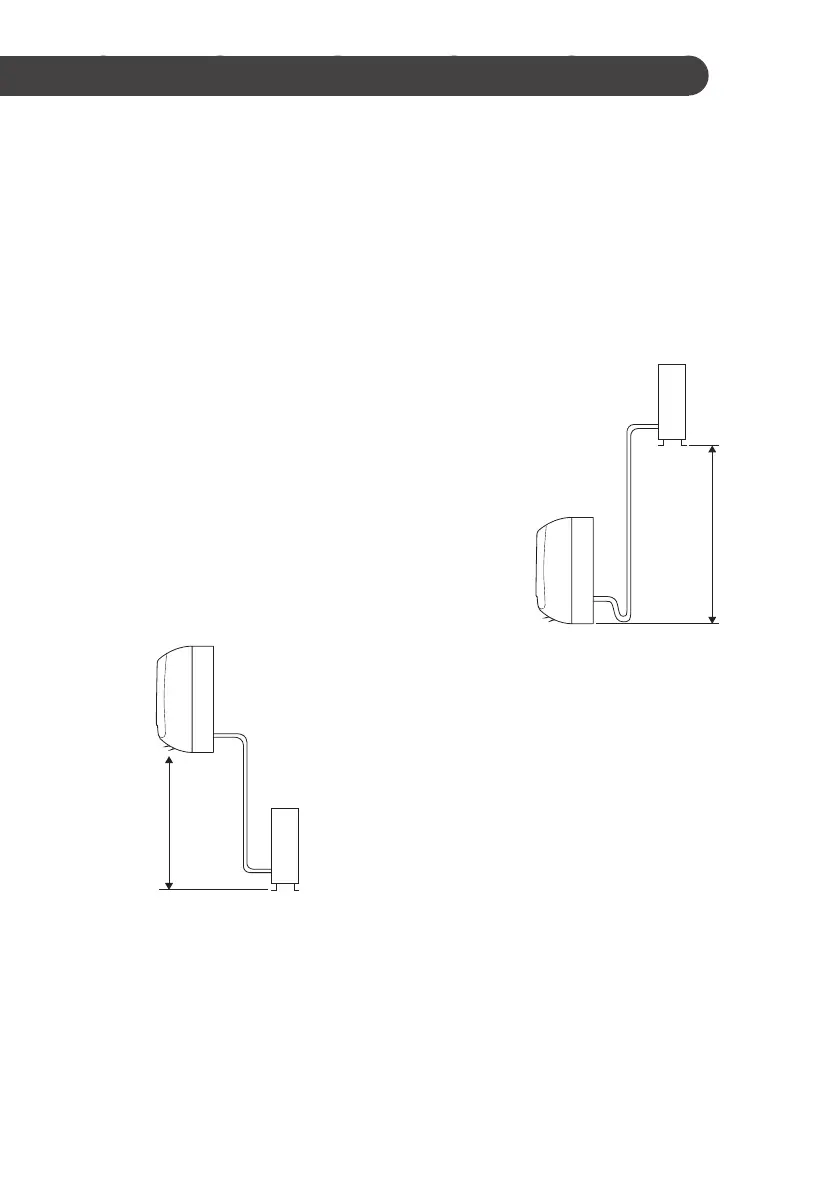

Indoor unit
Outdoor unit
Pipe length is
15 meters Max.
Height should be
less than 5 m
Location for Installing
Outdoor Unit
• Where it is convenient to install and well
ventilated.
• Avoid installing it where flammable gas could leak.
• Keep the required distance apart from the wall.
• The pipe length between indoor and outdoor
unit should be not more than 5 meters in factory
default status, but it can go up to maximum 15
meters with additional refrigerant charge.
Indoor unit
Outdoor unit
Pipe length is
15 meters Max.
Height should be
less than 5 m
• Keep the outdoor unit away from greasy dirt,
vulcanization gas exit.
• Avoid installing it by the roadside where there is a
risk of muddy water.
• A fixed base where it is not subject to increased
operation noise.
• Where there is not any blockage of the air outlet.
• Avoid installing under direct sunlight, in an aisle or
sideway, or near heat sources and ventilation fans.
• Keep away from flammable materials, thick oil fog,
and wet or uneven places.
