10
EN

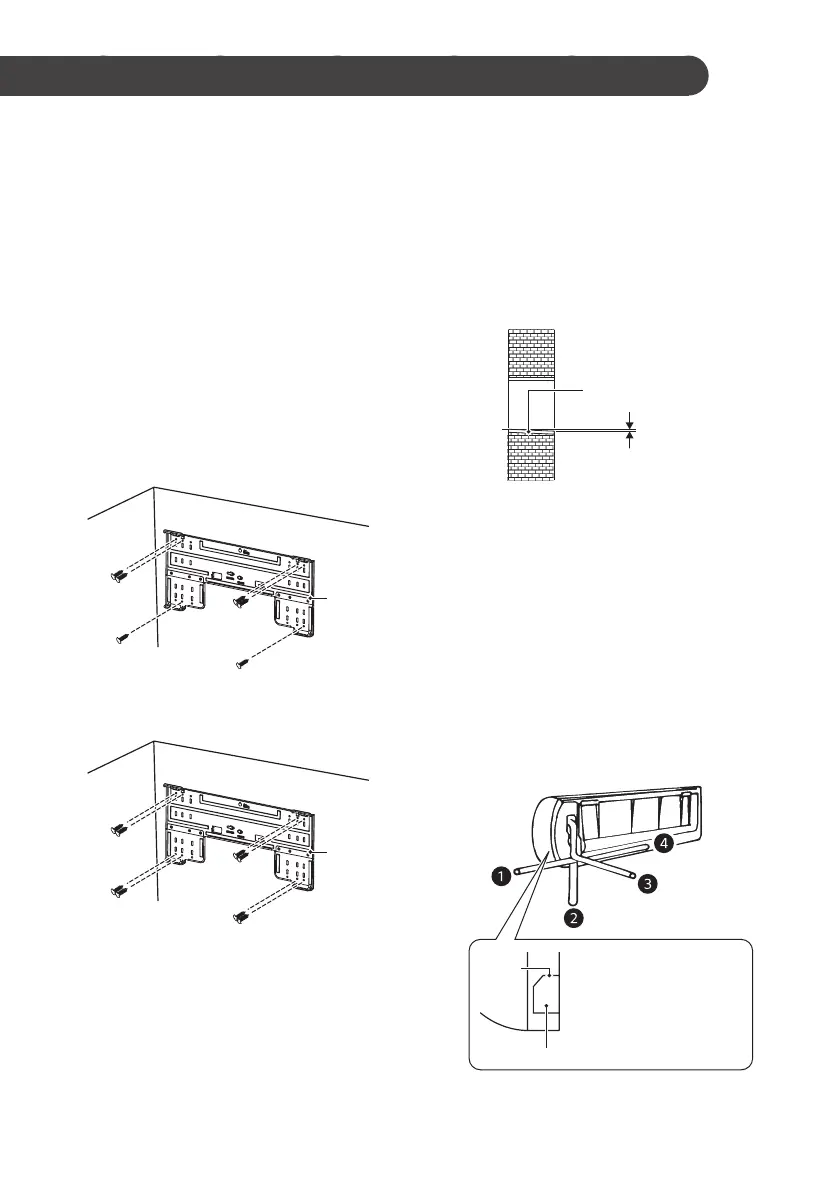

INDOOR UNIT INSTALLATION
Installing the Mounting Plate
1
Decide an installing location for the mounting
plate according to the indoor unit location and
pipe direction.
2
Keep the mounting plate horizontally with a
horizontal ruler or level.
3
Drill holes of 32 mm in depth on the wall for
fixing the plate.
4
Insert the plastic plugs to the hole, fix the
mounting plate with tapping screws.
5
Inspect if the mounting plate is well fixed. Then
drill a hole for pipe.
Concrete / Brick Wall
Tapping screw
(4.2 x 50 mm)
Mounting
plate
Wooden Wall
Tapping screw
(4.2 x 25 mm)
Mounting
plate
NOTE
• The shape of your mounting plate may be different
from the one above, but the installation method is
similar.
• As the above figure shown, the six holes matched
with tapping screw on the mounting plate must
be used to fix the mounting plate, the others are
prepared.
Drill a Hole for Pipe
1
Decide the position of hole for pipe according to
the location of mounting plate.
2
Drill a hole on the wall about 50 mm. The hole
should tilt a littledownward toward outside.
3
Install a sleeve through the wall hole to keep the
wall tidy and clean.
5 mm
(tilt downward)
Indoor
Outdoor
Wall hole sleeve
(hard polythene tube
prepared by user)
Indoor Unit Pipe Installation
1
Put the pipes (liquid and gas pipe) and cables
through the wall hole from outside or put them
through from inside after indoor pipe and cables
connection complete so as to connect to outdoor
unit.
2
Decide whether saw the unloading piece off in
accordance with the pipe direction. (as shown
below)
Pipe direction
Cut off the Knock-down
panel along the trough
using needle nose pliers
or other suitable tool.
Trough
Knock-down panel
NOTE
• When installing the pipe at the directions 1, 2 or
4, saw the corresponding unloading piece off the
indoor unit base.
To Next Page
