I0 G_ffin 9 Sf_fed
©
g

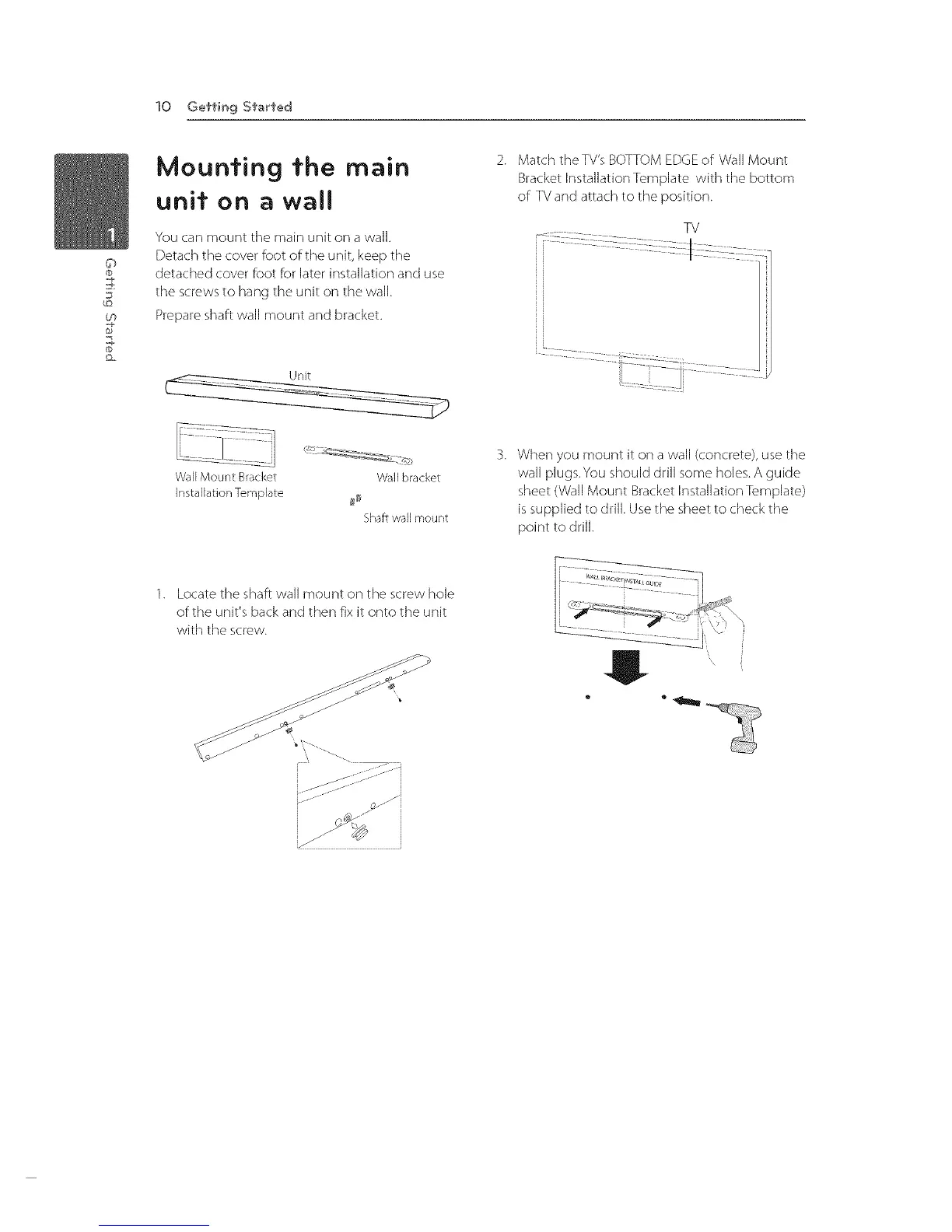

Mounting fhe main
unit on a wall
You can mount the main unit on a wall.
Detach the cover foot of the unit, keep the
detached cover foot for later installation and use
the screws to hang the unit on the wall.
Prepare shaft wall mount and bracket.
Unit
Match theTV's BOTTOM EDGE of Wall Mount
Bracket Installation Template with the bottom
of TV and attach to the position.
TV
Wall Mount Bracket Wall bracket
Installation Template ¢_
Shaft wall mount
When you mount it on a wall (concrete), use the
wall plugs.You should drill some holes. A guide
sheet (Wall Mount Bracket InstallationTemplate)
is supplied to drill. Use the sheet to check the
point to drill.
Locate the shaft wall mount on the screw hole
of the unit's back and then fix it onto the unit
with the screw.
To Next Page
