LG OM7550 Service Manual

LG OM7550
89 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #71 background imageLoading...
Page #71 background image
3-59 3-60

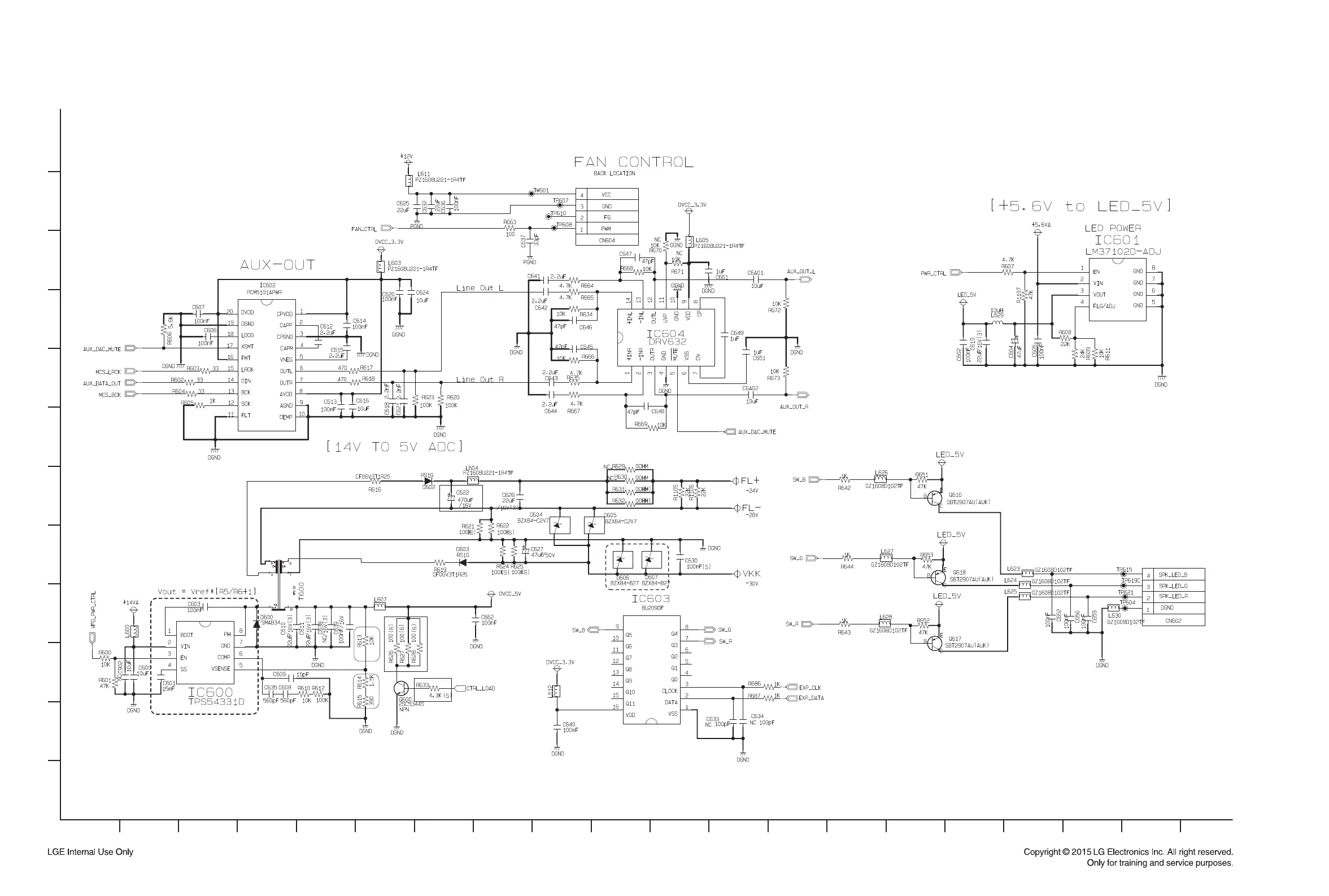

7. MAIN_AUX OUT/ VFD PWR CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MAIN_AUX OUT/ VFD
EAX66487701-SD(#05)_Rev1.5_12
2015. 07. 29
